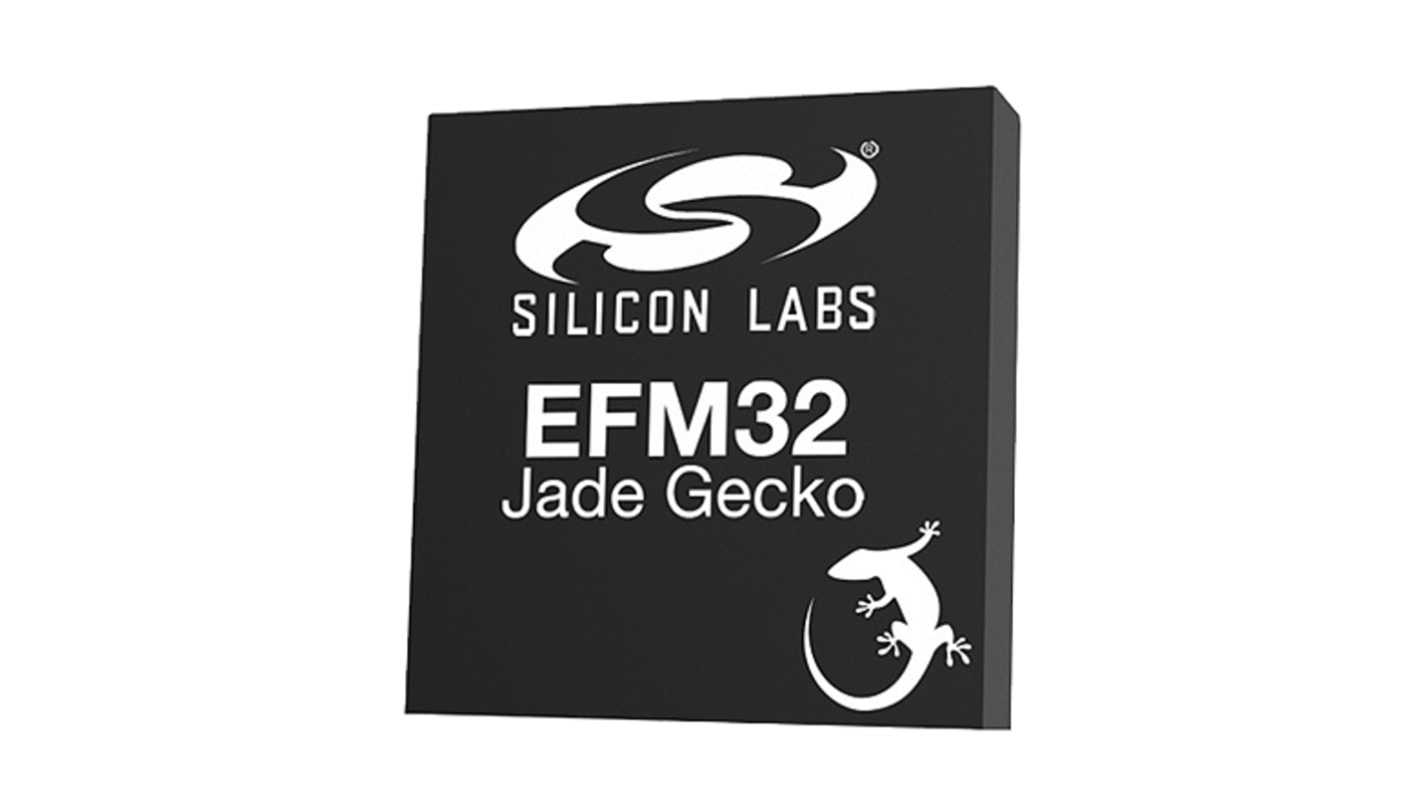

Silicon Labs EFM32JG1B200F256GM48-B0, 32bit ARM Cortex M3 Microcontroller, EFM32J, 40MHz, 256 kB Flash, 48-Pin QFN
- RS Stock No.:
- 922-4804
- Mfr. Part No.:
- EFM32JG1B200F256GM48-B0
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 922-4804
- Mfr. Part No.:
- EFM32JG1B200F256GM48-B0
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | EFM32J | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 256 kB | |
| Maximum Frequency | 40MHz | |
| RAM Size | 32 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 3.3 V | |
| ADCs | 1 (24 x 12 bit) | |
| Height | 0.85mm | |
| Width | 7.1mm | |
| Data Rate | 1Mbps | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| Maximum Number of Ethernet Channels | 0 | |
| Dimensions | 7.1 x 7.1 x 0.85mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Length | 7.1mm | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name EFM32J | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 256 kB | ||
Maximum Frequency 40MHz | ||
RAM Size 32 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 3.3 V | ||
ADCs 1 (24 x 12 bit) | ||
Height 0.85mm | ||
Width 7.1mm | ||
Data Rate 1Mbps | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
Maximum Number of Ethernet Channels 0 | ||
Dimensions 7.1 x 7.1 x 0.85mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Length 7.1mm | ||
- COO (Country of Origin):
- TW
EFM32 Jade Gecko Microcontroller Family, Silicon Labs
The Silicon Labs EFM32 Jade Gecko Microcontrollers feature a powerful 32-bit ARM Cortex-M3 Core. They offer a wide array of peripherals and in particular their unique cryptographic hardware engine supporting AES, ECC, and SHA.
With low current active mode and short wake-up times, Jade Gecko Microcontrollers are perfect for battery powered applications and other low energy systems.
For systems requiring floating point calculations, there is the Pearl Gecko Family with an ARM Cortex M4 Core. Both Jade and Pearl Gecko Microcontroller families use the same development kit (SLSTK3401A, RS 922-4814).
With low current active mode and short wake-up times, Jade Gecko Microcontrollers are perfect for battery powered applications and other low energy systems.
For systems requiring floating point calculations, there is the Pearl Gecko Family with an ARM Cortex M4 Core. Both Jade and Pearl Gecko Microcontroller families use the same development kit (SLSTK3401A, RS 922-4814).
Features
- ARM Cortex-M3 MCU Core running at 40 MHz
- 32 kB RAM
- Temperature sensor
- 2 16-bit timers
- 2 comparators
- AES-128, AES-256, ECC, SHA-1 and SHA-2 cryptography
- UART
- 2 SPI
- I2C
Applications
- IoT devices and sensors
- Health and fitness trackers
- Smart accessories
- Home, industrial and factory automation and security
- ARM Cortex-M3 MCU Core running at 40 MHz
- 32 kB RAM
- Temperature sensor
- 2 16-bit timers
- 2 comparators
- AES-128, AES-256, ECC, SHA-1 and SHA-2 cryptography
- UART
- 2 SPI
- I2C
Applications
- IoT devices and sensors
- Health and fitness trackers
- Smart accessories
- Home, industrial and factory automation and security
EFM32 Gecko Microcontrollers
Silicon Labs microcontrollers target energy sensitive applications, including smart metering, gas/energy/water metering, remote sensing, building automation, security systems, portable health/fitness equipment and smart accessories.
Powerful ARM Cortex-M 32-bit processor cores
Short wake-up time from energy saving modes
Ideal for use with energy harvesting systems
Short wake-up time from energy saving modes
Ideal for use with energy harvesting systems
