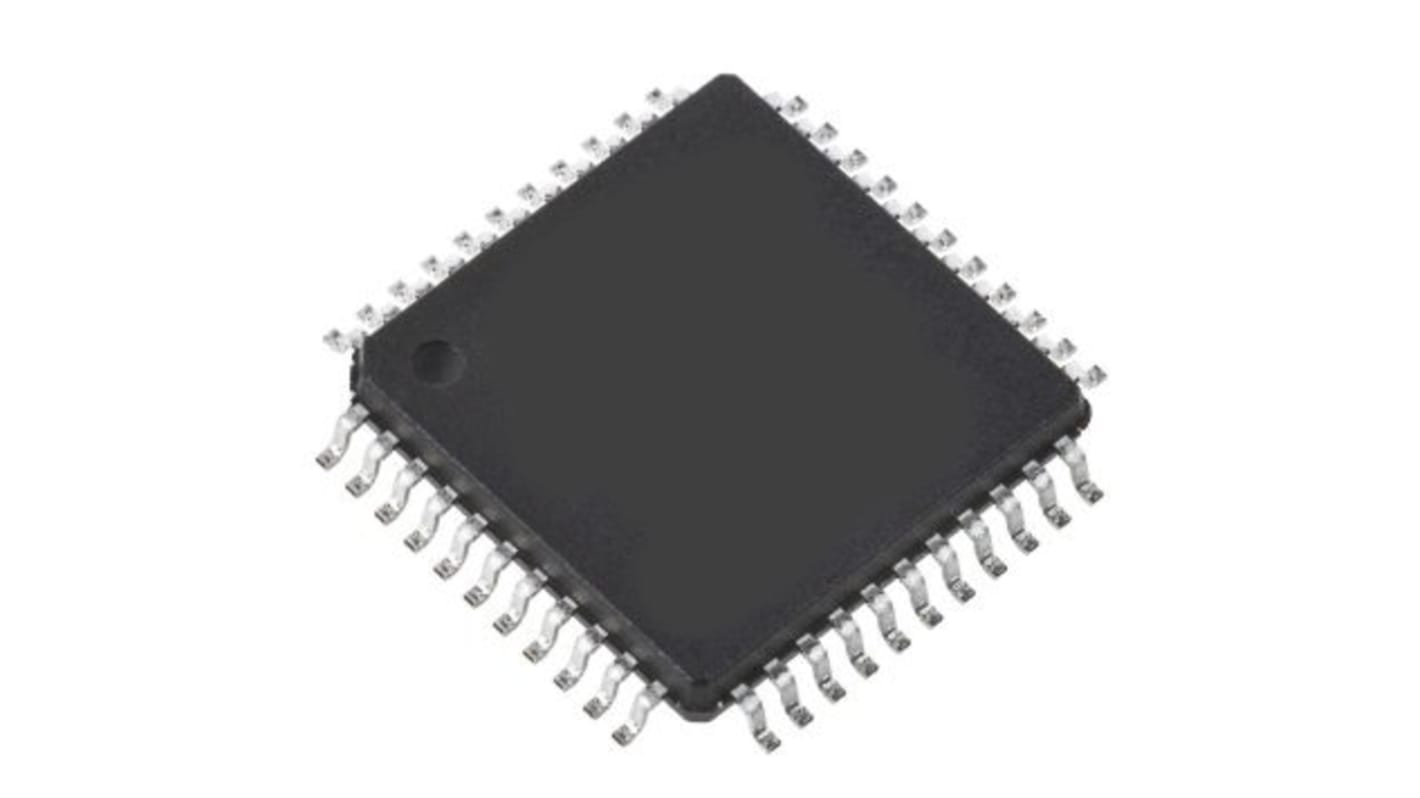

Renesas Electronics, 16bit RL78, RL78 Microcontroller, 32MHz, 96 kB Flash, 44-Pin LQFP
- RS Stock No.:
- 829-1377
- Mfr. Part No.:
- R5F104FFAFP#30
- Brand:
- Renesas Electronics
Subtotal (1 pack of 2 units)*
£5.28
(exc. VAT)
£6.34
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £2.64 | £5.28 |
| 10 + | £2.475 | £4.95 |
*price indicative
- RS Stock No.:
- 829-1377
- Mfr. Part No.:
- R5F104FFAFP#30
- Brand:
- Renesas Electronics
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RL78 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 44 | |
| Device Core | RL78 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 96 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 12 kB | |
| USB Channels | 0 | |
| Number of SPI Channels | 4 | |
| Number of I2C Channels | 6 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 3 | |
| Number of USART Channels | 0 | |
| Typical Operating Supply Voltage | 1.6 → 5.5 V | |
| Number of Ethernet Channels | 0 | |
| Width | 10mm | |
| Height | 1.5mm | |
| Number of LIN Channels | 1 | |
| Dimensions | 10 x 10 x 1.5mm | |
| Length | 10mm | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | CISC | |
| Minimum Operating Temperature | -40 °C | |
| ADCs | 10 x 8/10 bit | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RL78 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 44 | ||
Device Core RL78 | ||
Data Bus Width 16bit | ||
Program Memory Size 96 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 12 kB | ||
USB Channels 0 | ||
Number of SPI Channels 4 | ||
Number of I2C Channels 6 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 3 | ||
Number of USART Channels 0 | ||
Typical Operating Supply Voltage 1.6 → 5.5 V | ||
Number of Ethernet Channels 0 | ||
Width 10mm | ||
Height 1.5mm | ||
Number of LIN Channels 1 | ||
Dimensions 10 x 10 x 1.5mm | ||
Length 10mm | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture CISC | ||
Minimum Operating Temperature -40 °C | ||
ADCs 10 x 8/10 bit | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
- COO (Country of Origin):
- JP
RL78/G14, 16-Bit Microcontrollers, 64kB/96kB Flash, Renesas Electronics
RL78 is based upon a 16-bit CISC architecture with analogue rich functionality. The platform line-up will include general purpose, LCD and ASSPs including lighting and automotive microcontrollers.
RL78 is designed specifically for ultra-low power applications enabling customers to build compact and energy-efficient systems at lower cost.
In addition to a high-precision (±1%) on-chip oscillator enabling 32MHz CPU operation and other standard on-chip functions from the RL78/G13, the RL78/G14 microcontrollers have multiply, divide and multiply-accumulate instructions capable of faster processing than the RL78/G13, and functions from the R8C Family with proven track records, such as timers RD/RG/RJ, data transfer controller, and event link controller, helping to lower the total cost of building a system and contributing to more compact size and lower power consumption.
