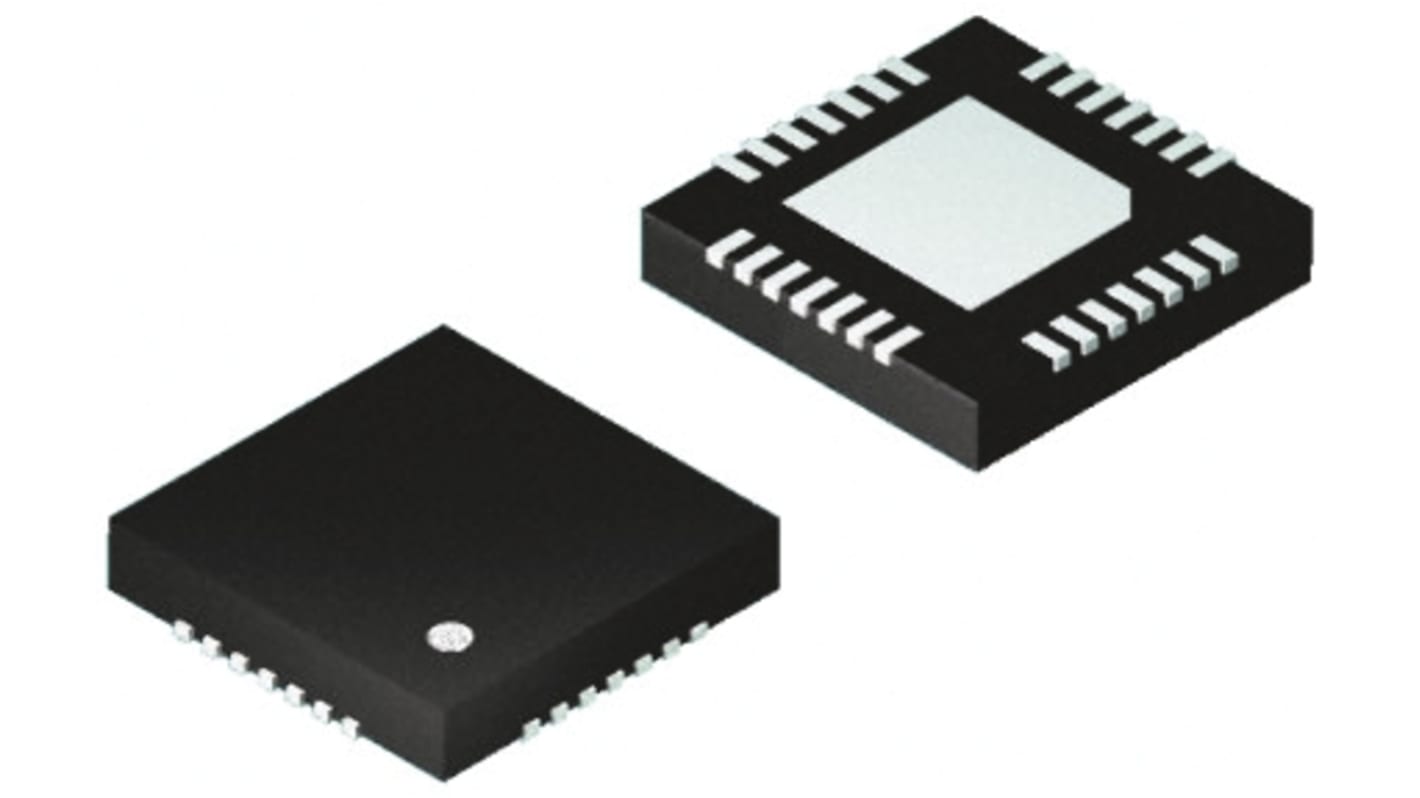

Silicon Labs C8051F315-GM, 8bit 8051 Microcontroller, C8051F, 25MHz, 8 kB Flash, 28-Pin QFN
- RS Stock No.:
- 819-6727
- Mfr. Part No.:
- C8051F315-GM
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 819-6727
- Mfr. Part No.:
- C8051F315-GM
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | C8051F | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB | |
| Maximum Frequency | 25MHz | |
| RAM Size | 1.28 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 1 | |
| Typical Operating Supply Voltage | 3 V | |
| Number of I2C Channels | 1 | |
| Number of USART Channels | 0 | |
| Width | 5mm | |
| Height | 0.95mm | |
| Dimensions | 5 x 5 x 0.95mm | |
| Maximum Operating Temperature | +85 °C | |
| Length | 5mm | |
| Number of LIN Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 1 (5 x 16 bit) | |
| Number of PCI Channels | 0 | |
| Instruction Set Architecture | MCU | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name C8051F | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 28 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 8 kB | ||
Maximum Frequency 25MHz | ||
RAM Size 1.28 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 1 | ||
Typical Operating Supply Voltage 3 V | ||
Number of I2C Channels 1 | ||
Number of USART Channels 0 | ||
Width 5mm | ||
Height 0.95mm | ||
Dimensions 5 x 5 x 0.95mm | ||
Maximum Operating Temperature +85 °C | ||
Length 5mm | ||
Number of LIN Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
Number of Ethernet Channels 0 | ||
Pulse Width Modulation 1 (5 x 16 bit) | ||
Number of PCI Channels 0 | ||
Instruction Set Architecture MCU | ||
C8051F31x Microcontrollers, Silicon Labs
The Silicon Labs C8051F31x family of small form factor mixed-signal microcontrollers (MCU) with an 8-bit CPU capable of up to 25 MIPS.
Enable, disable and configure all the analogue and digital peripherals using the firmware. Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware.
They are specified for 2.7 V to 3.6 V operation over the industrial temperature range (-45°C to +85°C). The C8051F310/2/4 are available in a 32-pin LQFP package, the C8051F311/3/5 in a 28-pin QFN package and the C8051F316/7 in a 24-pin QFN package.
Enable, disable and configure all the analogue and digital peripherals using the firmware. Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware.
They are specified for 2.7 V to 3.6 V operation over the industrial temperature range (-45°C to +85°C). The C8051F310/2/4 are available in a 32-pin LQFP package, the C8051F311/3/5 in a 28-pin QFN package and the C8051F316/7 in a 24-pin QFN package.
- 8051-compatible CIP-51 microcontroller core (up to 25 MIPS)
- In-system, full-speed, non-intrusive debug interface (on-chip)
- 10-bit (C8051F310/2/3/6) 200 ksps 25-channel single-ended/differential ADC with analogue multiplexer
- Two analogue comparators
- 8 kB (C8051F312/3/4/5) or 16 kB (C8051F310/1/6/7) of in-system programmable FLASH memory
- 1280 bytes of on-chip RAM
- SMBus/I2C, and enhanced UART and SPI serial interfaces implemented in hardware
- Four, general purpose 16-bit Timers
- Programmable Counter/Timer Array with five capture/compare modules
- Calibrated 24.5 MHz Oscillator
- On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor
- In-system, full-speed, non-intrusive debug interface (on-chip)
- 10-bit (C8051F310/2/3/6) 200 ksps 25-channel single-ended/differential ADC with analogue multiplexer
- Two analogue comparators
- 8 kB (C8051F312/3/4/5) or 16 kB (C8051F310/1/6/7) of in-system programmable FLASH memory
- 1280 bytes of on-chip RAM
- SMBus/I2C, and enhanced UART and SPI serial interfaces implemented in hardware
- Four, general purpose 16-bit Timers
- Programmable Counter/Timer Array with five capture/compare modules
- Calibrated 24.5 MHz Oscillator
- On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor
