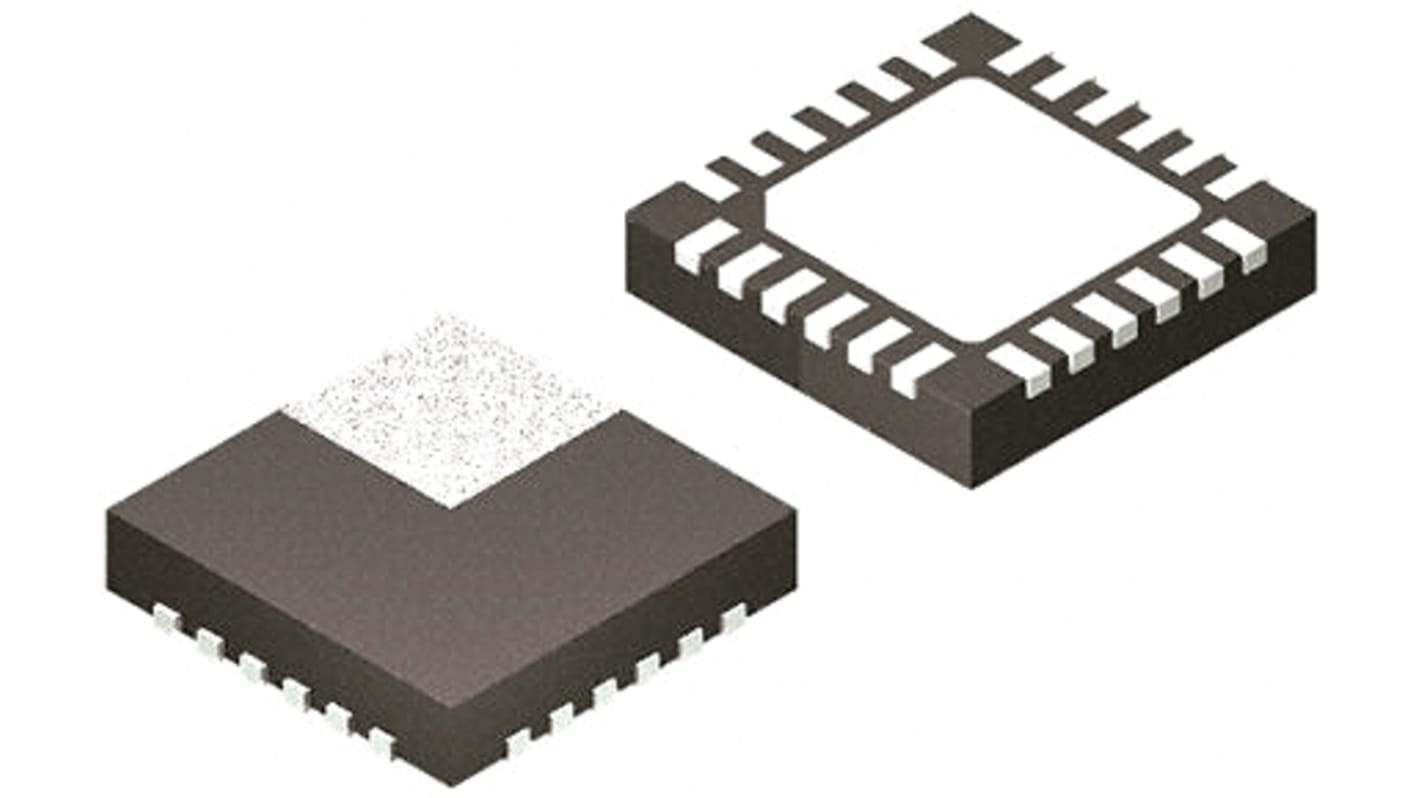

Silicon Labs, 8bit 8051, C8051F Microcontroller, 25MHz, 16 kB Flash, 24-Pin QFN
- RS Stock No.:
- 819-3670
- Mfr. Part No.:
- C8051F975-A-GM
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 819-3670
- Mfr. Part No.:
- C8051F975-A-GM
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | C8051F | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 24 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 25MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 0 | |
| Number of UART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 2 | |
| Typical Operating Supply Voltage | 3 V | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 1 (3 x 16 bit) | |
| Dimensions | 4 x 4 x 0.75mm | |
| Width | 4mm | |
| Height | 0.75mm | |
| Instruction Set Architecture | MCU | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| ADCs | 19 x 10 bit | |
| Length | 4mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name C8051F | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 24 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 25MHz | ||
RAM Size 4 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 1 | ||
Number of USART Channels 0 | ||
Number of UART Channels 1 | ||
Number of CAN Channels 0 | ||
Number of I2C Channels 2 | ||
Typical Operating Supply Voltage 3 V | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Pulse Width Modulation 1 (3 x 16 bit) | ||
Dimensions 4 x 4 x 0.75mm | ||
Width 4mm | ||
Height 0.75mm | ||
Instruction Set Architecture MCU | ||
Maximum Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
ADCs 19 x 10 bit | ||
Length 4mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
C8051F97x Capacitive Sensing MCU, Silicon Labs
Silicon Labs low power C8051F97x microcontroller family has a long battery life as well as its high performance it also offers a capacitive sensing solution for human-machine interfaces (HMI) applications.
The C8051F97x MCU extends the SiLabs C8051F99x capacitive sense microcontroller family abilities with up to forty three capacitive sensing inputs, 32kB flash memory and up to 8kB RAM. Both series provide capacitive sensing with sub micro-amp wake on touch average current and dynamic range; supporting touch pads, buttons, sliders and capacitive proximity sensing.
The Simplicity Studio development platform lets you develop applications and capacitive touch sensing solutions quickly via the C8051F970 prototype PCB - C8051F970-A-DK Development kit (8193999).
The C8051F97x MCU extends the SiLabs C8051F99x capacitive sense microcontroller family abilities with up to forty three capacitive sensing inputs, 32kB flash memory and up to 8kB RAM. Both series provide capacitive sensing with sub micro-amp wake on touch average current and dynamic range; supporting touch pads, buttons, sliders and capacitive proximity sensing.
The Simplicity Studio development platform lets you develop applications and capacitive touch sensing solutions quickly via the C8051F970 prototype PCB - C8051F970-A-DK Development kit (8193999).
Seven channel Direct Memory Access (DMA) module
One cycle 16 x 16 multiply and accumulate module
In-system, full-speed, non-intrusive debug interface (on-chip)
Up to 43 general purpose I/O
Active mode; sleep mode with brown-out protection/ with internal oscillator
Up to 32 kB of on-chip flash memory
Up to 8 kB of on-chip RAM
Forty three input charge timing capacitance to digital converter
12-bit ADC; power-on reset and supply monitor(on-chip); voltage reference (on-chip)
SmaRTClock oscillator; internal oscillator
Interface: SMBus I2C, UART, SPI, and High-Speed I2C
Four 16-bit timers; Programmable Counter/Timer Array (PCA); Watchdog timer
One cycle 16 x 16 multiply and accumulate module
In-system, full-speed, non-intrusive debug interface (on-chip)
Up to 43 general purpose I/O
Active mode; sleep mode with brown-out protection/ with internal oscillator
Up to 32 kB of on-chip flash memory
Up to 8 kB of on-chip RAM
Forty three input charge timing capacitance to digital converter
12-bit ADC; power-on reset and supply monitor(on-chip); voltage reference (on-chip)
SmaRTClock oscillator; internal oscillator
Interface: SMBus I2C, UART, SPI, and High-Speed I2C
Four 16-bit timers; Programmable Counter/Timer Array (PCA); Watchdog timer
