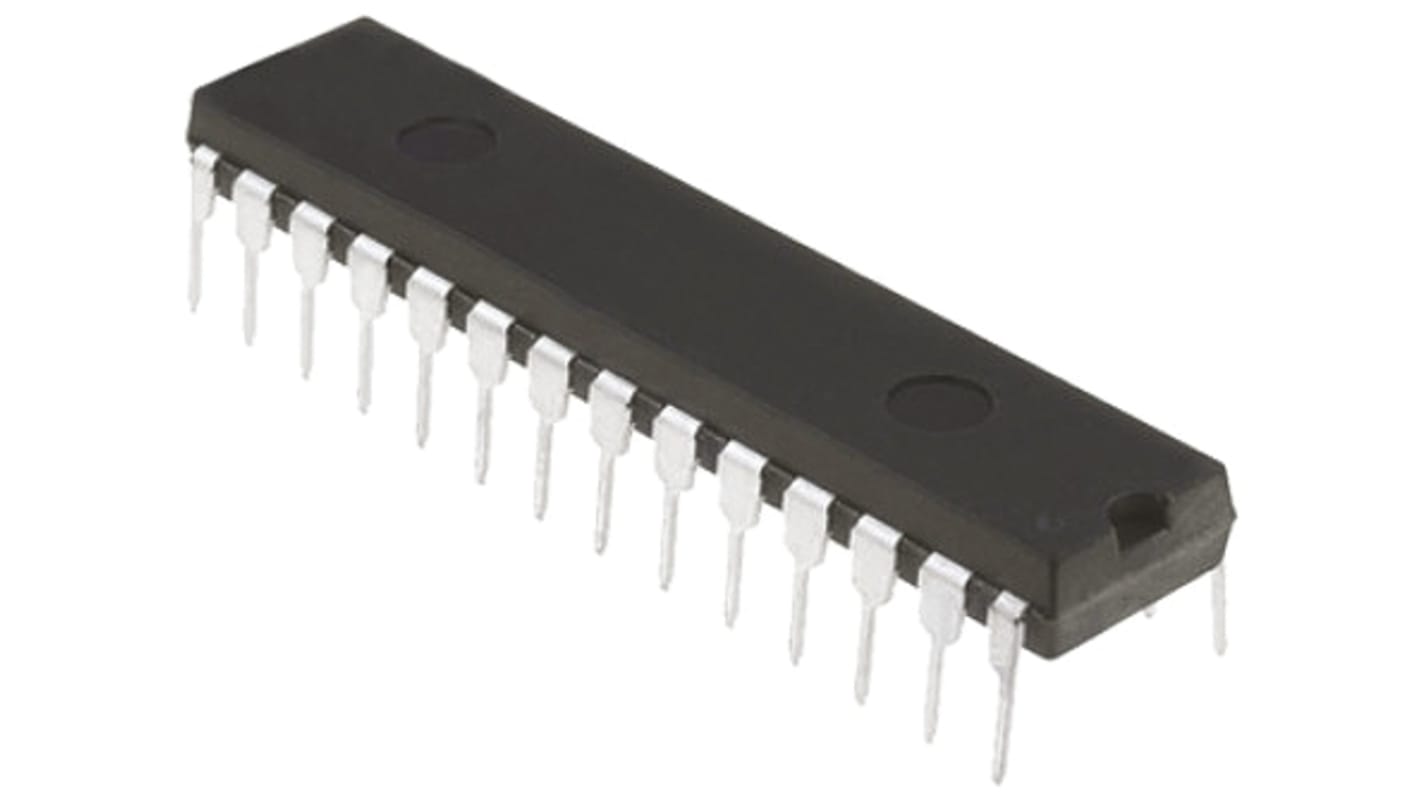

Microchip PIC16F722A-I/SP, 8bit PIC16F Microcontroller, PIC16F, 20MHz, 2048 words Flash, 28-Pin SPDIP
- RS Stock No.:
- 817-4070
- Mfr. Part No.:
- PIC16F722A-I/SP
- Brand:
- Microchip
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 817-4070
- Mfr. Part No.:
- PIC16F722A-I/SP
- Brand:
- Microchip
- COO (Country of Origin):
- CN
PIC16F722A/723A 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F722A/723A family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory and up to 192 bytes RAM. On board is an oscillator factory calibrated to ±1% accuracy.
The PIC16F722A/723A family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory and up to 192 bytes RAM. On board is an oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
25 I/O Pins
nanoWatt XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
35 Instructions
8 Level Hardware Stack
25 I/O Pins
nanoWatt XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
11 Channel 8-bit Analogue to Digital Converter (ADC)
8 Channel mTouchTM Sensing Oscillator Module
Two Capture, Compare, PWM (CCP) Modules
Two 8-bit Timers
One 16-bit Timer
Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
Synchronous Serial Port (SSP) with SPI and I2C
8 Channel mTouchTM Sensing Oscillator Module
Two Capture, Compare, PWM (CCP) Modules
Two 8-bit Timers
One 16-bit Timer
Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
Synchronous Serial Port (SSP) with SPI and I2C
Attribute | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC16F |
| Data Bus Width | 8bit |
| Program Memory Size | 2048 words |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| Number of SPI Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 1.8 to 5.5 V |
| Number of USART Channels | 1 |
| Number of UART Channels | 1 |
| Number of CAN Channels | 0 |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 10 bit |
| Width | 0.335in |
| Number of LIN Channels | 0 |
| Height | 3.81mm |
| ADCs | 1(11 x 8 bit) |
| Length | 35.56mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Dimensions | 1.4 x 0.335 x 0.15in |
