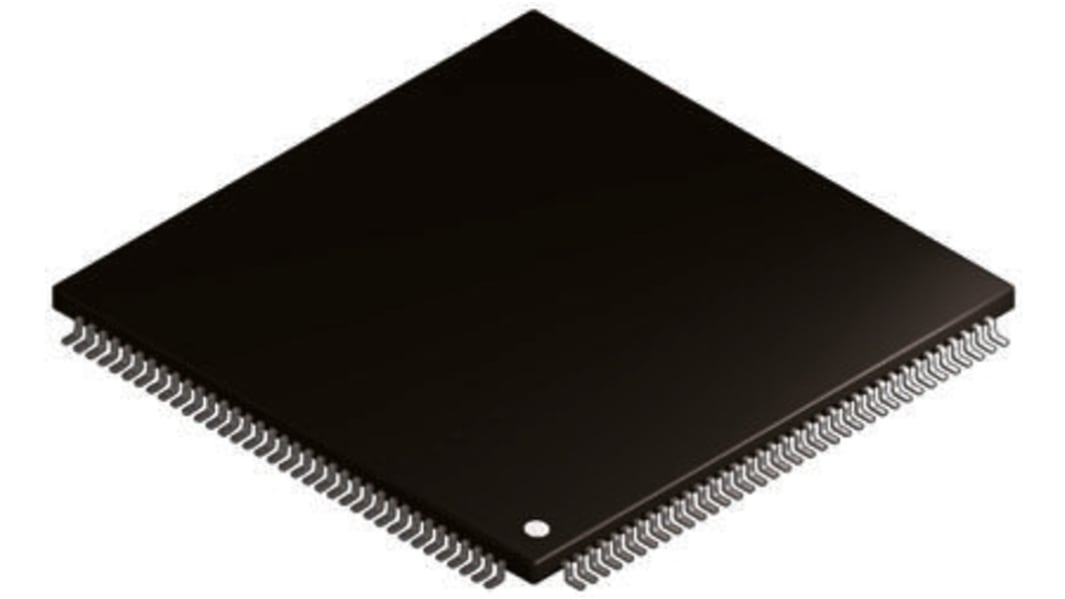

Microchip, 16bit dsPIC, DSPIC33EP Microcontroller, 70MHz, 536 kB Flash, 144-Pin LQFP

View all Microcontrollers

Subtotal (1 unit)*

£8.74

(exc. VAT)

£10.49

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£8.74

*price indicative

Packaging Options:
RS Stock No.:
755-9372
Mfr. Part No.:
dsPIC33EP512MU814-I/PL
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

DSPIC33EP

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Device Core

dsPIC

Data Bus Width

16bit

Program Memory Size

536 kB

Maximum Frequency

70MHz

RAM Size

52 kB

USB Channels

1

Number of PWM Units

1 x 16/32 bit

Number of SPI Channels

4

Number of I2C Channels

2

Typical Operating Supply Voltage

3 to 3.6 V

Number of USART Channels

0

Number of CAN Channels

2

Number of UART Channels

4

Number of PCI Channels

0

Program Memory Type

Flash

Number of Ethernet Channels

1

Number of LIN Channels

0

Pulse Width Modulation

14 (1 x 8.32 ns)

Width

20mm

Height

1.4mm

Length

20mm

ADCs

2 x 12/24 bit

Minimum Operating Temperature

-40 °C

Number of ADC Units

2

Dimensions

20 x 20 x 1.4mm

Instruction Set Architecture

C

Maximum Operating Temperature

+85 °C

dsPIC33EP Digital Signal Controllers


The dsPIC33E Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 70MIPS dsPIC33E core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33E DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33E SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
