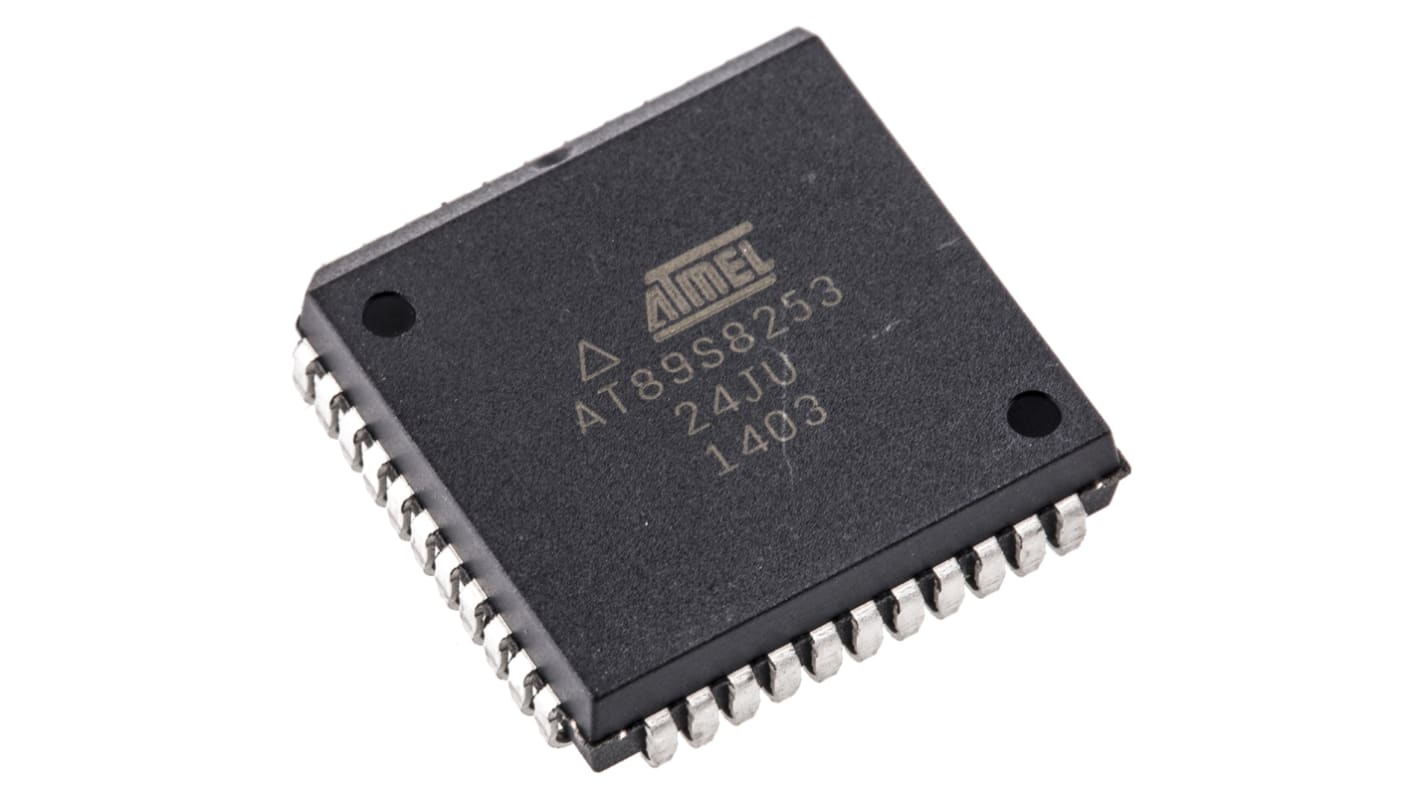

Atmel AT89S8253-24JU, 8bit 8051 Microcontroller, AT89S, 24MHz, 2 kB, 12 kB Flash, 44-Pin PLCC
- RS Stock No.:
- 719-3907
- Mfr. Part No.:
- AT89S8253-24JU
- Brand:
- Atmel
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 2)
£3.44
(exc. VAT)
£4.13
(inc. VAT)
- RS Stock No.:
- 719-3907
- Mfr. Part No.:
- AT89S8253-24JU
- Brand:
- Atmel
Select all | Attribute | Value |
|---|---|---|
| Brand | Atmel | |
| Family Name | AT89S | |
| Package Type | PLCC | |
| Mounting Type | Surface Mount | |
| Pin Count | 44 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 2 kB, 12 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 0 | |
| Number of UART Channels | 1 | |
| Typical Operating Supply Voltage | 2.7 to 5.5 V | |
| Number of USART Channels | 0 | |
| Number of CAN Channels | 0 | |
| Length | 16.66mm | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Instruction Set Architecture | CISC | |
| Maximum Number of Ethernet Channels | 0 | |
| Width | 16.662mm | |
| Dimensions | 16.662 x 16.662 x 4.064mm | |
| Maximum Operating Temperature | +85 °C | |
| Height | 4.064mm | |
| Number of LIN Channels | 0 | |
| Select all | ||
|---|---|---|
Brand Atmel | ||
Family Name AT89S | ||
Package Type PLCC | ||
Mounting Type Surface Mount | ||
Pin Count 44 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 2 kB, 12 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 256 B | ||
USB Channels 0 | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 0 | ||
Number of UART Channels 1 | ||
Typical Operating Supply Voltage 2.7 to 5.5 V | ||
Number of USART Channels 0 | ||
Number of CAN Channels 0 | ||
Length 16.66mm | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Instruction Set Architecture CISC | ||
Maximum Number of Ethernet Channels 0 | ||
Width 16.662mm | ||
Dimensions 16.662 x 16.662 x 4.064mm | ||
Maximum Operating Temperature +85 °C | ||
Height 4.064mm | ||
Number of LIN Channels 0 | ||
8051 Architecture Flash ISP (In-System Programmable) Microcontrollers, Atmel
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
