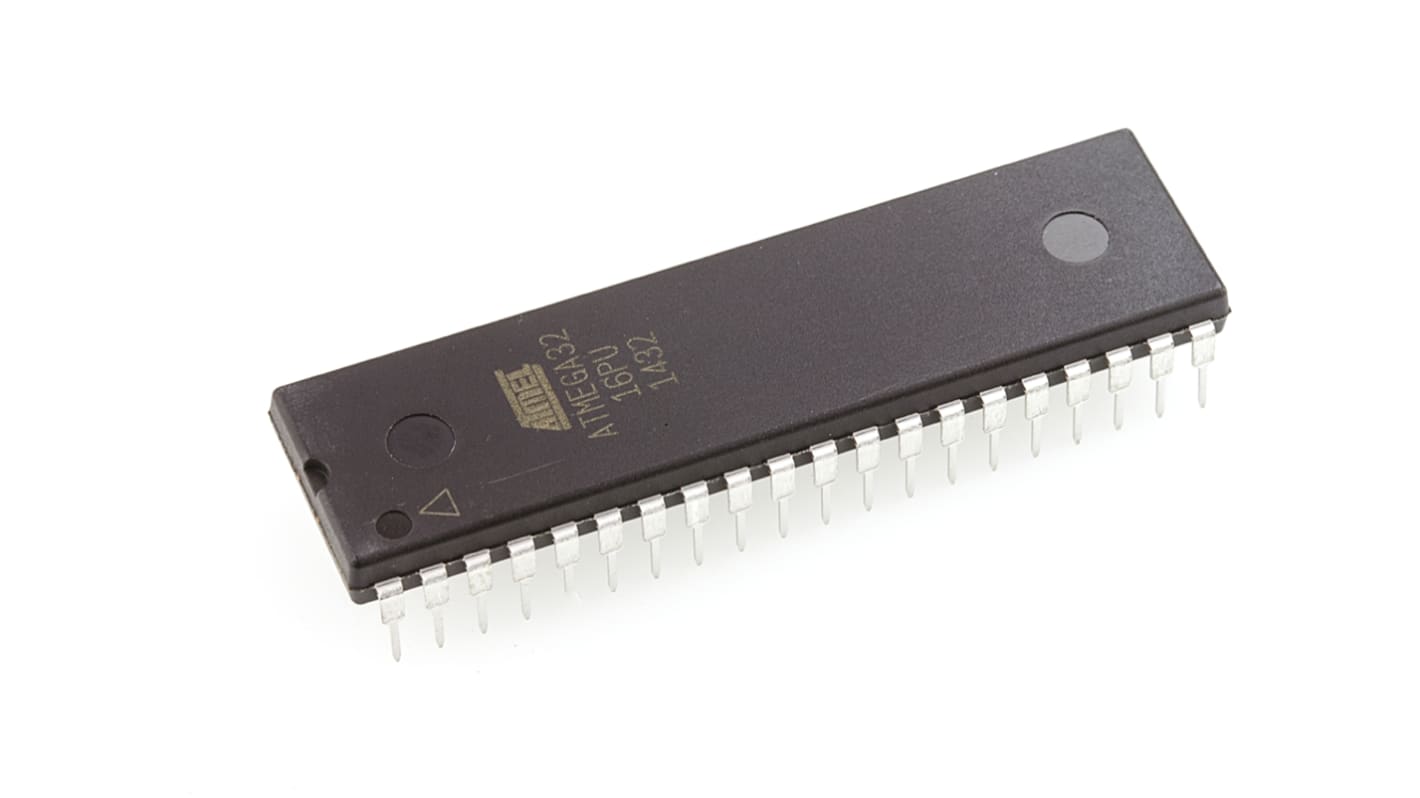

Microchip ATMEGA32-16PU, 8bit AVR Microcontroller, ATmega, 16MHz, 1.024 kB, 32 kB Flash, 40-Pin PDIP

RS Stock No.:: 628-1491
Mfr. Part No.:: ATMEGA32-16PU
Brand:: Microchip

Microchip ATMEGA32-16PU, 8bit AVR Microcontroller, ATmega, 16MHz, 1.024 kB, 32 kB Flash, 40-Pin PDIP

Discontinued product

Alternatives

This product is not currently available. Here are our alternative recommendations.

Microchip ATMEGA32L-8PU, 8bit AVR Microcontroller, ATmega, 8MHz, 1.024 kB, 32 kB Flash, 40-Pin PDIP

RS Stock No.: 628-1558

Each

£4.36

(exc. VAT)

£5.23

(inc. VAT)

Microchip ATMEGA32-16PU, 8bit AVR Microcontroller, ATmega, 16MHz, 32 kB Flash, 40-Pin PDIP

RS Stock No.: 127-8292

Each

£5.96

(exc. VAT)

£7.15

(inc. VAT)

RS Stock No.:: 628-1491
Mfr. Part No.:: ATMEGA32-16PU
Brand:: Microchip

ATmega 32 Microcontroller Data Sheet

Attribute	Value
Family Name	ATmega
Package Type	PDIP
Mounting Type	Through Hole
Pin Count	40
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	1.024 kB, 32 kB
Maximum Frequency	16MHz
RAM Size	2 kB
USB Channels	0
Number of PWM Units	2
Number of SPI Channels	1
Number of UART Channels	0
Typical Operating Supply Voltage	4.5 to 5.5 V
Number of CAN Channels	0
Number of USART Channels	1
Number of I2C Channels	1
Minimum Operating Temperature	-40 °C
Pulse Width Modulation	2(4 x 8 bit)
Number of LIN Channels	0
Height	4.445mm
Program Memory Type	Flash
Dimensions	52.578 x 13.97 x 4.445mm
Number of Ethernet Channels	0
Width	13.97mm
ADCs	8 x 10 bit
Length	52.58mm
Maximum Operating Temperature	+85 °C
Number of ADC Units	1
Number of PCI Channels	0
Instruction Set Architecture	RISC

Microchip ATMEGA32-16PU, 8bit AVR Microcontroller, ATmega, 16MHz, 1.024 kB, 32 kB Flash, 40-Pin PDIP

Alternatives

8-Bit megaAVR Microcontrollers, 32KB to 256KB Flash
