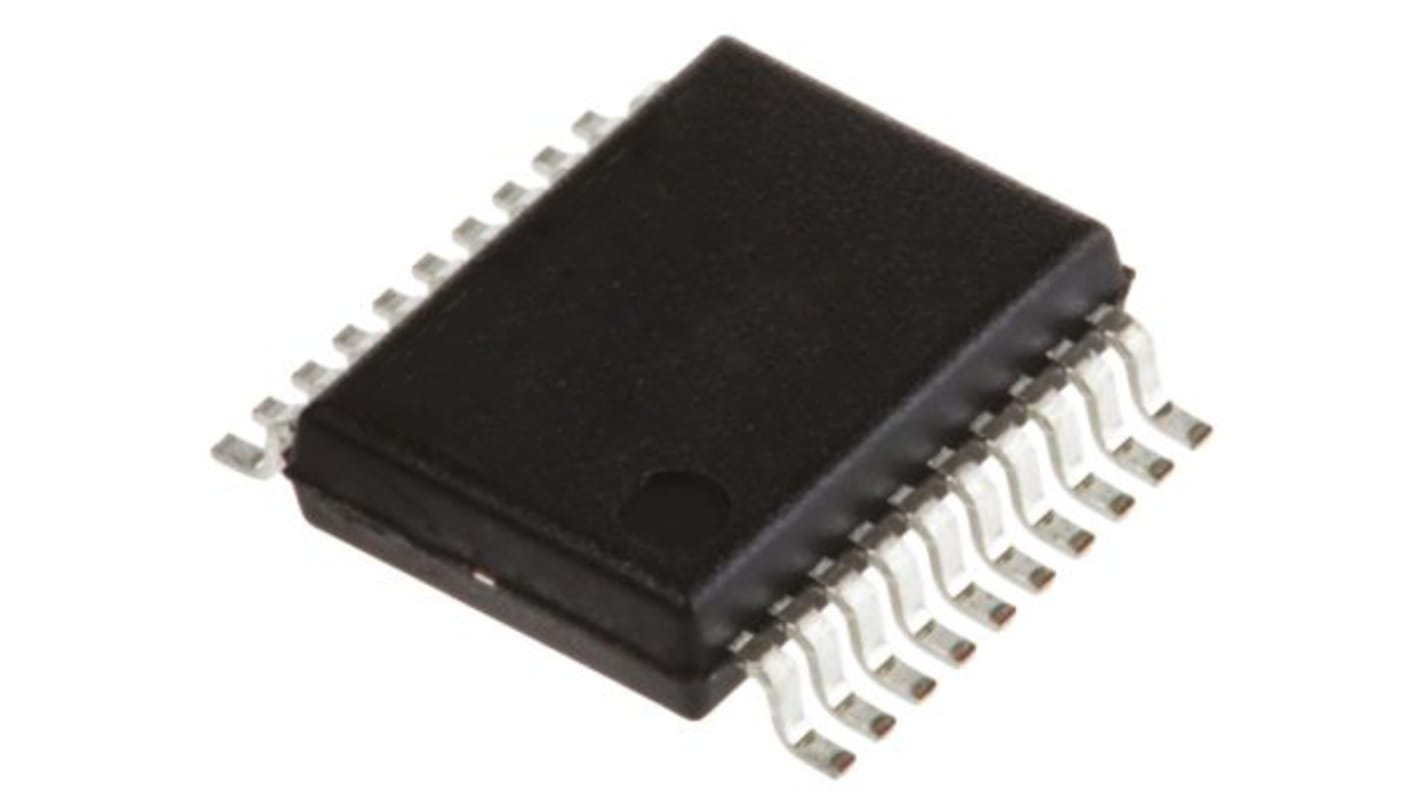

Renesas Electronics, 16bit, RL78 Microcontroller, 24MHz, 16 kB Flash, 20-Pin LSSOP
- RS Stock No.:
- 179-3640
- Mfr. Part No.:
- R5F1056AASP#30
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 4 units)*
£6.18
(exc. VAT)
£7.416
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 4 - 16 | £1.545 | £6.18 |
| 20 - 36 | £1.43 | £5.72 |
| 40 - 196 | £1.395 | £5.58 |
| 200 - 396 | £1.36 | £5.44 |
| 400 + | £1.323 | £5.29 |
*price indicative
- RS Stock No.:
- 179-3640
- Mfr. Part No.:
- R5F1056AASP#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RL78 | |
| Package Type | LSSOP | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 1.5 kB | |
| Typical Operating Supply Voltage | 5.5 (Maximum) V | |
| Number of I2C Channels | 3 | |
| Number of UART Channels | 2 | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Height | 1.15mm | |
| Width | 4.4mm | |
| Instruction Set Architecture | CISC | |
| Dimensions | 6.5 x 4.4 x 1.15mm | |
| Length | 6.5mm | |
| Minimum Operating Temperature | -40 °C | |
| ADCs | 11 x 10 bit | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RL78 | ||
Package Type LSSOP | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Data Bus Width 16bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 1.5 kB | ||
Typical Operating Supply Voltage 5.5 (Maximum) V | ||
Number of I2C Channels 3 | ||
Number of UART Channels 2 | ||
Program Memory Type Flash | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Height 1.15mm | ||
Width 4.4mm | ||
Instruction Set Architecture CISC | ||
Dimensions 6.5 x 4.4 x 1.15mm | ||
Length 6.5mm | ||
Minimum Operating Temperature -40 °C | ||
ADCs 11 x 10 bit | ||
- COO (Country of Origin):
- CN
Renesas Electronics Microcontroller
The Renesas Electronics RL78 family type, LSSOP package, surface mount, 20-pin 16-bit microcontroller has a maximum voltage rating of 5.5V. The microcontroller operates at a maximum speed of 24MHz and features 16kb ISP flash program memory and 1.5kb of SRAM. It has smart features like DTC and ELC. A lot of peripherals can be connected internally to reduce CPU workload and can save the overall power consumption. This microcontroller also supports background application (BGO) in which instructions can be executed from the program memory while rewriting the data flash memory.
Features and Benefits
• 2-channel comparator
• 4-channel 16-bit timer
• 8/10-bit resolution A/D converter
• A 12-bit interval timer
• A channel watchdog timer
• CISC architecture with 3-stage pipeline
• Data transfer modes such as normal transfer, repeat transfer and block transfer mode
• Event link controller
• High speed on-chip oscillator
• On-chip clock output/buzzer output controller
• On-chip power-on-reset (POR) and voltage detector (LVD)
• Operating temperature ranges between -40°C and 85°C
• Serial interfaces - 4-channel CSI, 2-channel UART and 2-channel multimaster I2C
• Two 8-bit interval timer
• 4-channel 16-bit timer
• 8/10-bit resolution A/D converter
• A 12-bit interval timer
• A channel watchdog timer
• CISC architecture with 3-stage pipeline
• Data transfer modes such as normal transfer, repeat transfer and block transfer mode
• Event link controller
• High speed on-chip oscillator
• On-chip clock output/buzzer output controller
• On-chip power-on-reset (POR) and voltage detector (LVD)
• Operating temperature ranges between -40°C and 85°C
• Serial interfaces - 4-channel CSI, 2-channel UART and 2-channel multimaster I2C
• Two 8-bit interval timer
Applications
• Lightening/power source
• Temperature sensors
• Temperature sensors
