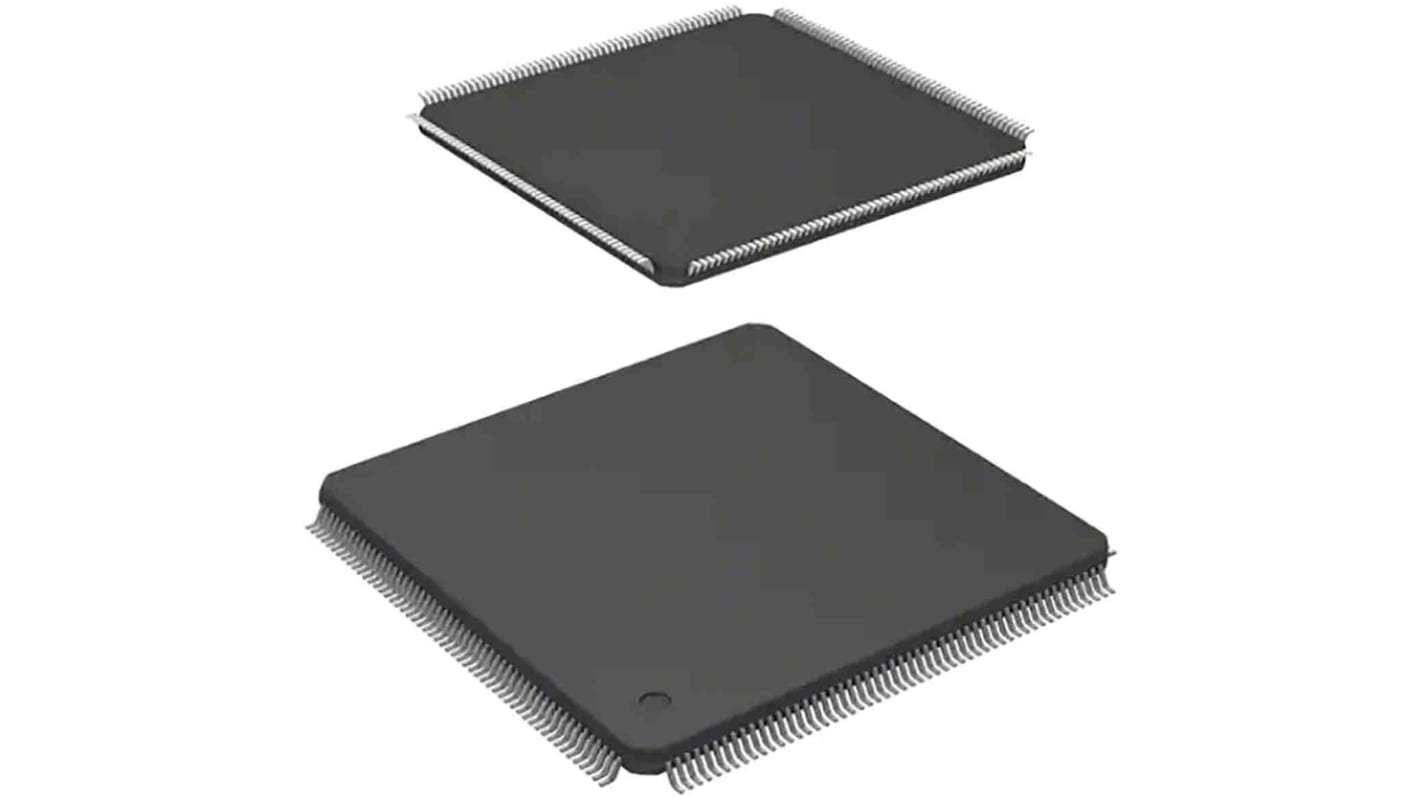

Renesas Electronics, 8bit ARM Cortex A9, R7S7 Microcontroller, 400MHz, 128 (TLB128) kB, 32 (Data Cache) kB, 32
- RS Stock No.:
- 178-0120
- Mfr. Part No.:
- R7S721031VCFP#AA0
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 178-0120
- Mfr. Part No.:
- R7S721031VCFP#AA0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | R7S7 | |
| Package Type | QFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 208 | |
| Device Core | ARM Cortex A9 | |
| Data Bus Width | 8 bit, 16 bit, 32bit | |
| Program Memory Size | 128 (TLB128) kB, 32 (Data Cache) kB, 32 (Instruction Cache) kB | |
| Maximum Frequency | 400MHz | |
| RAM Size | 3.072 MB | |
| USB Channels | 2 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 3 | |
| Typical Operating Supply Voltage | 3.6 (Maximum) V | |
| Number of CAN Channels | 2 | |
| Number of I2C Channels | 4 | |
| Number of UART Channels | 5 | |
| Height | 1.4mm | |
| Maximum Number of Ethernet Channels | 1 | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Width | 28mm | |
| Dimensions | 28 x 28 x 1.4mm | |
| Minimum Operating Temperature | -40 °C | |
| Pulse Width Modulation | 1 (6 Channel) | |
| Data Rate | 133.3Mbit/s | |
| Length | 28mm | |
| Number of Ethernet Channels | 1 | |
| ADCs | 8 x 12 bit | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name R7S7 | ||
Package Type QFP | ||
Mounting Type Surface Mount | ||
Pin Count 208 | ||
Device Core ARM Cortex A9 | ||
Data Bus Width 8 bit, 16 bit, 32bit | ||
Program Memory Size 128 (TLB128) kB, 32 (Data Cache) kB, 32 (Instruction Cache) kB | ||
Maximum Frequency 400MHz | ||
RAM Size 3.072 MB | ||
USB Channels 2 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 3 | ||
Typical Operating Supply Voltage 3.6 (Maximum) V | ||
Number of CAN Channels 2 | ||
Number of I2C Channels 4 | ||
Number of UART Channels 5 | ||
Height 1.4mm | ||
Maximum Number of Ethernet Channels 1 | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Width 28mm | ||
Dimensions 28 x 28 x 1.4mm | ||
Minimum Operating Temperature -40 °C | ||
Pulse Width Modulation 1 (6 Channel) | ||
Data Rate 133.3Mbit/s | ||
Length 28mm | ||
Number of Ethernet Channels 1 | ||
ADCs 8 x 12 bit | ||
With 3MB on-chip SRAM, the RZ/A1LU supports up to 2 Displays with WVGA (800x480) resolution or a single display with WSVGA (1024x600) resolution without the need for external memory. RZ/A1LU enables very compact embedded designs without the need to worry about memory procurement and memory EOL. With RZ/A1LU, you can design your embedded system like an MCU and get the performance of a 400MHz Arm® Cortex®-A9 MPU. Enabled for support with Linux, RTOS or Bare-metal, this is the ideal device for designing Intelligent IoT End Point devices with compactness and high performance. Supported in QFP and BGA packages with different sizes to support board layout flexibility and with SDRAM interface to expand up to 128MB of external memory.
