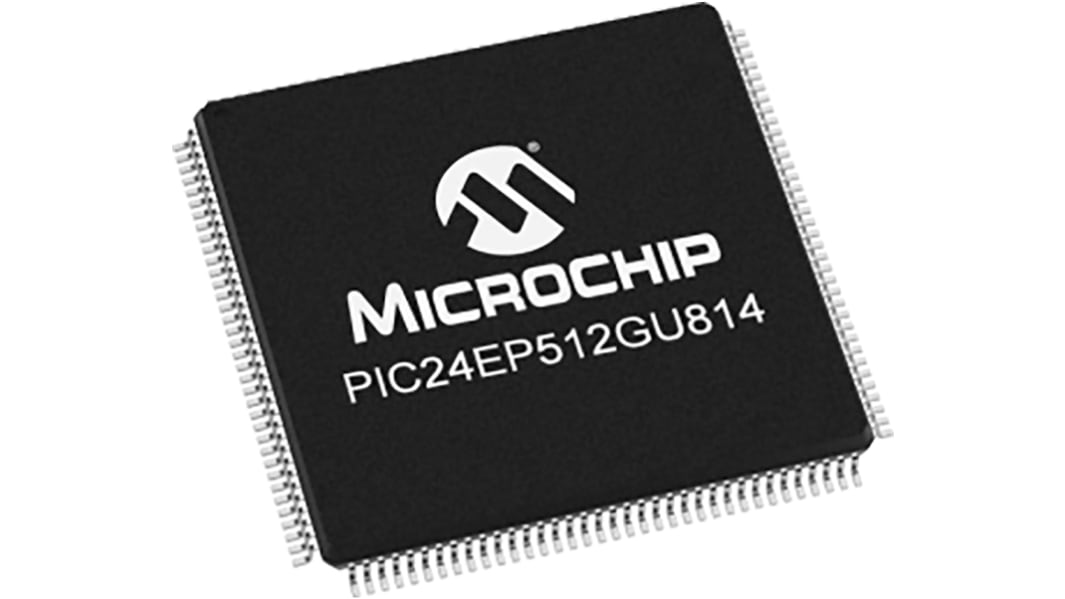

Microchip PIC24EP512GU814-I/PH, 16 bit PIC, PIC24E Microcontroller, 60 MHz, 536kB FLASH, 144-Pin TQFP
- RS Stock No.:
- 177-4003
- Mfr. Part No.:
- PIC24EP512GU814-I/PH
- Brand:
- Microchip
Subtotal (1 unit)*
£7.91
(exc. VAT)
£9.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 227 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.91 |
*price indicative
- RS Stock No.:
- 177-4003
- Mfr. Part No.:
- PIC24EP512GU814-I/PH
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | PIC24E | |
| Product Type | Microcontroller | |
| Package Type | TQFP | |
| Mount Type | Surface | |
| Pin Count | 144 | |
| Device Core | PIC | |
| Data Bus Width | 16bit | |
| Interface Type | QEI, SPI | |
| Program Memory Size | 536kB | |
| DACs | 1 x 4 Bit | |
| Maximum Clock Frequency | 60MHz | |
| RAM Size | 52kB | |
| Maximum Supply Voltage | 3.6V | |
| Analogue Comparators | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 16mm | |
| Height | 1.05mm | |
| Width | 16mm | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 3V | |
| Number of Timers | 2 | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | FLASH | |
| Automotive Standard | AEC-Q100 | |
| ADCs | 32 x 10/12 Bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series PIC24E | ||
Product Type Microcontroller | ||
Package Type TQFP | ||
Mount Type Surface | ||
Pin Count 144 | ||
Device Core PIC | ||
Data Bus Width 16bit | ||
Interface Type QEI, SPI | ||
Program Memory Size 536kB | ||
DACs 1 x 4 Bit | ||
Maximum Clock Frequency 60MHz | ||
RAM Size 52kB | ||
Maximum Supply Voltage 3.6V | ||
Analogue Comparators 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 16mm | ||
Height 1.05mm | ||
Width 16mm | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 3V | ||
Number of Timers 2 | ||
Instruction Set Architecture RISC | ||
Program Memory Type FLASH | ||
Automotive Standard AEC-Q100 | ||
ADCs 32 x 10/12 Bit | ||
Microchip’s PIC24E general purpose microcontroller family features the highest speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, enhanced CAN communication, easier graphic display interface through 8-bit parallel master port and up to 15 DMA channels for extensive data movement. These devices are available in various packages and with extended (125°C) temp option
Operating Range:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
PIC24E MCU Core:
Modified Harvard architecture
C compiler optimized instruction set
16-bit wide data path
24-bit wide instructions
16 x 16 multiply operations
32/16 and 16/16 divide operations
Advanced
