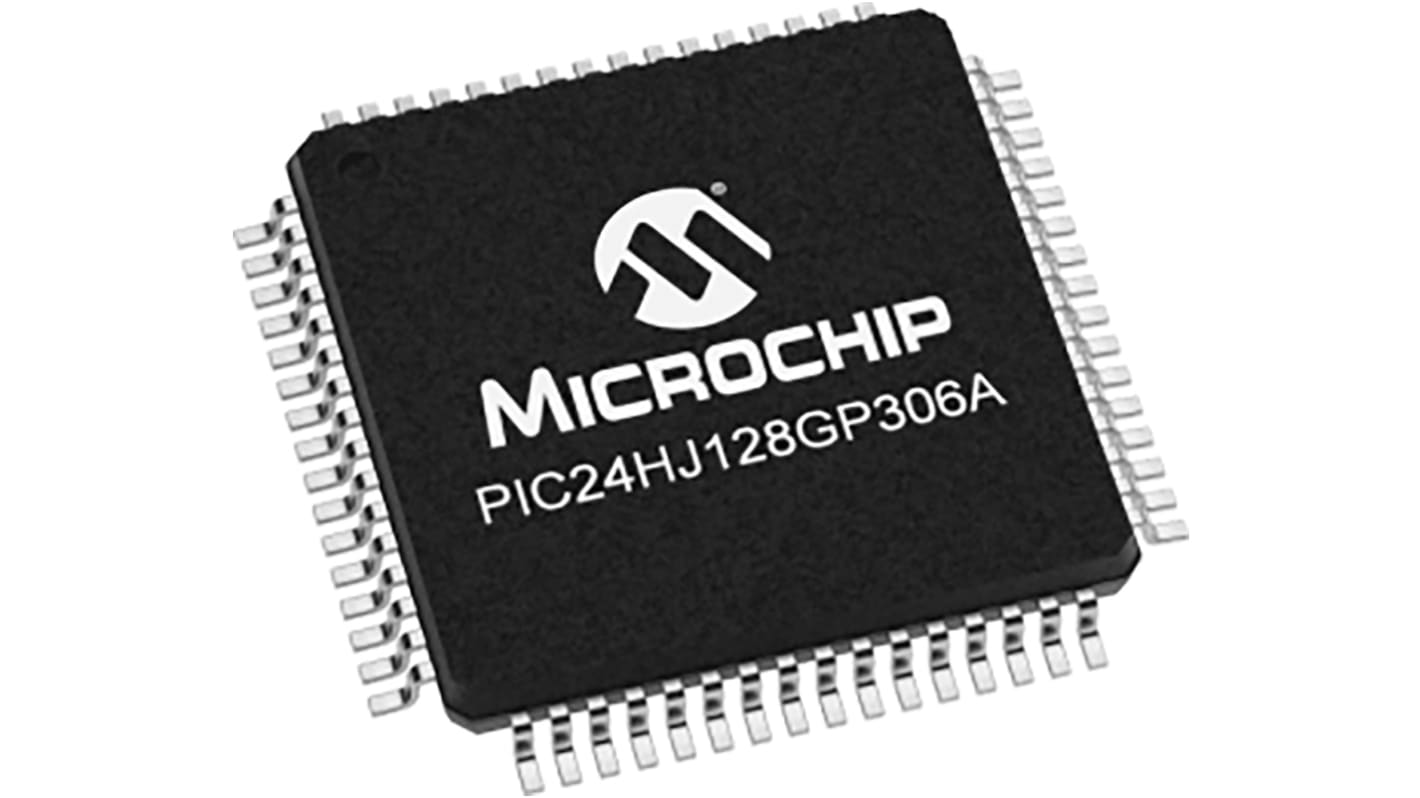

Microchip, 16bit PIC, PIC24HJ Microcontroller, 40MHz, 128 kB Flash, 64-Pin TQFP

View all Microcontrollers

Subtotal (1 tray of 160 units)*

£694.40

(exc. VAT)

£833.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,840 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
160 +£4.34£694.40

*price indicative

RS Stock No.:
177-3584
Mfr. Part No.:
PIC24HJ128GP306A-I/PT
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

PIC24HJ

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

PIC

Data Bus Width

16bit

Program Memory Size

128 kB

Maximum Frequency

40MHz

RAM Size

16 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

2

Number of CAN Channels

0

Number of USART Channels

0

Number of I2C Channels

2

Typical Operating Supply Voltage

3.6 (Maximum) V

Number of UART Channels

2

Program Memory Type

Flash

Number of PCI Channels

0

Number of Ethernet Channels

0

Number of LIN Channels

0

Height

1.05mm

Automotive Standard

AEC-Q100

Number of ADC Units

1

Instruction Set Architecture

RISC

Length

10mm

ADCs

18 x 12 bit

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Maximum Number of Ethernet Channels

0

Dimensions

10 x 10 x 1.05mm

Width

10mm

Pulse Width Modulation

1 (8 Channel)

The PIC24H 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control.The devices are pin compatible with the dsPIC33F family of devices, and also share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F, dsPIC30F and dsPIC33F devices.

Operating Conditions:
Up to 40 MIPS operation
3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
High-Efficiency PIC24H core:
Code-efficient (C and Assembly) architecture
Single-cycle mixed-sign MUL plus hardware divide
16 x 16 multiply operations
32/16 and 16/16 divide operations
Up to ±16-bit data shifts
