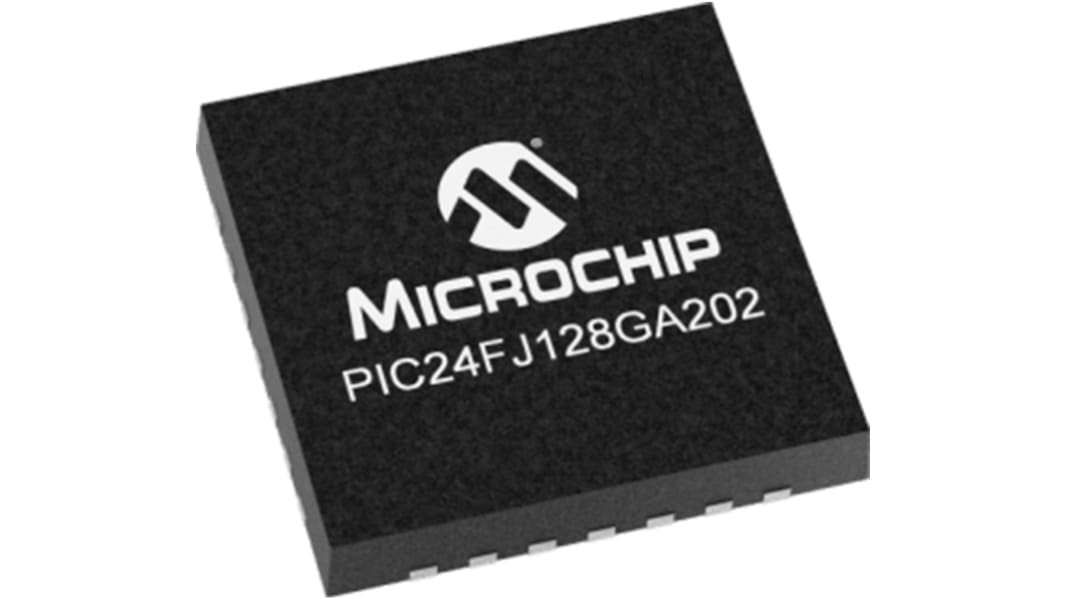

Microchip PIC24FJ128GA202-I/MM, 16bit PIC Microcontroller, PIC24FJ, 32MHz, 128 kB Flash, 28-Pin QFN
- RS Stock No.:
- 177-2225
- Mfr. Part No.:
- PIC24FJ128GA202-I/MM
- Brand:
- Microchip
Subtotal (1 tube of 61 units)**
£209.84
(exc. VAT)
£251.93
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Tube** |
|---|---|---|
| 61 + | £3.44 | £209.84 |
**price indicative
- RS Stock No.:
- 177-2225
- Mfr. Part No.:
- PIC24FJ128GA202-I/MM
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC24FJ | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Data Bus Width | 16bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 8 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 3 | |
| Typical Operating Supply Voltage | 3.6 (Maximum) V | |
| Number of UART Channels | 4 | |
| Number of I2C Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 0 | |
| Instruction Set Architecture | Modified Harvard | |
| Number of ADC Units | 1 | |
| Number of LIN Channels | 0 | |
| Width | 6mm | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 6 x 6 x 0.95mm | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 10 x 12 bit | |
| Length | 6mm | |
| Maximum Operating Temperature | +85 °C | |
| Height | 0.95mm | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 1 (6 x 16 bit) | |
