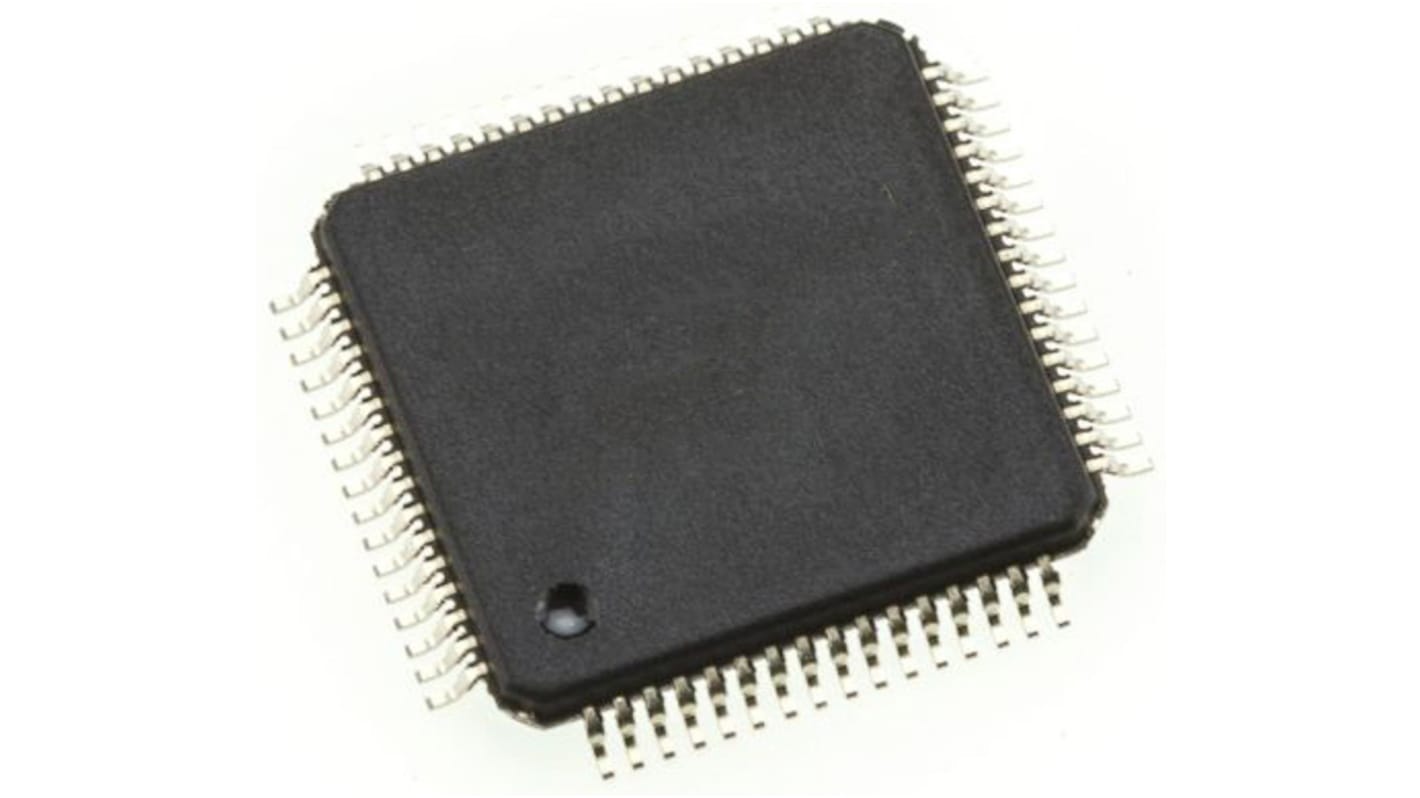

Cypress Semiconductor, 32bit ARM Cortex M0, CY8C4200 Microcontroller, 48MHz, 128 kB Flash, 64-Pin TQFP
- RS Stock No.:
- 177-1252
- Mfr. Part No.:
- CY8C4247AXI-M485
- Brand:
- Cypress Semiconductor
- RS Stock No.:
- 177-1252
- Mfr. Part No.:
- CY8C4247AXI-M485
- Brand:
- Cypress Semiconductor
Select all | Attribute | Value |
|---|---|---|
| Brand | Cypress Semiconductor | |
| Family Name | CY8C4200 | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M0 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 16 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 4 | |
| Number of UART Channels | 4 | |
| Number of CAN Channels | 2 | |
| Number of I2C Channels | 4 | |
| Number of USART Channels | 0 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Length | 14mm | |
| ADCs | 1 x 12 bit | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | Thumb-2 | |
| Minimum Operating Temperature | -40 °C | |
| Width | 14mm | |
| Dimensions | 14 x 14 x 1.4mm | |
| Pulse Width Modulation | 1 (8 x 16 bit) | |
| Number of LIN Channels | 1 | |
| Height | 1.4mm | |
| Program Memory Type | Flash | |
