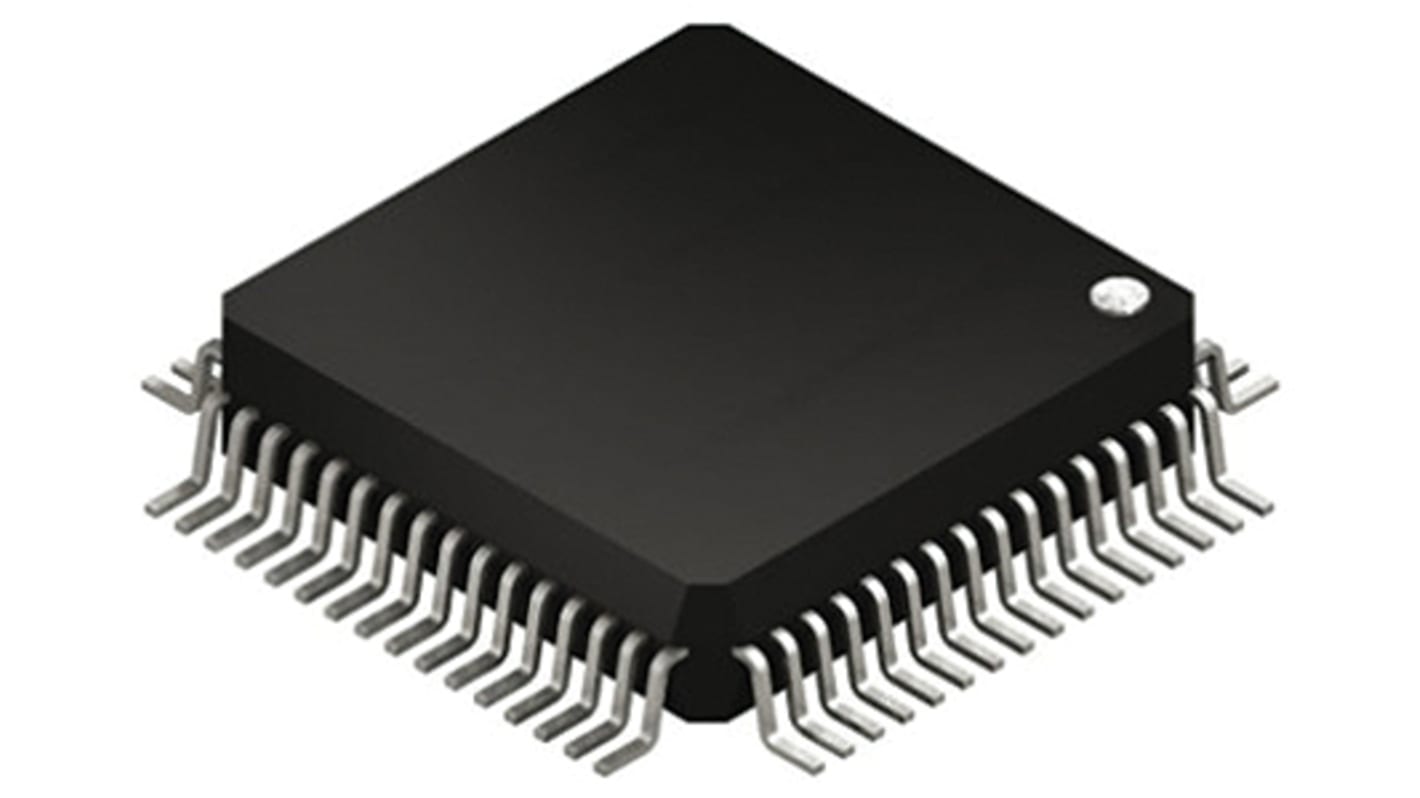

Texas Instruments MSP430F427IPM, 16bit MSP430 Microcontroller, MSP430, 8MHz, 32 kB, 256 B Flash, 64-Pin LQFP
- RS Stock No.:
- 145-1261
- Mfr. Part No.:
- MSP430F427IPM
- Brand:
- Texas Instruments
- RS Stock No.:
- 145-1261
- Mfr. Part No.:
- MSP430F427IPM
- Brand:
- Texas Instruments
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Family Name | MSP430 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | MSP430 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 32 kB, 256 B | |
| Maximum Frequency | 8MHz | |
| RAM Size | 1 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 1 | |
| Number of USART Channels | 1 | |
| Number of I2C Channels | 0 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 3 x 16 bit | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Number of LIN Channels | 0 | |
| Length | 10.2mm | |
| Dimensions | 10.2 x 10.2 x 1.45mm | |
| Height | 1.45mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 10.2mm | |
| ADCs | 3 x 16 bit | |
| Number of ADC Units | 1 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Family Name MSP430 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core MSP430 | ||
Data Bus Width 16bit | ||
Program Memory Size 32 kB, 256 B | ||
Maximum Frequency 8MHz | ||
RAM Size 1 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 1 | ||
Number of USART Channels 1 | ||
Number of I2C Channels 0 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Maximum Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
Pulse Width Modulation 3 x 16 bit | ||
Instruction Set Architecture RISC | ||
Minimum Operating Temperature -40 °C | ||
Number of LIN Channels 0 | ||
Length 10.2mm | ||
Dimensions 10.2 x 10.2 x 1.45mm | ||
Height 1.45mm | ||
Maximum Operating Temperature +85 °C | ||
Width 10.2mm | ||
ADCs 3 x 16 bit | ||
Number of ADC Units 1 | ||
- COO (Country of Origin):
- MY
MSP430F4x Ultra-Low-Power Microcontrollers with LCD Controller, Texas Instruments
Up to 120KB Flash
Up to 8KB RAM
1.8V to 3.6V operation
Unique peripheral mix, ideal for low power metering and medical applications
Features integrated LCD controllers
5 ultra-low power modes of operation
0.1μA RAM retention
0.7μA real-time clock mode
200μA / MHz active
Fast Wake-Up From Standby Mode in < 6μs
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
