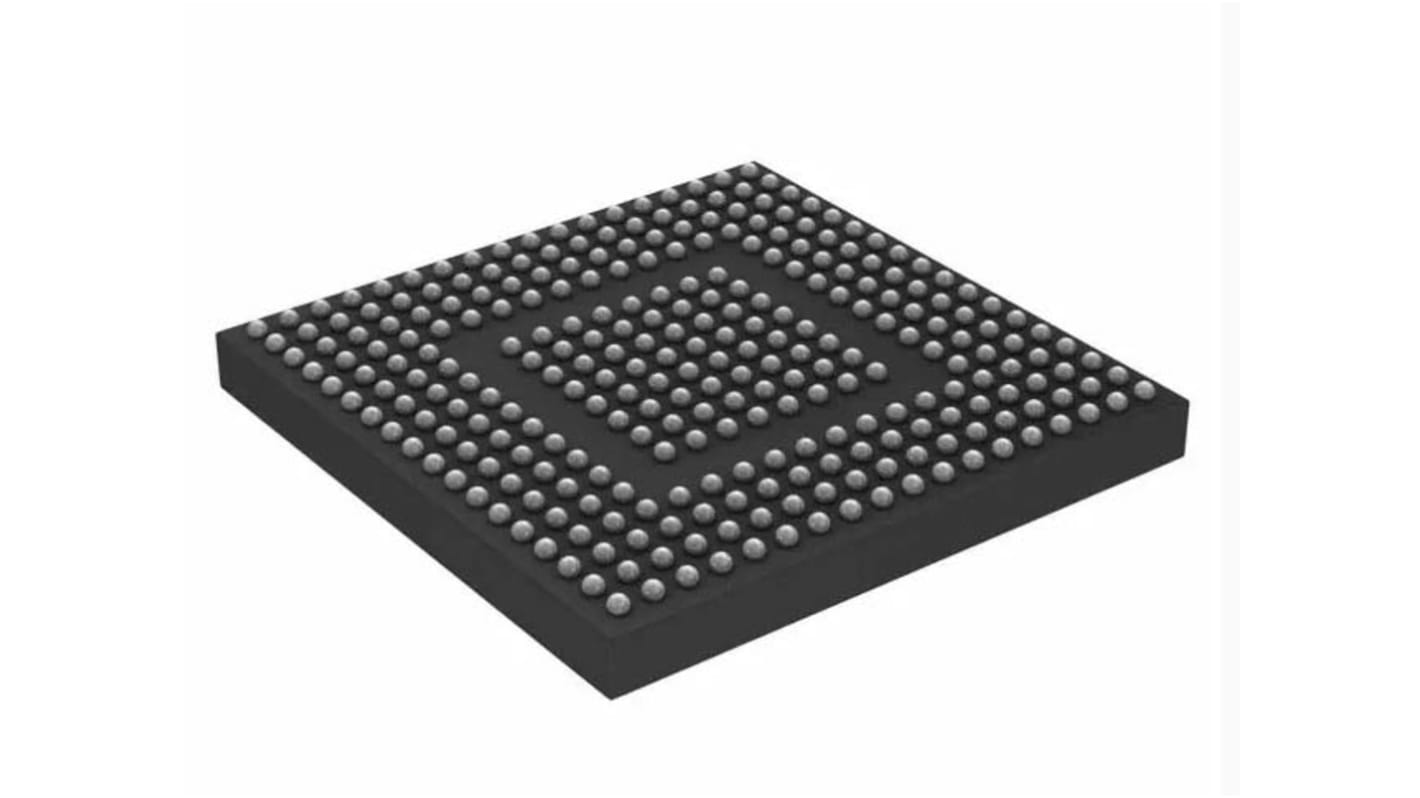

Microchip, 32bit microAptiv CPU, PIC32MZ Microcontroller, 200MHz, 2.048 MB Flash, 288-Pin LFBGA
- RS Stock No.:
- 144-9526P
- Mfr. Part No.:
- PIC32MZ2064DAA288-I/4J
- Brand:
- Microchip
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 144-9526P
- Mfr. Part No.:
- PIC32MZ2064DAA288-I/4J
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC32MZ | |
| Package Type | LFBGA | |
| Mounting Type | Surface Mount | |
| Pin Count | 288 | |
| Device Core | microAptiv CPU | |
| Data Bus Width | 32bit | |
| Program Memory Size | 2.048 MB | |
| Maximum Frequency | 200MHz | |
| RAM Size | 640 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 6 | |
| Number of UART Channels | 6 | |
| Number of I2C Channels | 5 | |
| Number of CAN Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 (Core) V | |
| Number of USART Channels | 0 | |
| Height | 1mm | |
| Program Memory Type | Flash | |
| Number of LIN Channels | 0 | |
| Instruction Set Architecture | MIPS32 | |
| Width | 22mm | |
| Dimensions | 15 x 15 x 1mm | |
| Pulse Width Modulation | 1 (9 Channel) | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Length | 22mm | |
| Number of ADC Units | 1 | |
| Maximum Number of Ethernet Channels | 1 | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 1 | |
| ADCs | 45 x 12 bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name PIC32MZ | ||
Package Type LFBGA | ||
Mounting Type Surface Mount | ||
Pin Count 288 | ||
Device Core microAptiv CPU | ||
Data Bus Width 32bit | ||
Program Memory Size 2.048 MB | ||
Maximum Frequency 200MHz | ||
RAM Size 640 kB | ||
USB Channels 1 | ||
Number of PWM Units 0 | ||
Number of SPI Channels 6 | ||
Number of UART Channels 6 | ||
Number of I2C Channels 5 | ||
Number of CAN Channels 2 | ||
Typical Operating Supply Voltage 1.8 (Core) V | ||
Number of USART Channels 0 | ||
Height 1mm | ||
Program Memory Type Flash | ||
Number of LIN Channels 0 | ||
Instruction Set Architecture MIPS32 | ||
Width 22mm | ||
Dimensions 15 x 15 x 1mm | ||
Pulse Width Modulation 1 (9 Channel) | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Length 22mm | ||
Number of ADC Units 1 | ||
Maximum Number of Ethernet Channels 1 | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 1 | ||
ADCs 45 x 12 bit | ||
PIC32MZ DA series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.
200 MHz/330 DMIPS, MIPS32 microAptiv core
Dual Panel Flash for live update support
12-bit, 18 MSPS, 45-channel ADC module
Memory Management Unit for optimum embedded OS execution
microMIPS mode for up to 35% code compression
CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
SPI/I2S interfaces for audio processing and playback
Hi-Speed USB Device/Host/OTG
10/100 Mbps Ethernet MAC with MII and RMII interface
Advanced Memory Protection
2MB Flash memory (plus an additional 160 KB of Boot Flash)
640KB SRAM memory
Dual Panel Flash for live update support
12-bit, 18 MSPS, 45-channel ADC module
Memory Management Unit for optimum embedded OS execution
microMIPS mode for up to 35% code compression
CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
SPI/I2S interfaces for audio processing and playback
Hi-Speed USB Device/Host/OTG
10/100 Mbps Ethernet MAC with MII and RMII interface
Advanced Memory Protection
2MB Flash memory (plus an additional 160 KB of Boot Flash)
640KB SRAM memory
