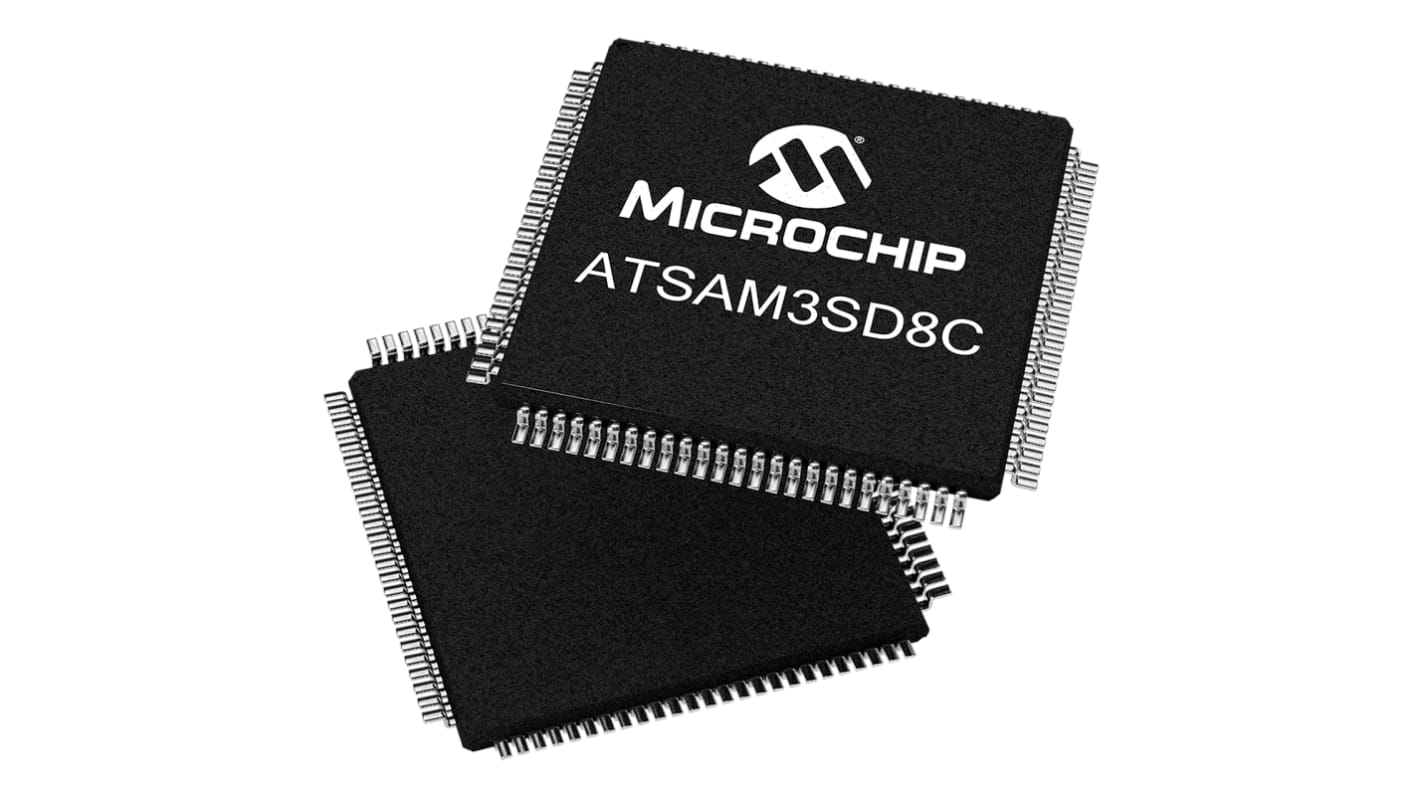

Microchip ATSAM3SD8CA-AU, 32bit ARM Cortex M3 Microcontroller, SAM3SD8, 64MHz, 512 kB Flash, 100-Pin LQFP
- RS Stock No.:
- 131-0987
- Mfr. Part No.:
- ATSAM3SD8CA-AU
- Brand:
- Microchip
- RS Stock No.:
- 131-0987
- Mfr. Part No.:
- ATSAM3SD8CA-AU
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAM3SD8 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 64MHz | |
| RAM Size | 64 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 4 | |
| Number of USART Channels | 2 | |
| Number of I2C Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 V, 3.3 V | |
| Number of UART Channels | 2 | |
| Number of CAN Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Instruction Set Architecture | RISC | |
| Height | 1.45mm | |
| Length | 14mm | |
| ADCs | 16 x 12 bit | |
| Number of ADC Units | 1 | |
| Maximum Number of Ethernet Channels | 0 | |
| Width | 14mm | |
| Dimensions | 14 x 14 x 1.45mm | |
| Number of PCI Channels | 0 | |
| Number of LIN Channels | 0 | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 1 (4 x 16 bit) | |
