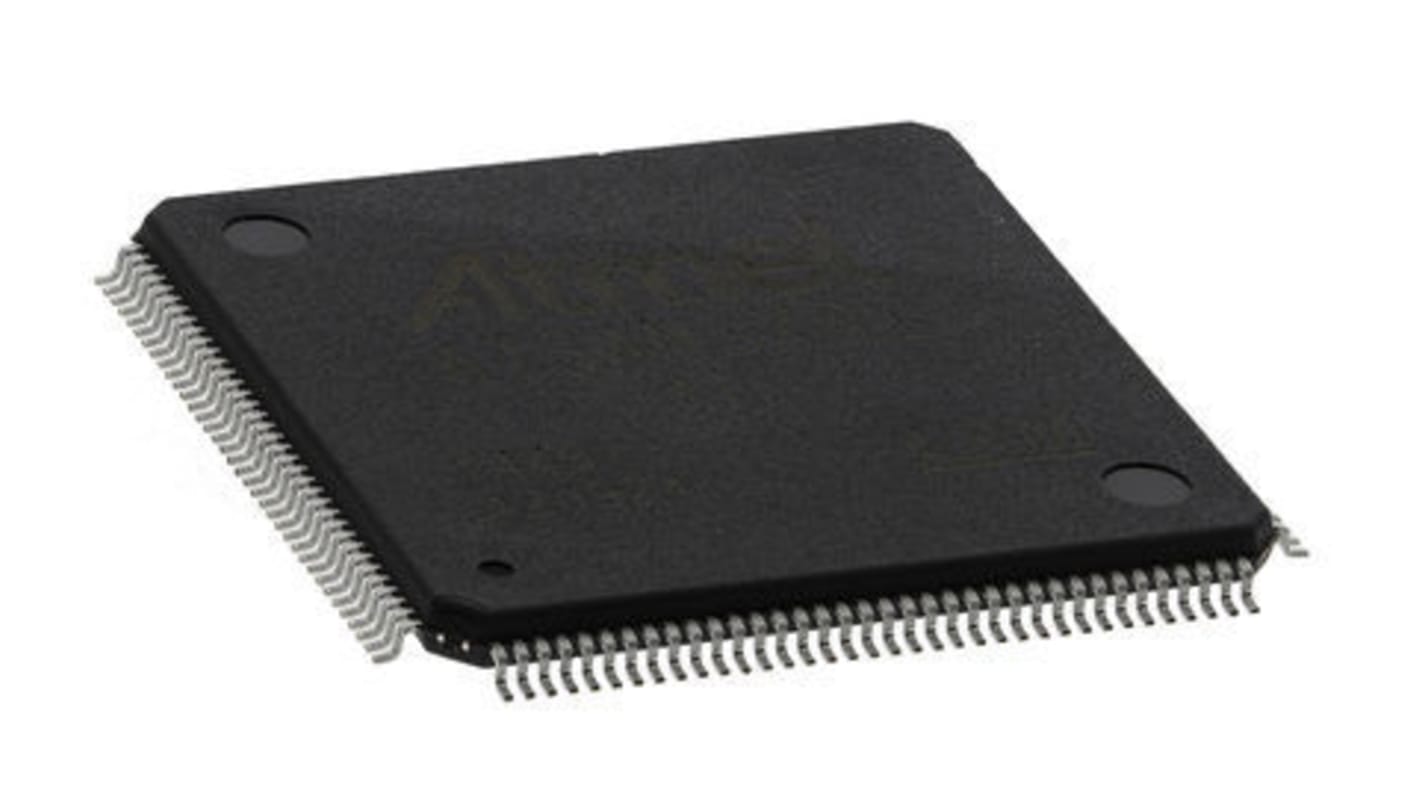

Renesas Electronics, 32bit, RX64M Microcontroller, 120MHz, 2.5 MB Flash, 144-Pin LQFP

View all Microcontrollers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
126-2497
Mfr. Part No.:
R5F564MGCDFB#31
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Family Name

RX64M

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Data Bus Width

32bit

Program Memory Size

2.5 MB

Maximum Frequency

120MHz

RAM Size

512 kB

USB Channels

1

Typical Operating Supply Voltage

2.7 → 3.6 V

Width

20.1mm

ADCs

1(29 x 12 bit)

Length

20.1mm

Instruction Set Architecture

CISC Harvard

Height

1.55mm

Dimensions

20.1 x 20.1 x 1.55mm

Minimum Operating Temperature

-40 °C

Program Memory Type

Flash

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

COO (Country of Origin):
CN

RX64M Microcontrollers


The RX64M family of 32-bit microcontrollers features 120MHz high-speed operation, large-capacity on-chip memory and Ethernet communication.

• 120MHz 32-bit RXv2 core microcontroller
• Up to 4MB Flash memory
• 64KB Data Flash memory
• 552KB RAM (512KB ECC, 32KB Non-ECC, 8KB Standby)
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision IEEE 754 Floating Point maths unit
• Memory Protection Unit
• Data Encryption Modules (AES, DES, SHA, RNG)
• 4-channel DMA Controller
• Data Transfer Controller
• Serial Communication: SPI, QSPI, I²C, USB, SD Host, MMC Host, CAN, Ethernet
• Serial Sound Interface
• Programmable Pulse Generator
• 4-channel PWM Timer
• Real-Time Clock
• 14-bit Independent Watchdog Timer
• CRC Calculator
• Data Operation Circuit
• Clock Frequency Accuracy Measurement Circuit
• Temperature sensor
• On-chip Debug and Trace
• Power supply: +2.7 to +3.6Vdc (+3.0 to +3.6V when using USB)
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
