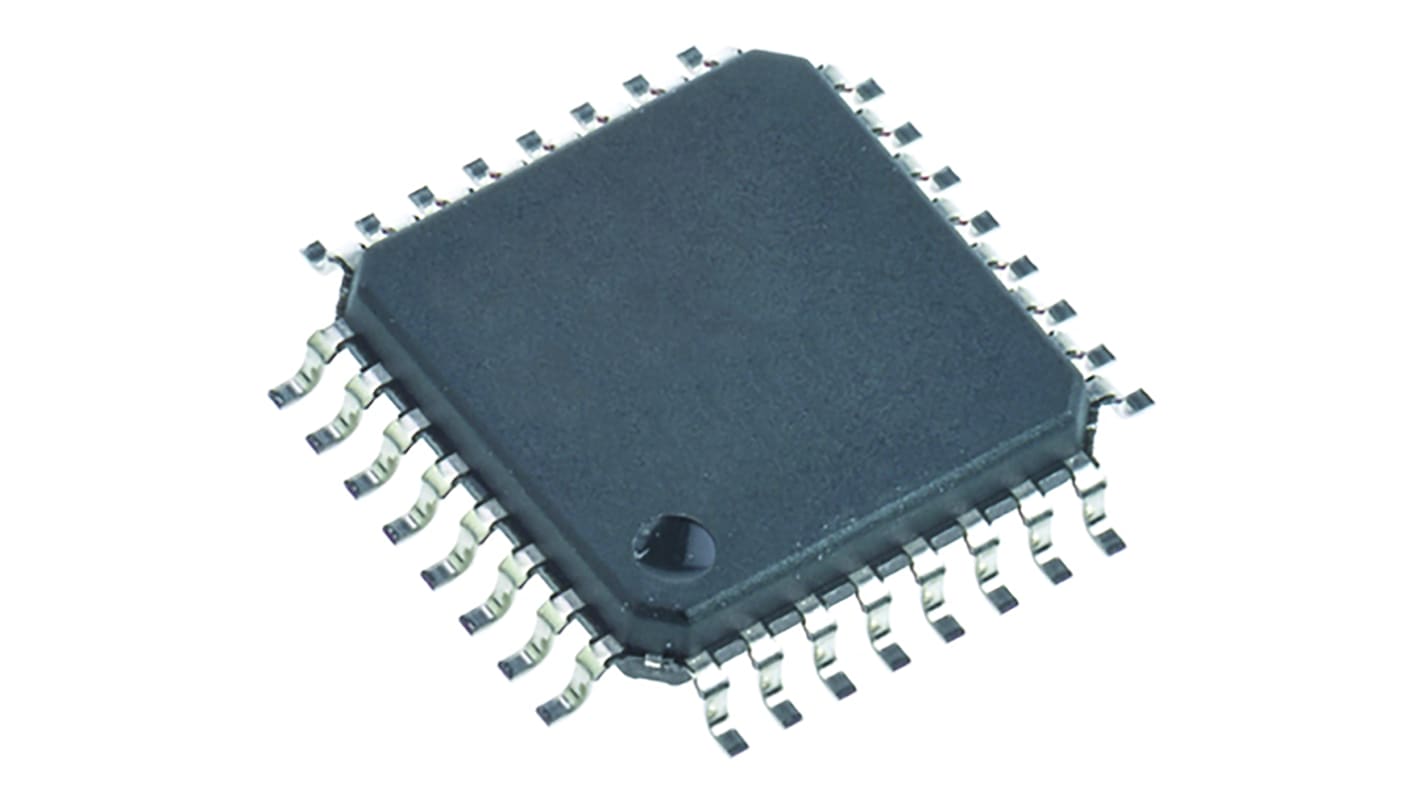

Renesas Electronics, 16bit RL78, RL78/G1G Microcontroller, 24MHz, 16 kB Flash, 32-Pin LQFP
- RS Stock No.:
- 124-0545
- Mfr. Part No.:
- R5F11EBAAFP#30
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-0545
- Mfr. Part No.:
- R5F11EBAAFP#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RL78/G1G | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | RL78 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 1.5 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Length | 7mm | |
| Maximum Operating Temperature | +85 °C | |
| Instruction Set Architecture | CISC | |
| Dimensions | 7 x 7 x 1.4mm | |
| Minimum Operating Temperature | -40 °C | |
| ADCs | 8 x 8/10 bit | |
| Height | 1.4mm | |
| Width | 7mm | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RL78/G1G | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core RL78 | ||
Data Bus Width 16bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 1.5 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Program Memory Type Flash | ||
Number of ADC Units 1 | ||
Length 7mm | ||
Maximum Operating Temperature +85 °C | ||
Instruction Set Architecture CISC | ||
Dimensions 7 x 7 x 1.4mm | ||
Minimum Operating Temperature -40 °C | ||
ADCs 8 x 8/10 bit | ||
Height 1.4mm | ||
Width 7mm | ||
- COO (Country of Origin):
- CN
RL78/G1G, 16-Bit Microcontrollers, Renesas Electronics
The Renesas RL78/G1G devices are 16-bit Microcontrollers from the RL78 family that offer high performance for applications where low power consumption is key. Comprehensive power-saving modes mean that standby consumption of 0.7 μA can be achieved.
RL78/G1G devices feature a set of enhanced analogue peripherals that tailor them to motor control applications. Peripherals include a PWM timer, programmable gain amplifier (PGA) and a fast comparator.
RL78/G1G devices feature a set of enhanced analogue peripherals that tailor them to motor control applications. Peripherals include a PWM timer, programmable gain amplifier (PGA) and a fast comparator.
Microcontroller Features
16-Bit RL78 CPU core
Maximum 24 MHz CPU operation
CISC architecture
High-speed on-chip oscillator – configurable from 48 MHz to 1 MHz
Power-on-reset (POR) and programmable low voltage detect (LVD)
Event link controller (ELC)
Maximum 24 MHz CPU operation
CISC architecture
High-speed on-chip oscillator – configurable from 48 MHz to 1 MHz
Power-on-reset (POR) and programmable low voltage detect (LVD)
Event link controller (ELC)
Low-Power Features
HALT, STOP and SNOOZE power-saving modes
Configurable instruction execution time - 0.04167 μs at 24 MHz to 1.0 μs at 32.768 kHz
2.7 V to 5.5 V supply
Configurable instruction execution time - 0.04167 μs at 24 MHz to 1.0 μs at 32.768 kHz
2.7 V to 5.5 V supply
Peripheral Features
8/10-bit analogue-to-digital converter (ADC) – 8 or 12 channels (model dependent)
Comparator – 2 channels
Programmable gain amplifier (PGA) – 1 channel
16-bit timer – 7 channels
PWM timer – 9 channels
Comparator – 2 channels
Programmable gain amplifier (PGA) – 1 channel
16-bit timer – 7 channels
PWM timer – 9 channels
Communication Features
Clocked serial interface (CSI) – 1 channel
Simplified I2C – 1 channel
UART – 2 channels
Simplified I2C – 1 channel
UART – 2 channels
RL78 Family Microcontrollers, Renesas Electronics
