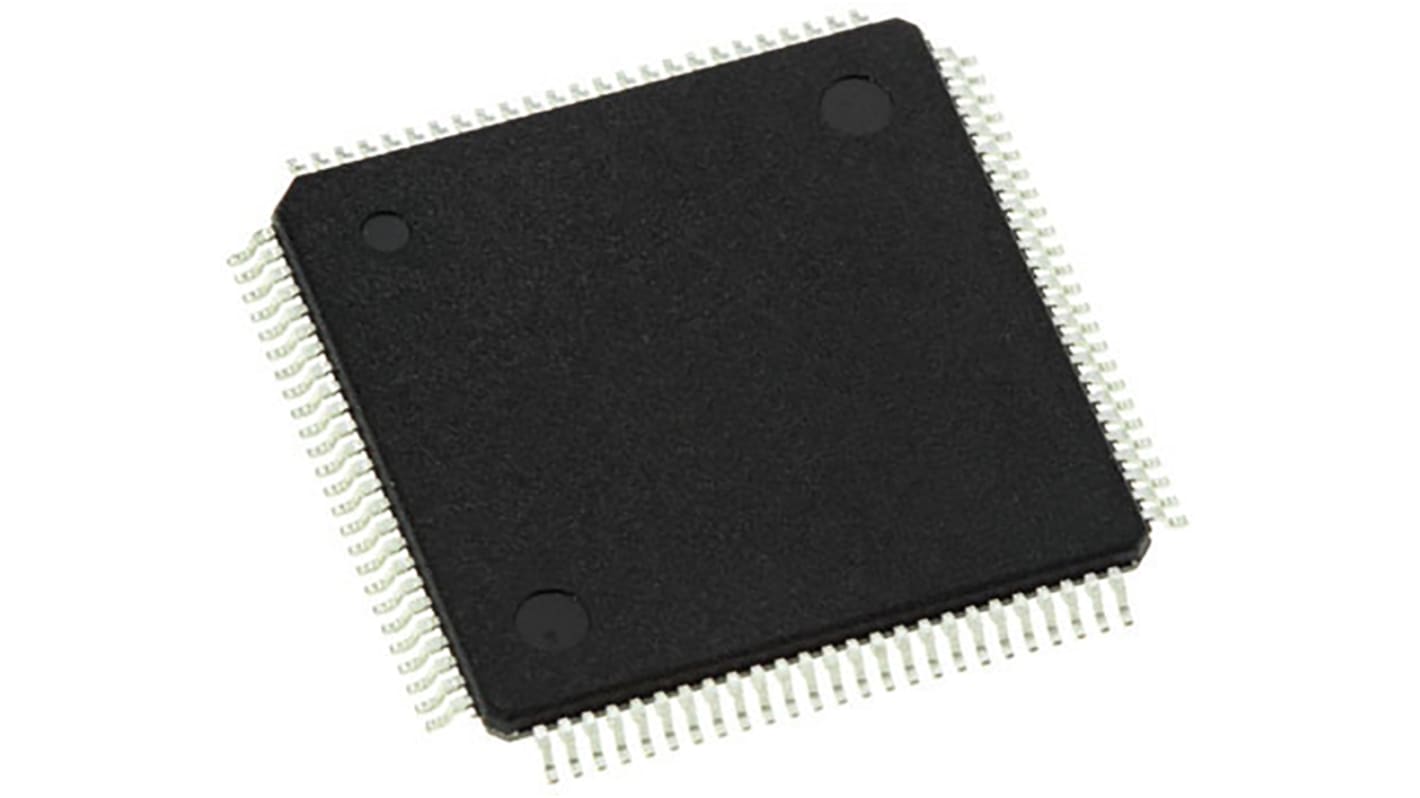

Renesas Electronics, 32bit RXv2 CPU, RX24T Microcontroller, 80MHz, 256 kB Flash, 100-Pin LFQFP
- RS Stock No.:
- 124-0494
- Mfr. Part No.:
- R5F524TAADFP#30
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 124-0494
- Mfr. Part No.:
- R5F524TAADFP#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RX24T | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | RXv2 CPU | |
| Data Bus Width | 32bit | |
| Program Memory Size | 256 kB | |
| Maximum Frequency | 80MHz | |
| RAM Size | 16 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Width | 14.1mm | |
| Instruction Set Architecture | CISC Harvard | |
| Dimensions | 14.1 x 14.1 x 1.55mm | |
| Minimum Operating Temperature | -40 °C | |
| Length | 14.1mm | |
| ADCs | 17 x 12 bit | |
| Height | 1.55mm | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RX24T | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core RXv2 CPU | ||
Data Bus Width 32bit | ||
Program Memory Size 256 kB | ||
Maximum Frequency 80MHz | ||
RAM Size 16 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Maximum Operating Temperature +85 °C | ||
Program Memory Type Flash | ||
Number of ADC Units 1 | ||
Width 14.1mm | ||
Instruction Set Architecture CISC Harvard | ||
Dimensions 14.1 x 14.1 x 1.55mm | ||
Minimum Operating Temperature -40 °C | ||
Length 14.1mm | ||
ADCs 17 x 12 bit | ||
Height 1.55mm | ||
- COO (Country of Origin):
- CN
RX24T Microcontrollers
The RX24T microcontroller is designed for dual-inverter applications with complex control algorithms.
• 80MHz 32-bit RXv2 core microcontroller
• Up to 256KB Program Flash memory, 8KB Data Flash
• 16KB SRAM
• 32-bit multiplier/divider with multiply-accumulate
• Memory Protection Unit
• Data Transfer Controller
• Serial communication: SCI, SPI, I²C
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• Register write protection
• CRC Calculator
• Low-Power Modes: Sleep, Deep Sleep, Software Standby
