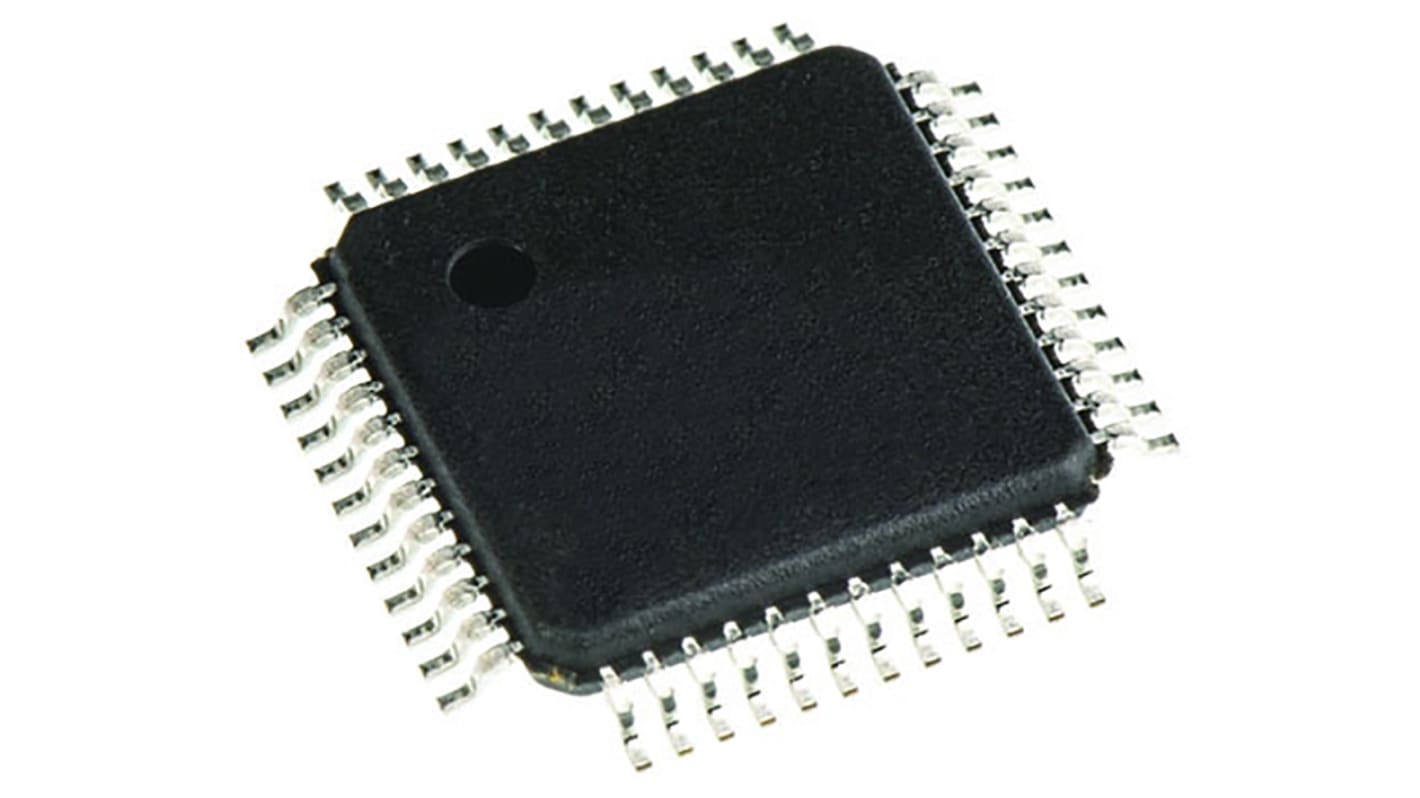

Renesas Electronics, 32bit RXv2 CPU, RX231 Microcontroller, 54MHz, 512 kB Flash, 48-Pin LFQFP
- RS Stock No.:
- 124-0477
- Mfr. Part No.:
- R5F52318ADFL#30
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 unit)*
£5.79
(exc. VAT)
£6.95
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £5.79 |
| 5 - 9 | £5.16 |
| 10 - 49 | £4.88 |
| 50 - 99 | £4.12 |
| 100 + | £4.01 |
*price indicative
- RS Stock No.:
- 124-0477
- Mfr. Part No.:
- R5F52318ADFL#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RX231 | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | RXv2 CPU | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 54MHz | |
| RAM Size | 64 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 7.1 x 7.1 x 1.55mm | |
| Instruction Set Architecture | CISC Harvard | |
| Width | 7.1mm | |
| Height | 1.55mm | |
| ADCs | 8 x 12 bit | |
| Length | 7.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Program Memory Type | Flash | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RX231 | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core RXv2 CPU | ||
Data Bus Width 32bit | ||
Program Memory Size 512 kB | ||
Maximum Frequency 54MHz | ||
RAM Size 64 kB | ||
USB Channels 1 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 7.1 x 7.1 x 1.55mm | ||
Instruction Set Architecture CISC Harvard | ||
Width 7.1mm | ||
Height 1.55mm | ||
ADCs 8 x 12 bit | ||
Length 7.1mm | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Program Memory Type Flash | ||
- COO (Country of Origin):
- CN
RX231 Microcontrollers
The RX231 devices are 32-bit microcontrollers that can deliver up to 88.56DMIPS, support Floating Point maths operations and offer an extensive suite of on-board peripherals to suit general purpose applications.
• 54MHz 32-bit RXv2 core microcontroller with FPU
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Real-Time clock with battery back-up
• Up to 24-channel Capacitive Touch Interface Unit
• Serial communication: I²C, SPI, USB, CAN, SSI, SDHI
• AES-128/256 encryption
• Memory Protection Unit
• Event Link Controller
• Temperature sensor
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• CRC Calculator
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Real-Time clock with battery back-up
• Up to 24-channel Capacitive Touch Interface Unit
• Serial communication: I²C, SPI, USB, CAN, SSI, SDHI
• AES-128/256 encryption
• Memory Protection Unit
• Event Link Controller
• Temperature sensor
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• CRC Calculator
