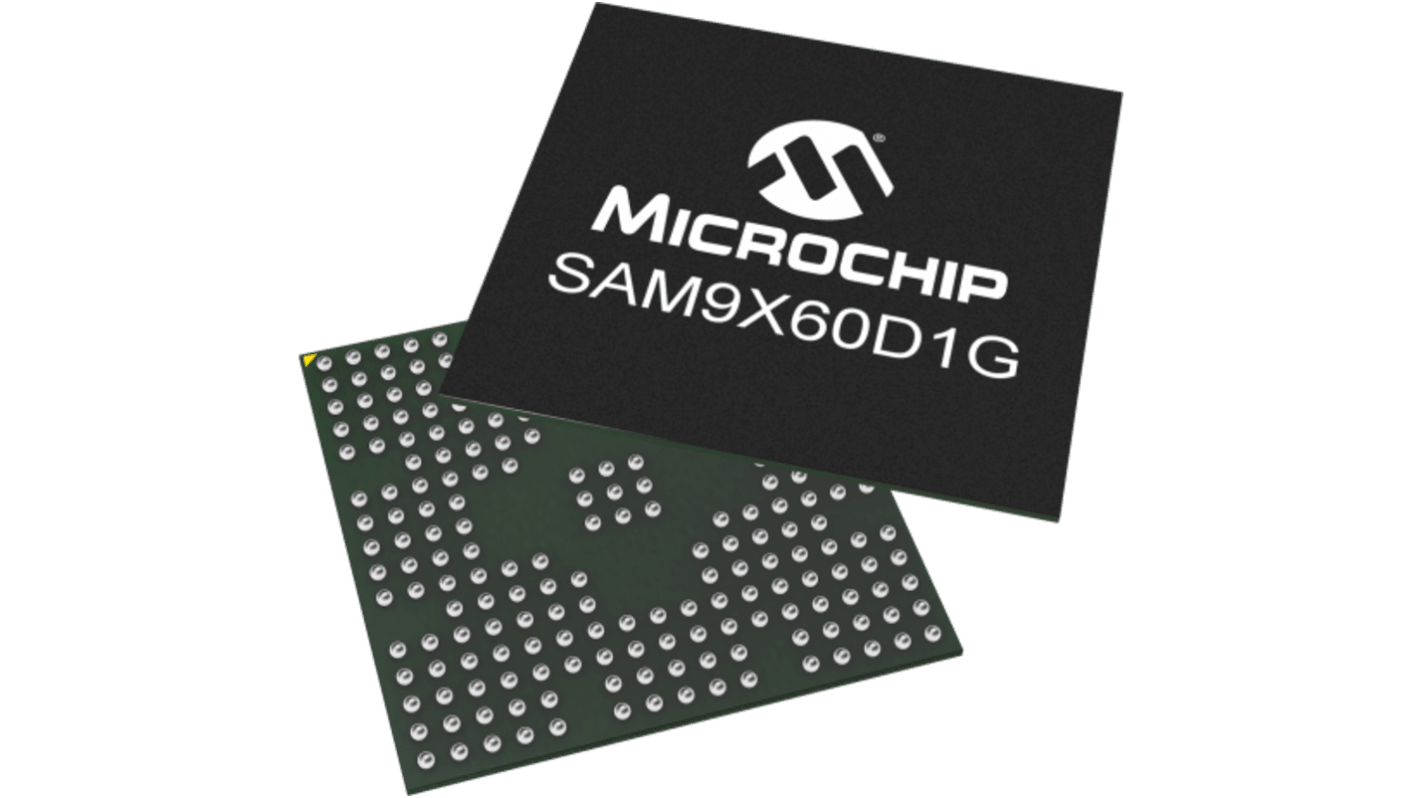

Microchip SAM9X60D1G-I/4FB ARM926EJ-S Microcontroller SAM9X60 32 bit Arm Cortex 600 MHz 233-Pin TFBGA
- RS Stock No.:
- 566-016
- Mfr. Part No.:
- SAM9X60D1G-I/4FB
- Brand:
- Microchip
Subtotal (1 unit)*
£9.02
(exc. VAT)
£10.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 115 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.02 |
*price indicative
- RS Stock No.:
- 566-016
- Mfr. Part No.:
- SAM9X60D1G-I/4FB
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Microcontroller | |
| Series | SAM9X60 | |
| Device Core | ARM926EJ-S | |
| Data Bus Width | 32bit | |
| Instruction Set Architecture | Arm Cortex | |
| Maximum Clock Frequency | 600MHz | |
| Interface Type | USB, SDIO, 10/100 Base-TX, ADC, LCD, CAN, I2S, FLEXCOM, Parallel, MMC, NAND, QSPI | |
| Mount Type | Surface | |
| Package Type | TFBGA | |
| Pin Count | 233 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Height | 1.2mm | |
| Standards/Approvals | NIST Special Publication 800-22, FIPS PUBs 140-2 and 140-3, FIPS PUB 46-3, FIPS PUB 197, FIPS PUB 180-2 | |
| Width | 11 mm | |
| Length | 11mm | |
| Number of Cores | 1 | |
| Automotive Standard | AEC-Q100 Grade 2 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Microcontroller | ||
Series SAM9X60 | ||
Device Core ARM926EJ-S | ||
Data Bus Width 32bit | ||
Instruction Set Architecture Arm Cortex | ||
Maximum Clock Frequency 600MHz | ||
Interface Type USB, SDIO, 10/100 Base-TX, ADC, LCD, CAN, I2S, FLEXCOM, Parallel, MMC, NAND, QSPI | ||
Mount Type Surface | ||
Package Type TFBGA | ||
Pin Count 233 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Height 1.2mm | ||
Standards/Approvals NIST Special Publication 800-22, FIPS PUBs 140-2 and 140-3, FIPS PUB 46-3, FIPS PUB 197, FIPS PUB 180-2 | ||
Width 11 mm | ||
Length 11mm | ||
Number of Cores 1 | ||
Automotive Standard AEC-Q100 Grade 2 | ||
- COO (Country of Origin):
- TW
The Microchip High-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 1Gbit integrated DDR2 memory. It supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.
64 kB internal SRAM
24-bit LCD Controller with overlays up to 1024x768 resolution
2D Graphics Engine, Camera Interface
Built-in Class D Amplifier
