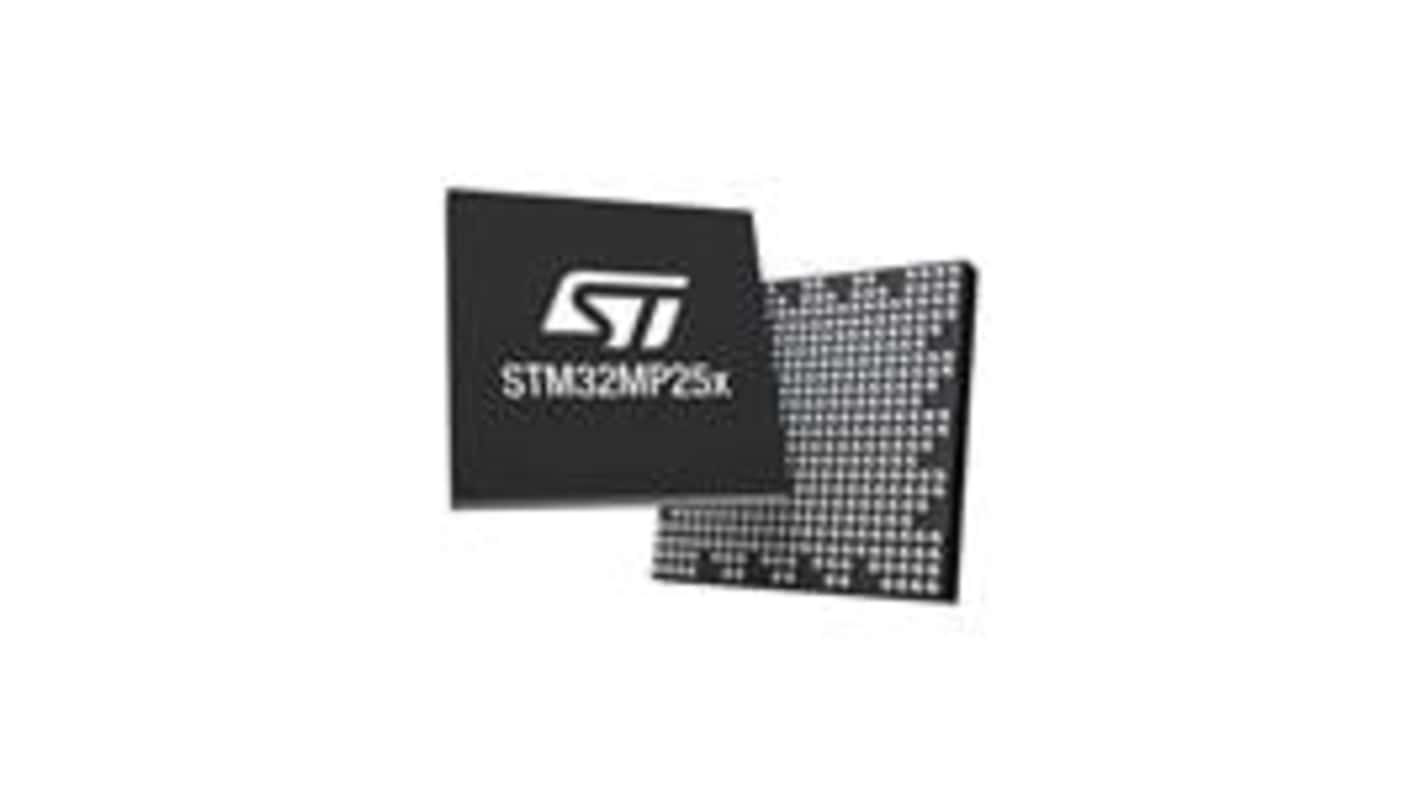

STMicroelectronics, 16 bit, STM32MP25xA/D Microcontroller, 1.5 GHz FLASH, 424-Pin VFBGA-424
- RS Stock No.:
- 330-388P
- Mfr. Part No.:
- STM32MP255DAK3T
- Brand:
- STMicroelectronics
Subtotal 1 unit (supplied on a continuous strip)*
£14.13
(exc. VAT)
£16.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,400 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.13 |
*price indicative
- RS Stock No.:
- 330-388P
- Mfr. Part No.:
- STM32MP255DAK3T
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Series | STM32MP25xA/D | |
| Product Type | Microcontroller | |
| Package Type | VFBGA-424 | |
| Mount Type | Surface | |
| Pin Count | 424 | |
| Data Bus Width | 16bit | |
| Maximum Clock Frequency | 1.5GHz | |
| RAM Size | 808kB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 14 mm | |
| Length | 16mm | |
| DACs | 2 x 12 Bit | |
| Number of Programmable I/Os | 172 | |
| Height | 7mm | |
| Standards/Approvals | ECOPACK2 | |
| Maximum Expanded Memory Size | 4GB | |
| Minimum Supply Voltage | 1.71V | |
| Instruction Set Architecture | Arm Cortex | |
| Number of Timers | 34 | |
| Program Memory Type | FLASH | |
| ADCs | 12 Bit, 16 Bit | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Series STM32MP25xA/D | ||
Product Type Microcontroller | ||
Package Type VFBGA-424 | ||
Mount Type Surface | ||
Pin Count 424 | ||
Data Bus Width 16bit | ||
Maximum Clock Frequency 1.5GHz | ||
RAM Size 808kB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 14 mm | ||
Length 16mm | ||
DACs 2 x 12 Bit | ||
Number of Programmable I/Os 172 | ||
Height 7mm | ||
Standards/Approvals ECOPACK2 | ||
Maximum Expanded Memory Size 4GB | ||
Minimum Supply Voltage 1.71V | ||
Instruction Set Architecture Arm Cortex | ||
Number of Timers 34 | ||
Program Memory Type FLASH | ||
ADCs 12 Bit, 16 Bit | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The STMicroelectronics devices are based on the high-performance single or dual-core Arm Cortex A35 64-bit RISC core operating at up to 1.5 GHz. The Cortex A35 processor includes a 32-Kbyte L1 instruction cache for each CPU, a 32-Kbyte L1 data cache for each CPU, and a 512-Kbyte L2 cache. The Cortex-A35 processor uses a highly efficient 8-stage in-order pipeline that has been extensively optimized to provide full Armv8-A features while maximizing area and power efficiency. Advices also embed a Cortex-M33 32-bit RISC core operating at up to 400 MHz frequency. The Cortex-M33 core features a floating point unit (FPU) single precision which supports Arm single-precision data-processing instructions, and data types. The Cortex-M33 supports a full set of DSP instructions, Trust Zone, and a memory protection unit (MPU) which enhances application security.
Dedicated supplies for Cortex A35 and GPU or NPU (if present)
Internal temperature sensors
Low-power modes are Sleep, Stop, and Standby
DDR memory retention in Standby mode
