Renesas Electronics MCU Starter Kit YR0K505111S000BE
- RS Stock No.:
- 903-1479
- Mfr. Part No.:
- YR0K505111S000BE
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 903-1479
- Mfr. Part No.:
- YR0K505111S000BE
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Classification | Starter Kit | |
| Technology | MCU | |
| Processor Family Name | RX | |
| Processor Part Number | RX111 | |
| Processor Type | MCU | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Classification Starter Kit | ||
Technology MCU | ||
Processor Family Name RX | ||
Processor Part Number RX111 | ||
Processor Type MCU | ||
- COO (Country of Origin):
- GB

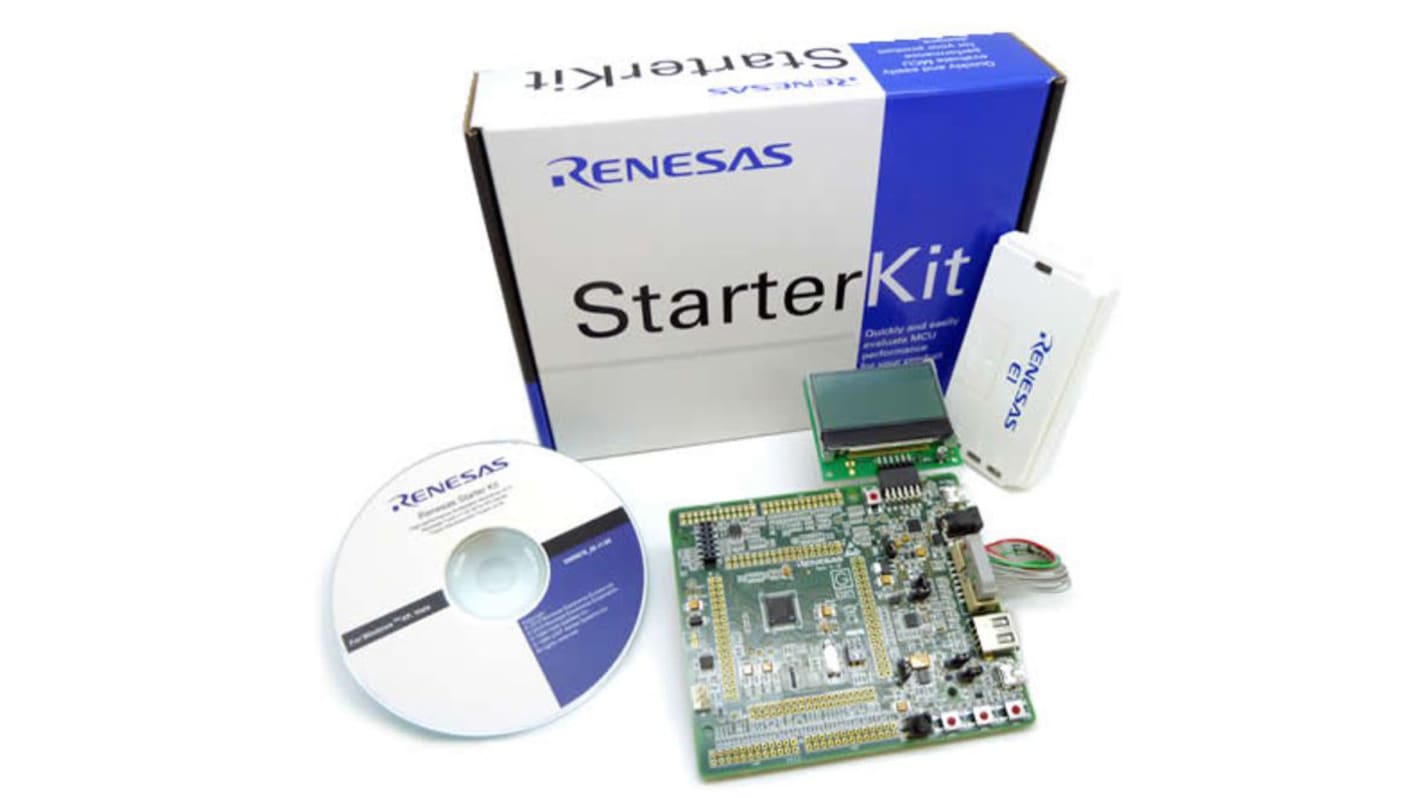

Starter Kit for RX111 Microcontrollers
The Starter Kit RX111 with e2studio is an evaluation tool intended for use with the RX111 32-bit microcontroller series. The board offers an e2studio platform enabling the user to develop applications exploiting the features of the MCU. It can be connected to the host PC with the USB E1 on chip debugging interface.
• 16MHz R5F51115ADFM RX 32-bit microcontroller
• USB-UART bridge provided by RL78/G1C 16-bit microcontroller
• On-board I²C serial bus 16kbit EEPROM
• Pmod connector for LCD module
• Pmod connector for expansion module
• LIN bus connector
• USB-miniB serial socket
• USB-A Host socket
• USB-miniB function socket
• Header for E1 Debug module connection
• Barrel jack socket for +5V DC power supply
• User potentiometer input to microcontroller ADC
• Reset pushbutton
• 4 x User pushbuttons
• 4 x User LEDs
• Dimensions: 120 x 92.71mm
• e2studio C/C++ Compiler Package for RX Family Evaluation Version E1 Emulator Debugger
• USB-UART bridge provided by RL78/G1C 16-bit microcontroller
• On-board I²C serial bus 16kbit EEPROM
• Pmod connector for LCD module
• Pmod connector for expansion module
• LIN bus connector
• USB-miniB serial socket
• USB-A Host socket
• USB-miniB function socket
• Header for E1 Debug module connection
• Barrel jack socket for +5V DC power supply
• User potentiometer input to microcontroller ADC
• Reset pushbutton
• 4 x User pushbuttons
• 4 x User LEDs
• Dimensions: 120 x 92.71mm
• e2studio C/C++ Compiler Package for RX Family Evaluation Version E1 Emulator Debugger
Supplied with
Monochrome LCD display board with Pmod™ connector , Detachable potentiometer adjustment shaft, E1 Debug pod, Cables, Quick Start Guide, User Manual, DVD-ROM
