Silicon Labs Starter Kit SLWSTK6201A

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
865-2343
Mfr. Part No.:
SLWSTK6201A
Brand:
Silicon Labs
Find similar products by selecting one or more attributes.
Select all

Brand

Silicon Labs

Technology

Starter Kit

Device Core

ARM Cortex M3

Processor Family Name

ARM

Processor Part Number

EZR32LG330F256R55G

Processor Type

MCU

EZR32LG Leopard Gecko Wireless Starter Kits


The EZR32LG range of Leopard Gecko Wireless Starter Kits have been designed for the evaluation of EZR32LG SoCs in the development of wireless applications. A range of kits is available covering the ISM frequency bands. Each kit consists of two Mainboards and two plug-in radio boards for the desired frequency band. They are compliant with IEEE 802.15.4g Wireless Personal Area Network (WPAN) and wM-Bus smart metering standards.

EZR32LG Radio Board
EZR32LG330 wireless SoC, ARM Cortex-M3 core, 256KB Flash memory, 32KB RAM
RF Carrier Frequency:
868MHz (RS 865-2356) ISM-Band UK/EU
434MHz (RS 865-2343) ISM-Band UK/EU
915MHz (RS 865-2347) ISM-Band US
RF Power Output: Up to +20dBm
Receiver sensitivity: Up to -133dBm
SMA antenna connector
MicroUSB connector
Headers for Starter Kit connection

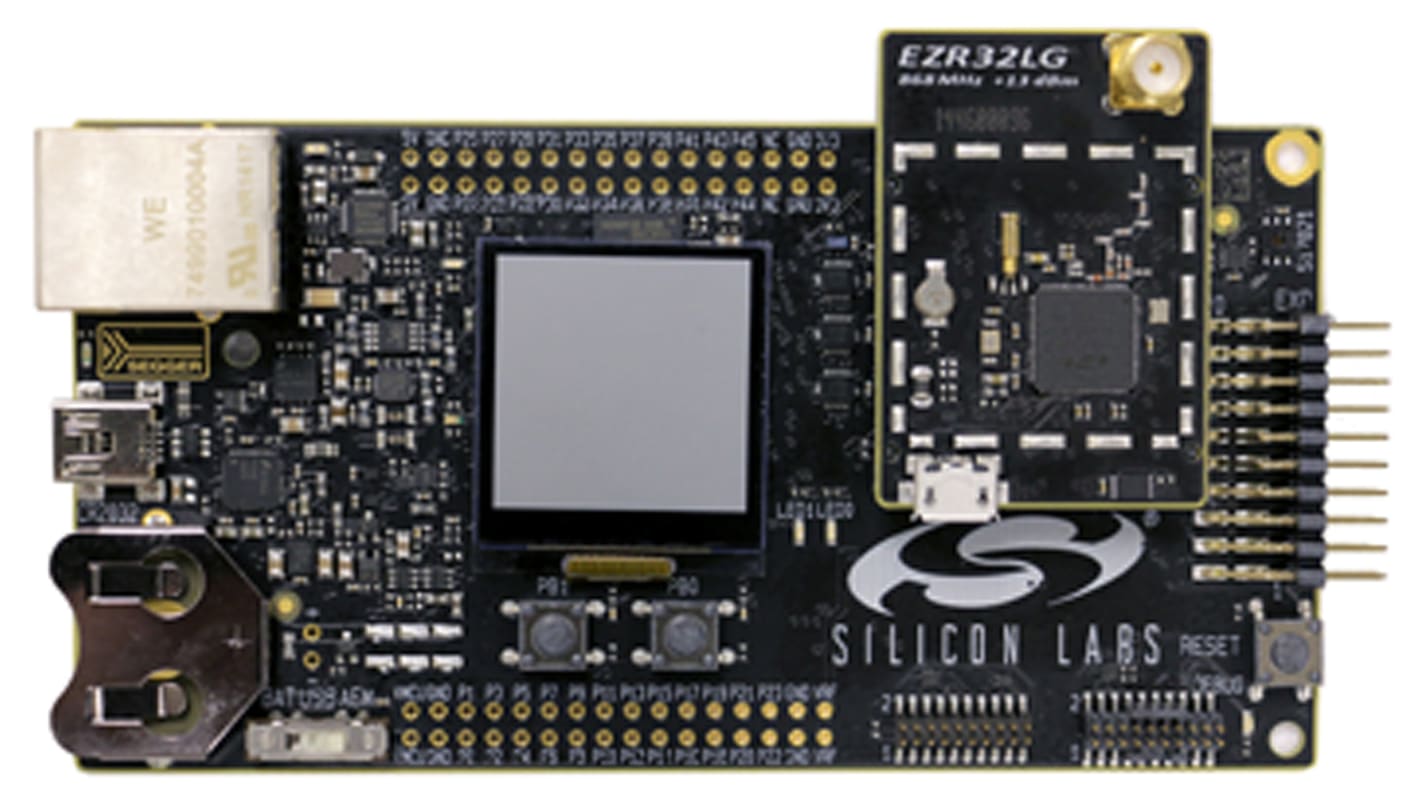

EZR32LG Starter Kit
EZR32LG Radio Board for selected RF Band
128 x 128 pixel memory monochrome LCD on SPI bus
Si7021 Humidity and Temperature Sensor on I2C bus
Reset pushbutton
2 x User pushbuttons
2 x User LEDs
Advanced Energy Monitoring
Packet Trace interface
On-board J-Link debug tool
RJ45 Ethernet connector
MiniUSB connector with Full-Speed USB 2.0
ARM Coresight trace/debug header
Socket for CR2032 Lithium battery
Switch-selectable power source

Supplied with

2 x antenna with SMA connector, 2 x CR2032 lithium batteries, 2 x USB-A USB Mini-B cables, 2 x USB-A USB Micro-B cables.
