Analog Devices Development Kit Development Kit ADZS-BF527-EZLITE
- RS Stock No.:
- 698-1166
- Mfr. Part No.:
- ADZS-BF527-EZLITE
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 698-1166
- Mfr. Part No.:
- ADZS-BF527-EZLITE
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Classification | Development Kit | |
| Technology | Development Kit | |
| Processor Family Name | Blackfin | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Classification Development Kit | ||
Technology Development Kit | ||
Processor Family Name Blackfin | ||
ADSP-BF527 Blackfin® EZ-Kit Lite
The ADSP-BF527 EZ-Kit Lite provides developers with a cost-effective method for initial evaluation of the ADSP-BF527 Blackfin® Processors via a USB-based, PC-hosted tool set.
ADSP-BF527 600MHz DSP
64Mbyte SDRAM, 4Mbyte Flash memory, 4Gbit NAND Flash memory, 16Mbit serial SPI Flash memory
320x240 pixel, 3.5in TFT LCD display with touchscreen
MAX1233 Touch screen and keypad controller
Rotary encoder with Thumbwheel
Keypad
10-BaseT and 100-BaseTX Ethernet controller with SMSC LAN8700 PHY and Auto-MDIX
RS-232 port with DB9 female connector
Low-power audio codec
Stereo LINE IN and LINE OUT jacks
Microphone input jack
JTAG ICE 14-pin header
USB OTG connector
+3.0V Li-Ion RTC battery
64Mbyte SDRAM, 4Mbyte Flash memory, 4Gbit NAND Flash memory, 16Mbit serial SPI Flash memory
320x240 pixel, 3.5in TFT LCD display with touchscreen
MAX1233 Touch screen and keypad controller
Rotary encoder with Thumbwheel
Keypad
10-BaseT and 100-BaseTX Ethernet controller with SMSC LAN8700 PHY and Auto-MDIX
RS-232 port with DB9 female connector
Low-power audio codec
Stereo LINE IN and LINE OUT jacks
Microphone input jack
JTAG ICE 14-pin header
USB OTG connector
+3.0V Li-Ion RTC battery

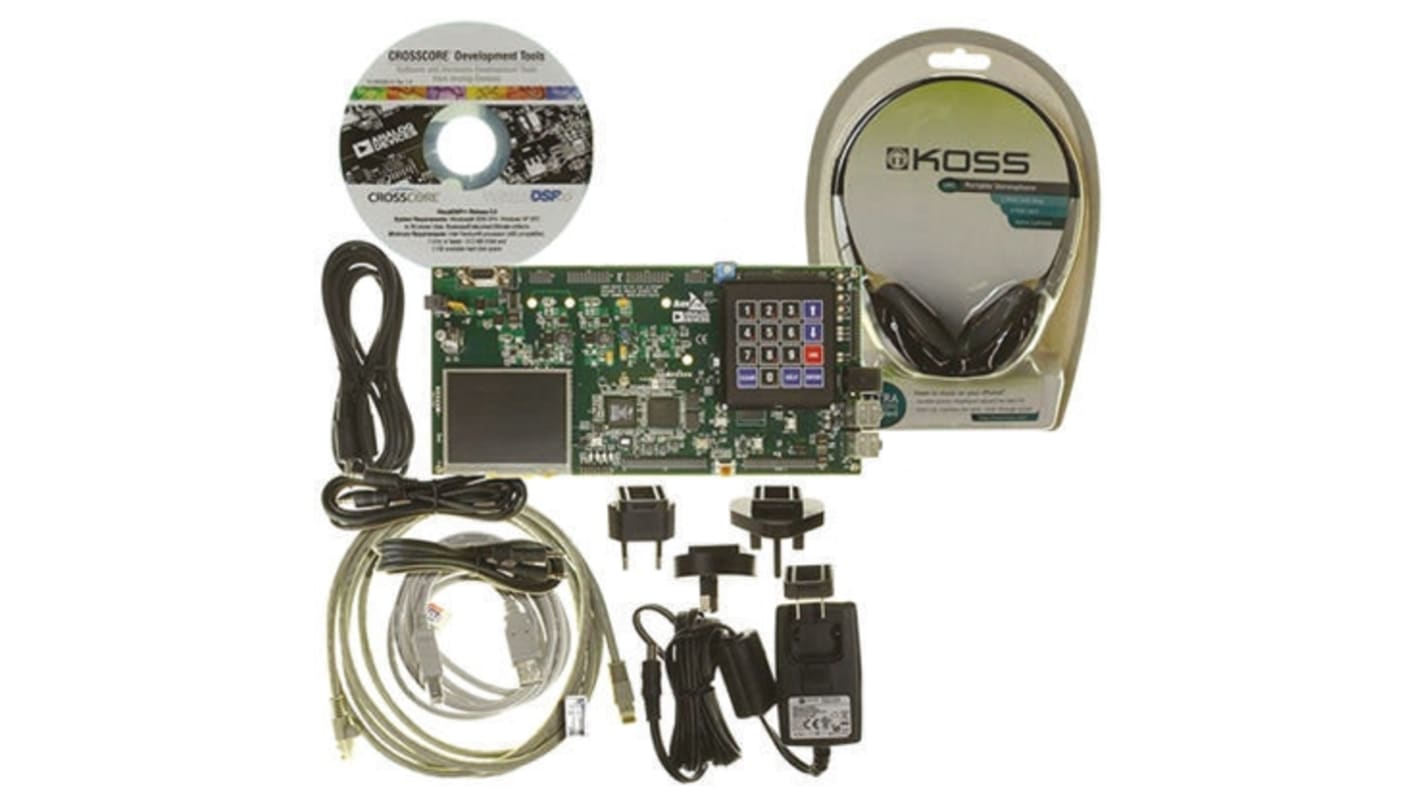

Supplied with
Evaluation suite of the VisualDSP++® development and debugging environment, including the C/C++ compiler, assembler, and linker, universal power supply, cables, headphones.
