Microchip SAM4E Xplained Pro MCU Evaluation Kit ATSAM4E-XPRO

View this category
Discontinued
RS Stock No.:
130-6161
Mfr. Part No.:
ATSAM4E-XPRO
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Classification

Evaluation Kit

Kit Name

SAM4E Xplained Pro

Technology

MCU

Device Core

Cortex M4

Processor Family Name

SAM

Processor Part Number

SAM4E16E

Processor Type

MCU

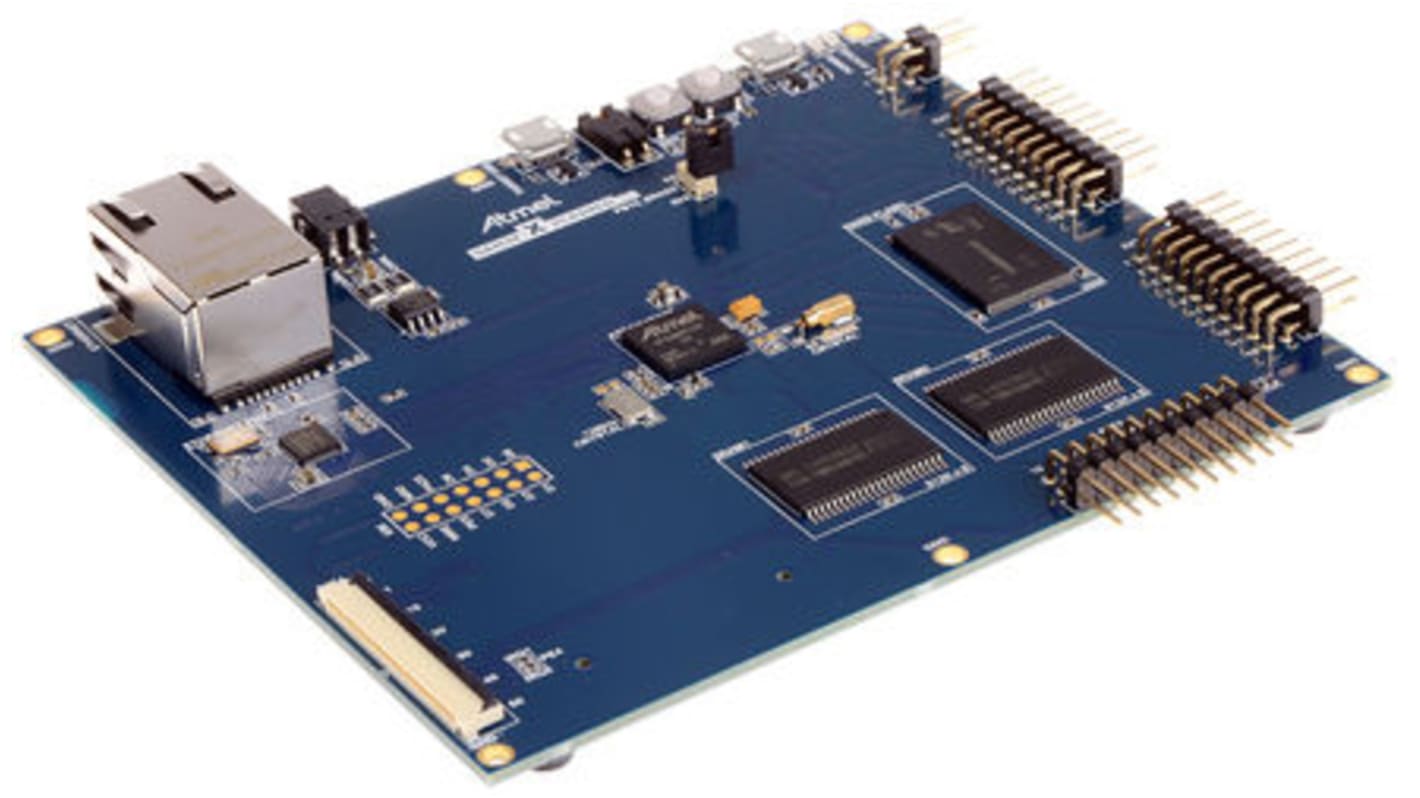

ATSAM4E Xplained Pro, MCU Evaluation Kit


The Atmel® SAM4E Xplained Pro evaluation kit is a hardware platform for evaluating and prototyping SAM4E Cortex™-M4 processor-based microcontrollers. The SAM4E evaluation kit provides easy access to the features of the Atmel ATSAM4E16E microcontroller and allows the user to integrate the device into a bespoke design. The SAM4E Xplained Pro MCU series evaluation kits include an on board embedded debugger. No additional tools are required to program or debug the ATSAM4E16E. The Atmel SAM4E Xplained Pro evaluation kit is supported by the Atmel Studio integrated development platform.

Features & Benefits of the ATSAM4E Xplained Pro Evaluation Kit
•32.768kHz crystal
•12MHz crystal
•10/100 Mbps IEEE 802.3 Ethernet
•CAN 2.0
•Two 512K (8-bit) SRAMs
•2 Gb (8-bit) NAND Flash
•3 Xplained Pro extension headers
•Xplained Pro LCD extension connector
•Embedded Debugger
•Symbolic debug of complex data types including scope information
•Data Gateway Interface: USART, I²C, 4 GPIOs
•Virtual COM port (CDC)
•USB powered
