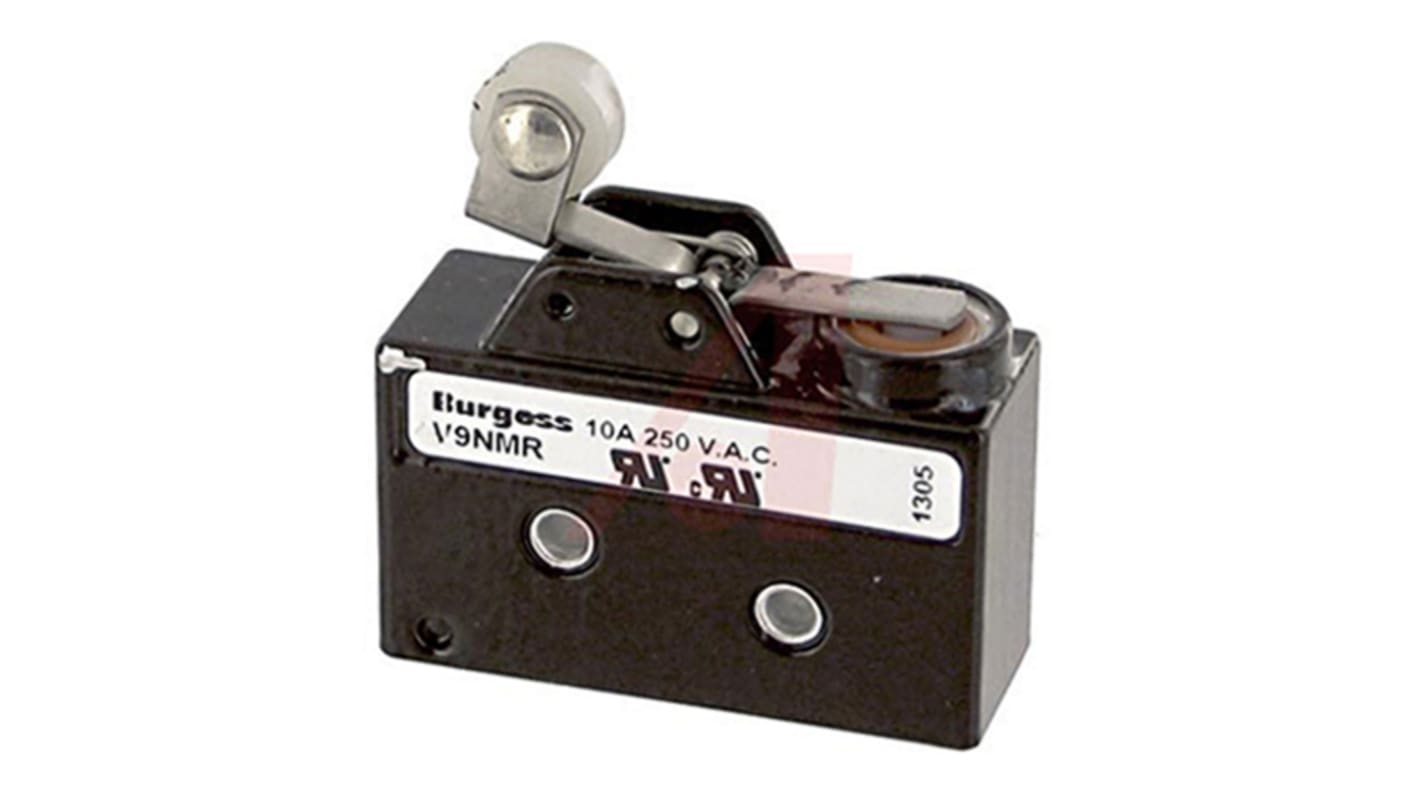

Johnson Electric Reverse Action Lever Micro Switch, Screw Terminal, 10 A, SP-CO, IP67
- RS Stock No.:
- 883-1650
- Mfr. Part No.:
- V9NMR
- Brand:
- Johnson Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 883-1650
- Mfr. Part No.:
- V9NMR
- Brand:
- Johnson Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Johnson Electric | |
| Actuator Type | Reverse Action Lever | |
| Terminal Type | Screw | |
| Contact Current Rating | 10 A | |
| Contact Configuration | SP-CO | |
| IP Rating | IP67 | |
| Operating Force | 9.5 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Silver | |
| Case Material | Zinc Die Cast | |
| Mechanical Life | 1000000Cycles | |
| Voltage Rating | 250V ac | |
| Release Force | 1.5N | |
| Operating Temperature Range | -40 → +125°C | |
| Standards Met | CSA, UL | |
Select all | ||
|---|---|---|
Brand Johnson Electric | ||
Actuator Type Reverse Action Lever | ||
Terminal Type Screw | ||
Contact Current Rating 10 A | ||
Contact Configuration SP-CO | ||
IP Rating IP67 | ||
Operating Force 9.5 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Contact Material Silver | ||
Case Material Zinc Die Cast | ||
Mechanical Life 1000000Cycles | ||
Voltage Rating 250V ac | ||
Release Force 1.5N | ||
Operating Temperature Range -40 → +125°C | ||
Standards Met CSA, UL | ||
- COO (Country of Origin):
- PL
SPDT & SPST-NC V9 Series
Metal body, IP67 sealed
Silver contacts
Mechanical Life: 106 operations
Operating temperature range: -40 to +125°C
Through-hole mounting
Earth kit provided
Dimensions: H21mm x W29mm x D53mm
Silver contacts
Mechanical Life: 106 operations
Operating temperature range: -40 to +125°C
Through-hole mounting
Earth kit provided
Dimensions: H21mm x W29mm x D53mm
Approvals
UL,CSA.
