Marquardt Lever Micro Switch, Solder Terminal, 10 A @ 400 V ac, SP-CO
- RS Stock No.:
- 823-4961
- Mfr. Part No.:
- 01006.0901-01
- Brand:
- Marquardt

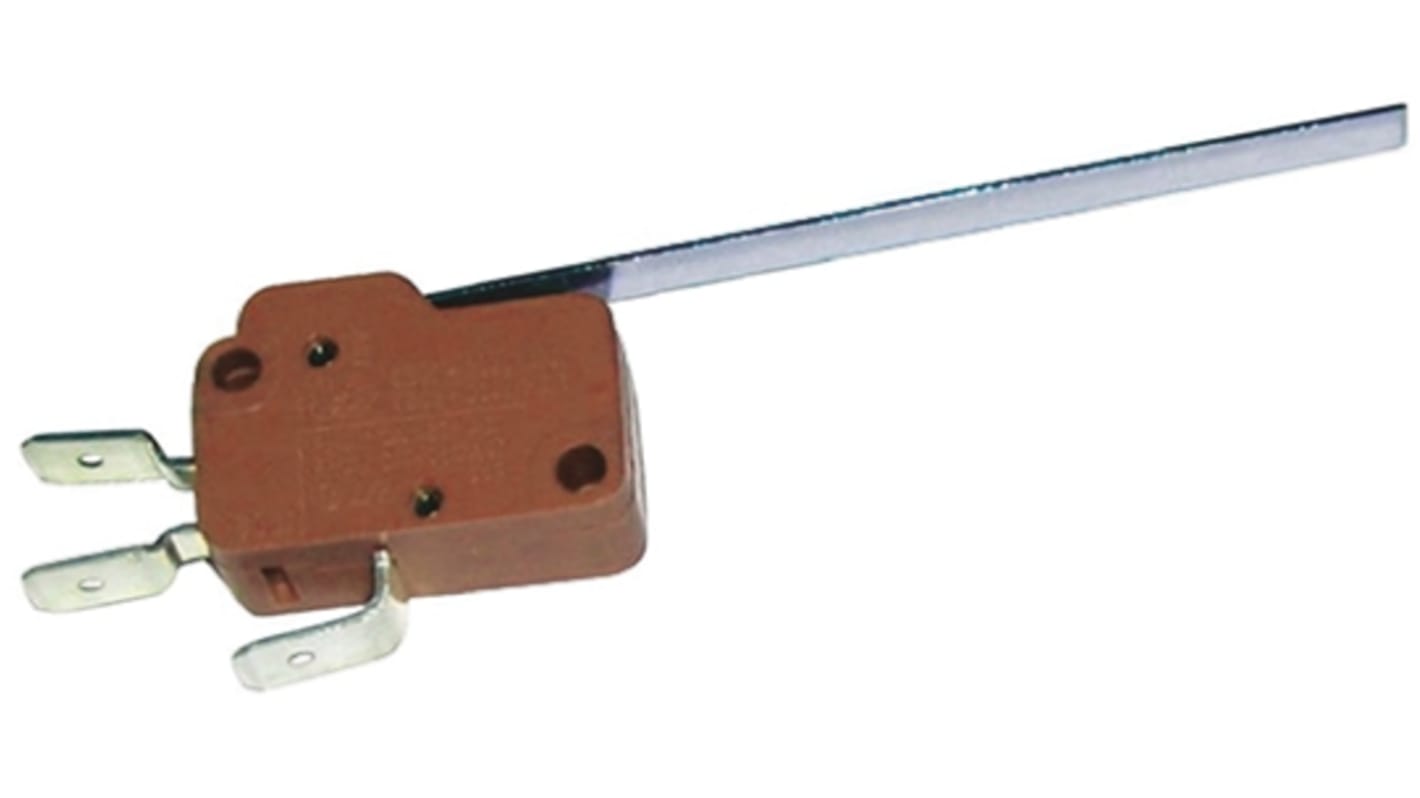

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£7.21
(exc. VAT)
£8.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £7.21 |
| 20 - 49 | £6.47 |
| 50 - 99 | £5.89 |
| 100 - 249 | £5.42 |
| 250 + | £4.97 |
*price indicative
- RS Stock No.:
- 823-4961
- Mfr. Part No.:
- 01006.0901-01
- Brand:
- Marquardt
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Actuator Type | Lever | |
| Terminal Type | Solder | |
| Contact Current Rating | 10 A @ 400 V ac | |
| Contact Configuration | SP-CO | |
| Operating Force | 0.8 → 1.4 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Switch Housing | V0 Housing | |
| Contact Material | Ag | |
| Case Material | Duroplast Type 182, PA Glass Fiber-Reinforced, PA Latamid | |
| Operating Temperature Range | -40 → +100°C | |
Select all | ||
|---|---|---|
Brand Marquardt | ||
Actuator Type Lever | ||
Terminal Type Solder | ||
Contact Current Rating 10 A @ 400 V ac | ||
Contact Configuration SP-CO | ||
Operating Force 0.8 → 1.4 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Switch Housing V0 Housing | ||
Contact Material Ag | ||
Case Material Duroplast Type 182, PA Glass Fiber-Reinforced, PA Latamid | ||
Operating Temperature Range -40 → +100°C | ||
- COO (Country of Origin):
- TN
Marquardt Miniature Snap Action Switches - 1005 Series
Marquardt 1005 Series miniature snap action single pole switches. The 1005 Series snap action switches are designed to DIN41635A with a contact resistance of <100mΩ and an insulation resistance of >100MΩ. The Marquardt 1005 Series is available with various actuators and terminations.
Contact distance <3mm (apart from stock number 741-0978 which has a contact distance greater than 3mm)
Bounce time <10ms
UL 94 V-2 flammability
Bounce time <10ms
UL 94 V-2 flammability
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
