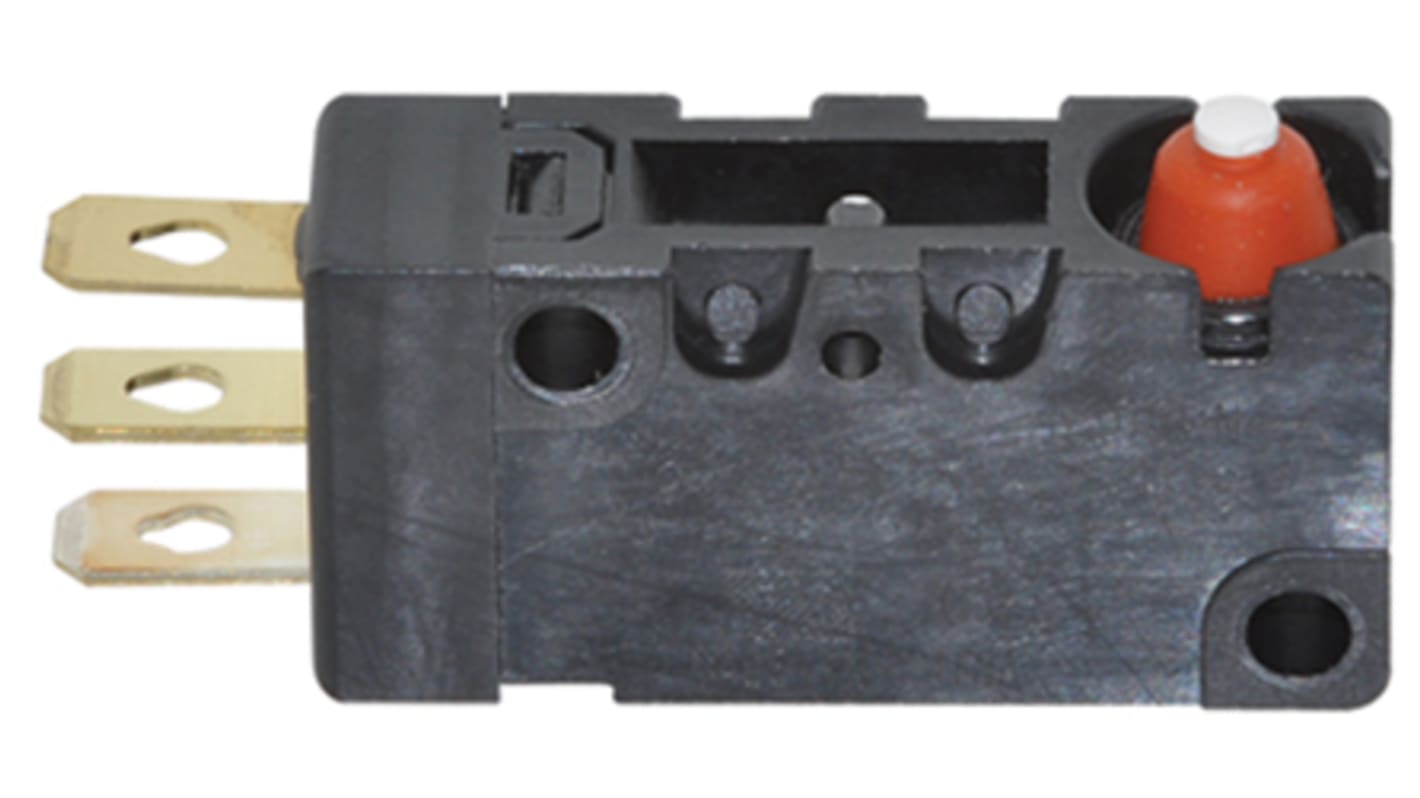

Omron Pin Plunger Micro Switch, PCB Pin Terminal, SPDT, IP67
- RS Stock No.:
- 807-4009
- Mfr. Part No.:
- D2VW-5-1HS
- Brand:
- Omron
96 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.74
(exc. VAT)
£6.89
(inc. VAT)
| Units | Per unit |
| 1 + | £5.74 |
- RS Stock No.:
- 807-4009
- Mfr. Part No.:
- D2VW-5-1HS
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
Omron Subminiature Sealed (5 A)
Sealed V3 style microswitch conforming to EN61058-1
Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 5A @ 250Vac
Contact configuration: SPDT
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 5A @ 250Vac
Contact configuration: SPDT
Approvals
UL, CSA, VDE
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | PCB Pin |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Operating Force | 1.18 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Alloy |
| Voltage Rating | 250V ac |
| Release Force | 0.15N |
| Operating Temperature Range | -40 → +85°C |
