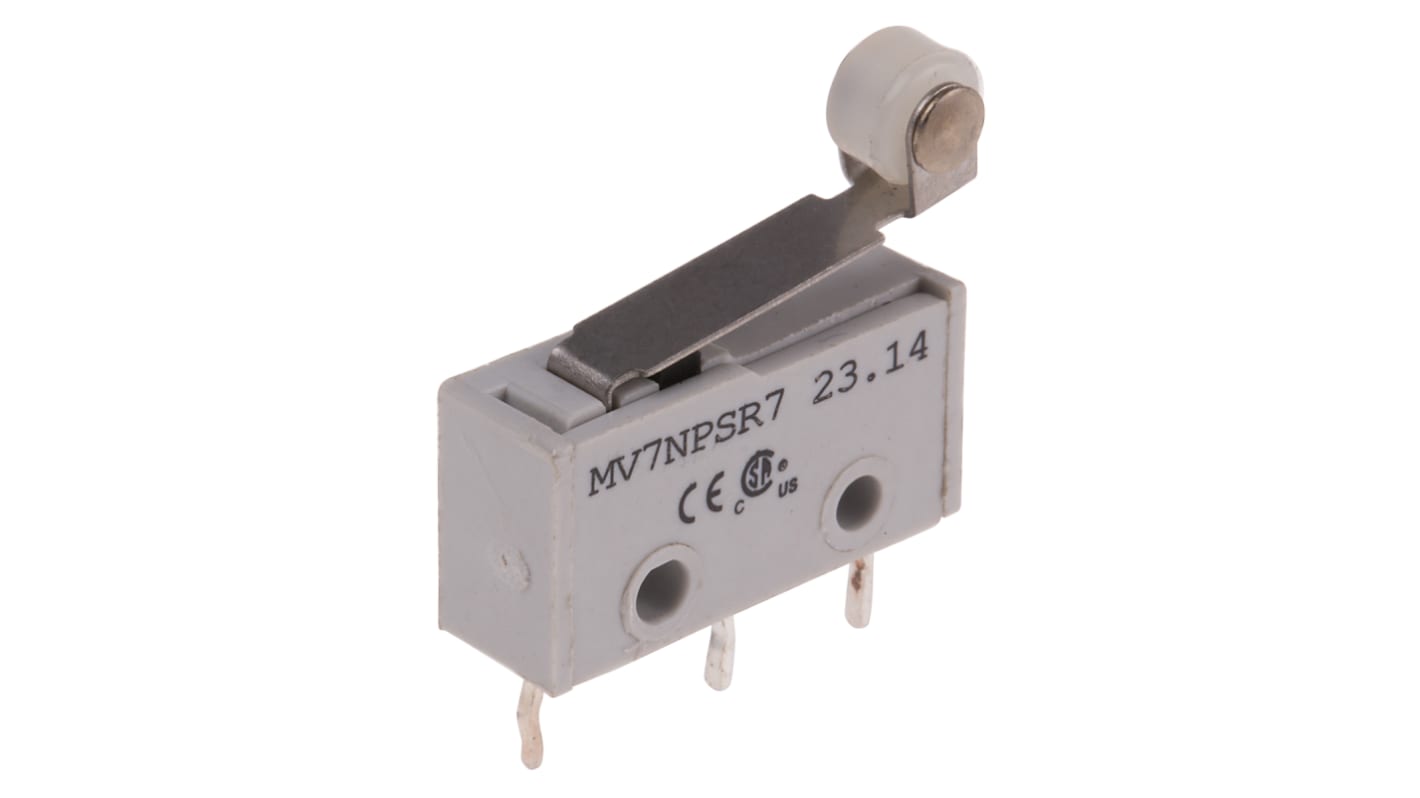

RS PRO Roller Lever Subminiature Micro Switch, Solder Terminal, 2A, 250 V ac, SPST
- RS Stock No.:
- 804-6271
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 5 units)*
£8.61
(exc. VAT)
£10.33
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 520 unit(s) ready to ship
- Plus 190 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 120 | £1.722 | £8.61 |
| 125 - 245 | £1.666 | £8.33 |
| 250 - 495 | £1.596 | £7.98 |
| 500 - 1245 | £1.546 | £7.73 |
| 1250 + | £1.492 | £7.46 |
*price indicative
- RS Stock No.:
- 804-6271
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Subminiature Micro Switch | |
| Actuator Type | Roller Lever | |
| Terminal Type | Solder | |
| Housing Material | Glass Filled Thermoplastic | |
| Contact Configuration | SPST | |
| Operating Force | 50g | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Contact AC Voltage | 250V ac | |
| Standards/Approvals | CE, CSA, IEC 1058-1 | |
| Hazardous Area Certification | No | |
| Mechanical Life | 500000Cycles | |
| Length | 19.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Subminiature Micro Switch | ||
Actuator Type Roller Lever | ||
Terminal Type Solder | ||
Housing Material Glass Filled Thermoplastic | ||
Contact Configuration SPST | ||
Operating Force 50g | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Contact AC Voltage 250V ac | ||
Standards/Approvals CE, CSA, IEC 1058-1 | ||
Hazardous Area Certification No | ||
Mechanical Life 500000Cycles | ||
Length 19.8mm | ||
- COO (Country of Origin):
- IN
Subminiature Microswitches
High quality microswitches, suitable for applications that require a low operating force. The switch body is moulded from flame retardent thermoplastic (UL94V-0).
Long mechanical and electrical life
Single pole changeover
Fine silver contacts
Standards
IEC 1058-1
