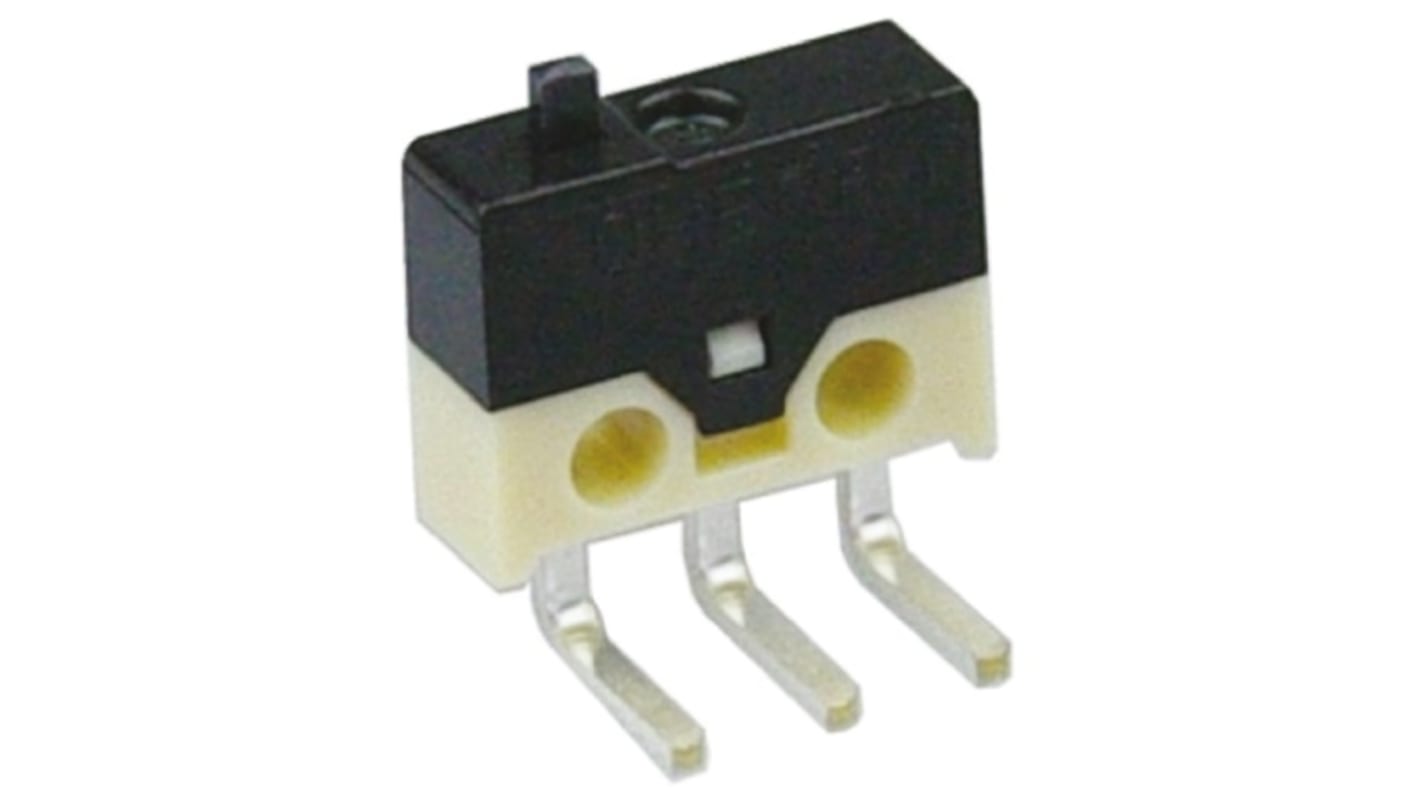

ZF Button Subminiature Micro Switch, Left Angle PCB Terminal, 500 mA @ 30 V dc, SPDT
- RS Stock No.:
- 706-4177
- Mfr. Part No.:
- DH2C-C6AA
- Brand:
- ZF
Discontinued
- RS Stock No.:
- 706-4177
- Mfr. Part No.:
- DH2C-C6AA
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Button | |
| Terminal Type | Left Angle PCB | |
| Contact Current Rating | 500 mA @ 30 V dc | |
| Contact Configuration | SPDT | |
| Operating Force | 0.88 N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Gold Plated Brass | |
| Operating Temperature Range | -25 → +70°C | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Button | ||
Terminal Type Left Angle PCB | ||
Contact Current Rating 500 mA @ 30 V dc | ||
Contact Configuration SPDT | ||
Operating Force 0.88 N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Contact Material Gold Plated Brass | ||
Operating Temperature Range -25 → +70°C | ||
- COO (Country of Origin):
- CN
Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
