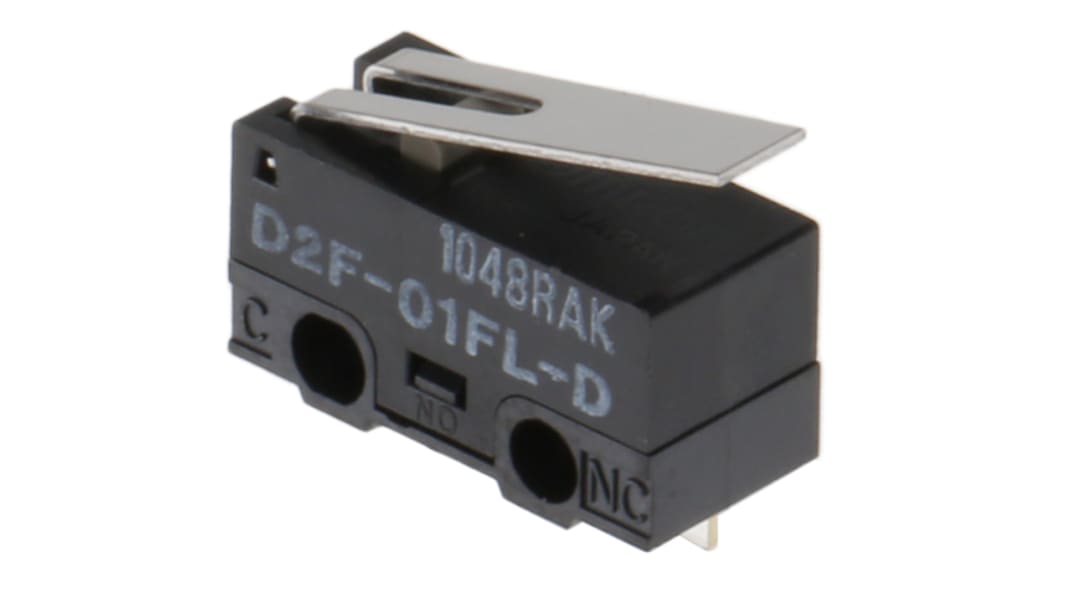

Omron Hinge Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40
- RS Stock No.:
- 682-1484
- Mfr. Part No.:
- D2F-01FL-D
- Brand:
- Omron
1260 In stock - FREE next working day delivery available
35 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£3.07
(exc. VAT)
£3.68
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 245 | £3.07 | £15.35 |
| 250 - 745 | £1.938 | £9.69 |
| 750 - 1245 | £1.83 | £9.15 |
| 1250 - 2495 | £1.704 | £8.52 |
| 2500 + | £1.60 | £8.00 |
| *price indicative | ||
- RS Stock No.:
- 682-1484
- Mfr. Part No.:
- D2F-01FL-D
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Omron Microswitch
The Omron Microswitch has an electrical rating of 100mA at 30VDC with SPDT contact configuration. It has gold contact material with a hinge lever actuator. This Microswitch is ideal for a wide variety of applications from household appliances and office equipment to audio equipment and communication equipment.
Features and Benefits
Operating temperature ranges between -25°C and 65°C
Operating force is 0.74N
Mechanical life is 10000000 operations
Long life span assured by high-precision dual spring reverse-action mechanism
Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom
compact solder terminal
Operating force is 0.74N
Mechanical life is 10000000 operations
Long life span assured by high-precision dual spring reverse-action mechanism
Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom
compact solder terminal
Certifications
IP40 rated
UL approved
CSA certified
ENEC certified
UL approved
CSA certified
ENEC certified
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Hinge Lever |
| Terminal Type | Solder |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Operating Force | 0.25 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Gold Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.02N |
| Operating Temperature Range | -25 → +65°C |
