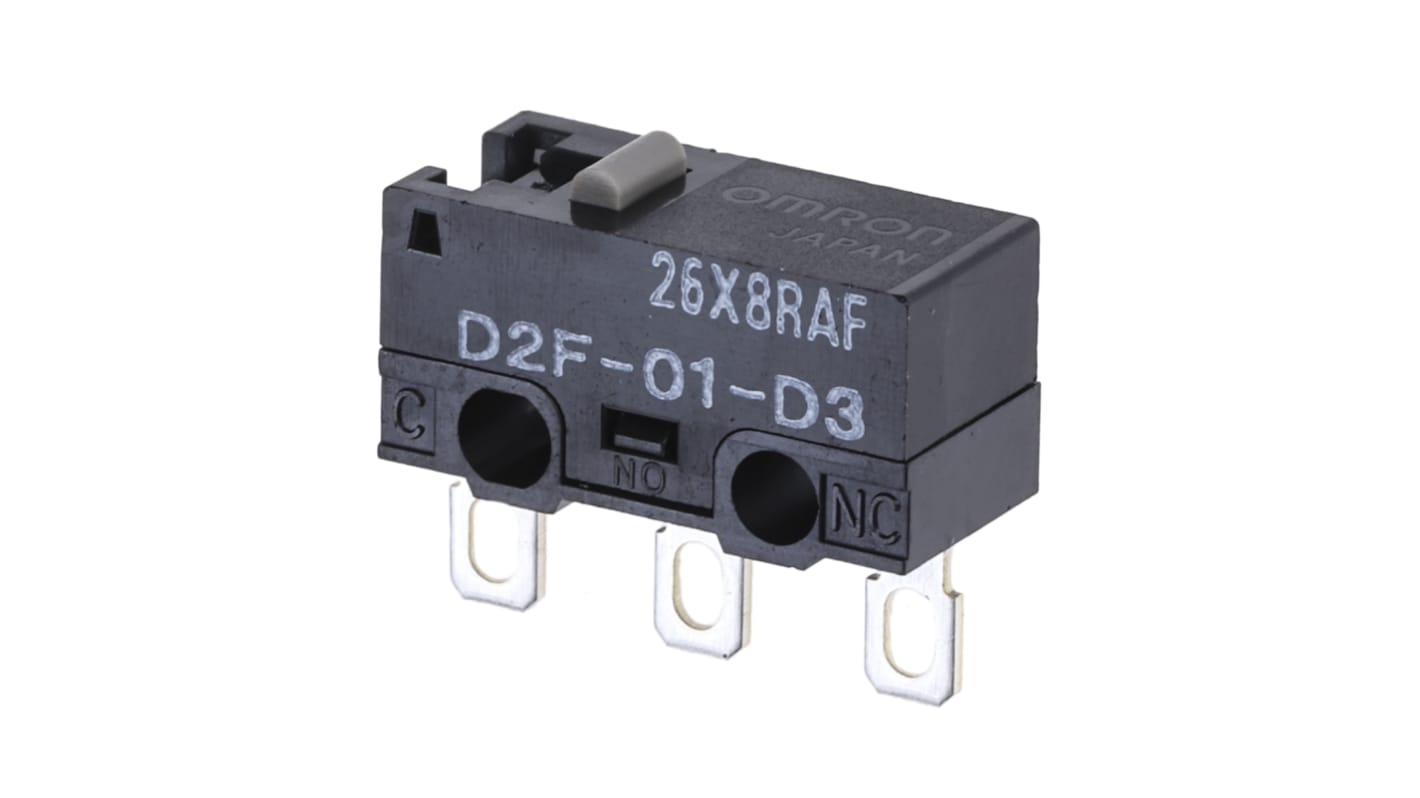

Omron Pin Plunger Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40
- RS Stock No.:
- 682-1471
- Mfr. Part No.:
- D2F-01-D3
- Brand:
- Omron
Subtotal (1 pack of 5 units)*
£3.98
(exc. VAT)
£4.775
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
- Plus 515 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.796 | £3.98 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.756
(exc. VAT)
£0.907
(inc. VAT)
- RS Stock No.:
- 682-1471
- Mfr. Part No.:
- D2F-01-D3
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Solder | |
| Contact Current Rating | 100 mA @ 30 V dc | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Operating Force | 1.47 N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +65°C | |
| Contact Material | Gold Alloy | |
| Mechanical Life | 1000000Operations | |
| Release Force | 0.2N | |
| Operating Temperature Range | -25 → +65°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Actuator Type Pin Plunger | ||
Terminal Type Solder | ||
Contact Current Rating 100 mA @ 30 V dc | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 1.47 N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +65°C | ||
Contact Material Gold Alloy | ||
Mechanical Life 1000000Operations | ||
Release Force 0.2N | ||
Operating Temperature Range -25 → +65°C | ||
- COO (Country of Origin):
- JP
Omron Microswitch
The Omron Microswitch has an electrical rating of 100mA at 30VDC with SPDT contact configuration. It has gold contact material with a pin plunger actuator. This Microswitch is ideal for a wide variety of applications from household appliances and office equipment to audio equipment and communication equipment.
Features and Benefits
Operating temperature ranges between -25°C and 65°C
Operating force is 1.47N
Mechanical life is 10000000 operations
Long life span assured by high-precision dual spring reverse-action mechanism
Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom
Solder terminal
Operating force is 1.47N
Mechanical life is 10000000 operations
Long life span assured by high-precision dual spring reverse-action mechanism
Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom
Solder terminal
Certifications
IP40 rated
UL approved
CSA certified
ENEC certified
UL approved
CSA certified
ENEC certified
