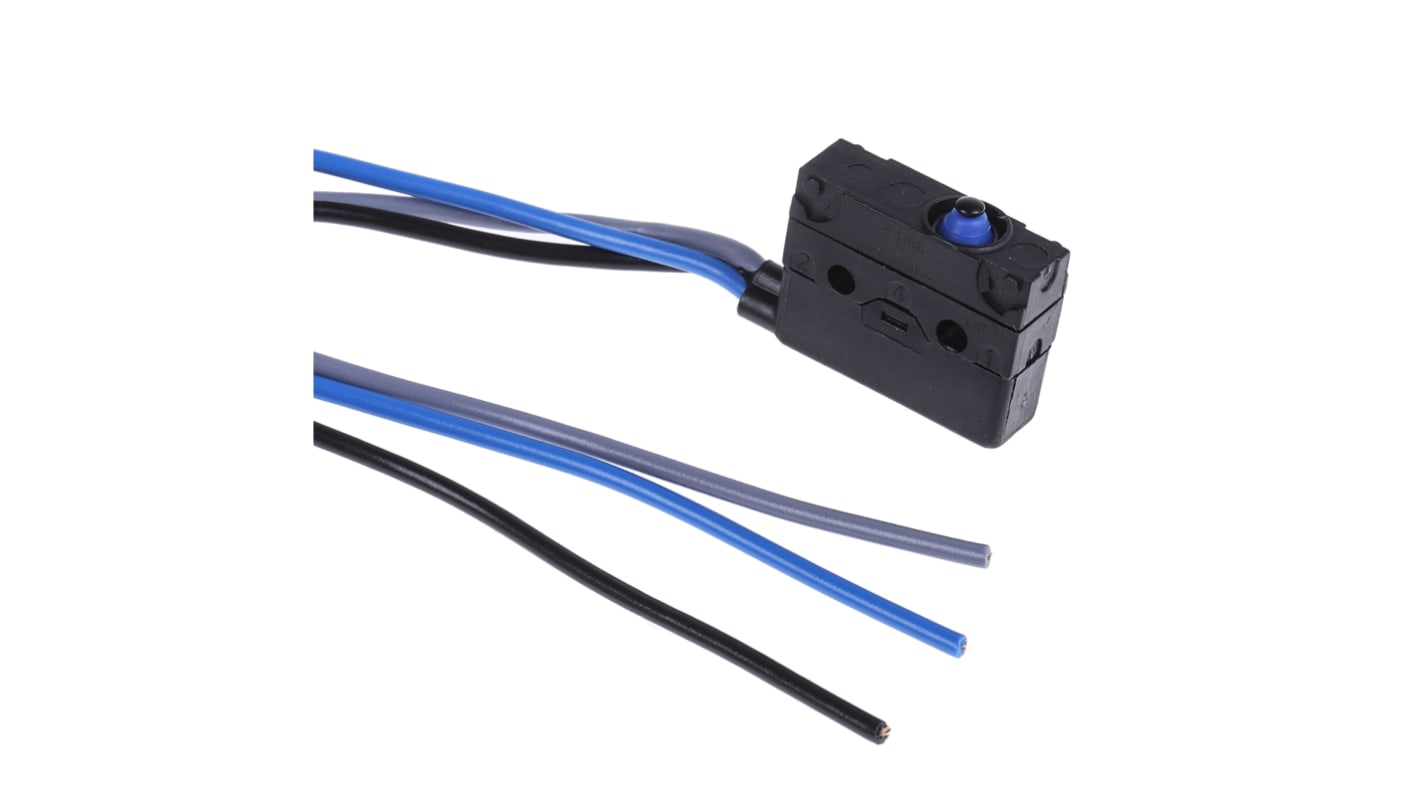

Crouzet Button Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPDT, IP67
- RS Stock No.:
- 219-3794
- Distrelec Article No.:
- 303-99-282
- Mfr. Part No.:
- 83 186 003
- Brand:
- Crouzet
Bulk discount available
Subtotal (1 unit)*
£10.26
(exc. VAT)
£12.31
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 107 left, shipping from 13 October 2025
- Plus 927 left, shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £10.26 |
| 50 - 149 | £9.86 |
| 150 - 249 | £9.51 |
| 250 - 499 | £9.16 |
| 500 + | £8.86 |
*price indicative
- RS Stock No.:
- 219-3794
- Distrelec Article No.:
- 303-99-282
- Mfr. Part No.:
- 83 186 003
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Actuator Type | Button | |
| Terminal Type | Solder | |
| Contact Current Rating | 6 A @ 250 V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 2.5 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Silver Nickel Alloy | |
| Mechanical Life | 2000000Operations | |
| Release Force | 0.8N | |
| Operating Temperature Range | -40 → +125°C | |
Select all | ||
|---|---|---|
Brand Crouzet | ||
Actuator Type Button | ||
Terminal Type Solder | ||
Contact Current Rating 6 A @ 250 V ac | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 2.5 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Contact Material Silver Nickel Alloy | ||
Mechanical Life 2000000Operations | ||
Release Force 0.8N | ||
Operating Temperature Range -40 → +125°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- MA
Crouzet Microswitch
The Crouzet V4-type subminiature Microswitch has an electrical rating of 6A at 250VAC with SPDT contact configuration. It has gold-plated silver cadmium oxide contact material and polyester case material with a button actuator.
Features and Benefits
Operating force is 2.5N
Operating temperature ranges between -40°C and 125°C
Mechanical life of 20000000 operations
Operating temperature ranges between -40°C and 125°C
Mechanical life of 20000000 operations
Certifications
IP67 rated
UL approved
NF approved
UL approved
NF approved
