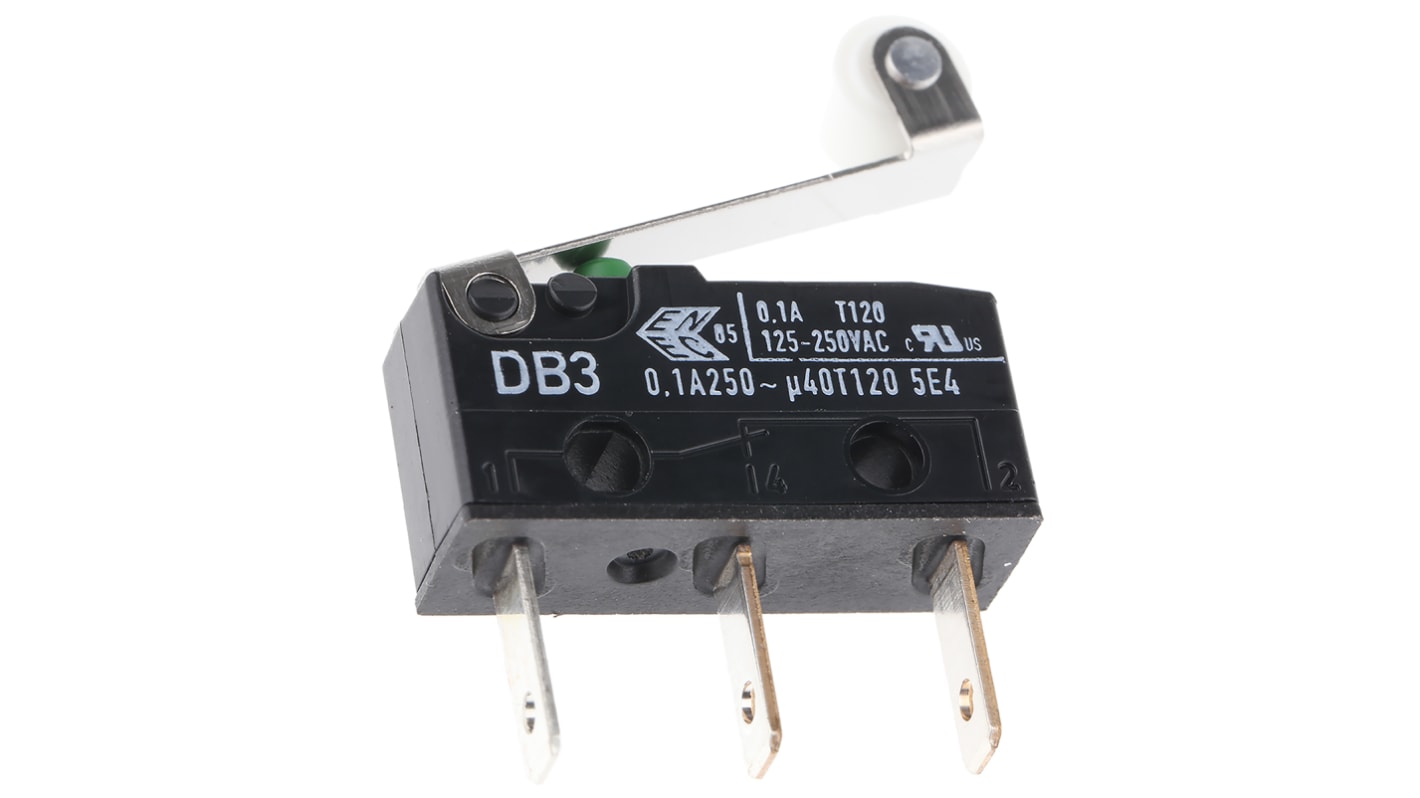

ZF Roller Lever Micro Switch, Tab Terminal, 100 mA @ 30 V dc, SPDT
- RS Stock No.:
- 517-725
- Mfr. Part No.:
- DB3C-B1RC
- Brand:
- ZF
Available to back order for despatch 05/12/2024
Price Each
£2.84
(exc. VAT)
£3.41
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.84 |
| 10 - 49 | £2.55 |
| 50 - 99 | £2.12 |
| 100 - 249 | £1.98 |
| 250 + | £1.82 |
- RS Stock No.:
- 517-725
- Mfr. Part No.:
- DB3C-B1RC
- Brand:
- ZF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Standard V4 Microswitches (DB3 100mA)
DB3 rated at 100mA 250Vac; ENEC, EN61058
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
Silver-nickel contacts
SPDT contact configuration
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm
Maximum operating temperatures 120°C UL 94V-0
Housing material PET/PBT (UL 94V-0)
Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85
Silver-nickel contacts
SPDT contact configuration
For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506
Height 11.65mm, Width 20mm, Depth 6.5mm
Approvals
ENEC, UL
Approvals
ENEC; UL
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Terminal Type | Tab |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT |
| Operating Force | 0.54 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
| Contact Material | Gold, Silver Alloy |
| Mechanical Life | 15000000Operations |
| Operating Temperature Range | -40 → +120°C |
- RS Stock No.:
- 517-725
- Mfr. Part No.:
- DB3C-B1RC
- Brand:
- ZF
