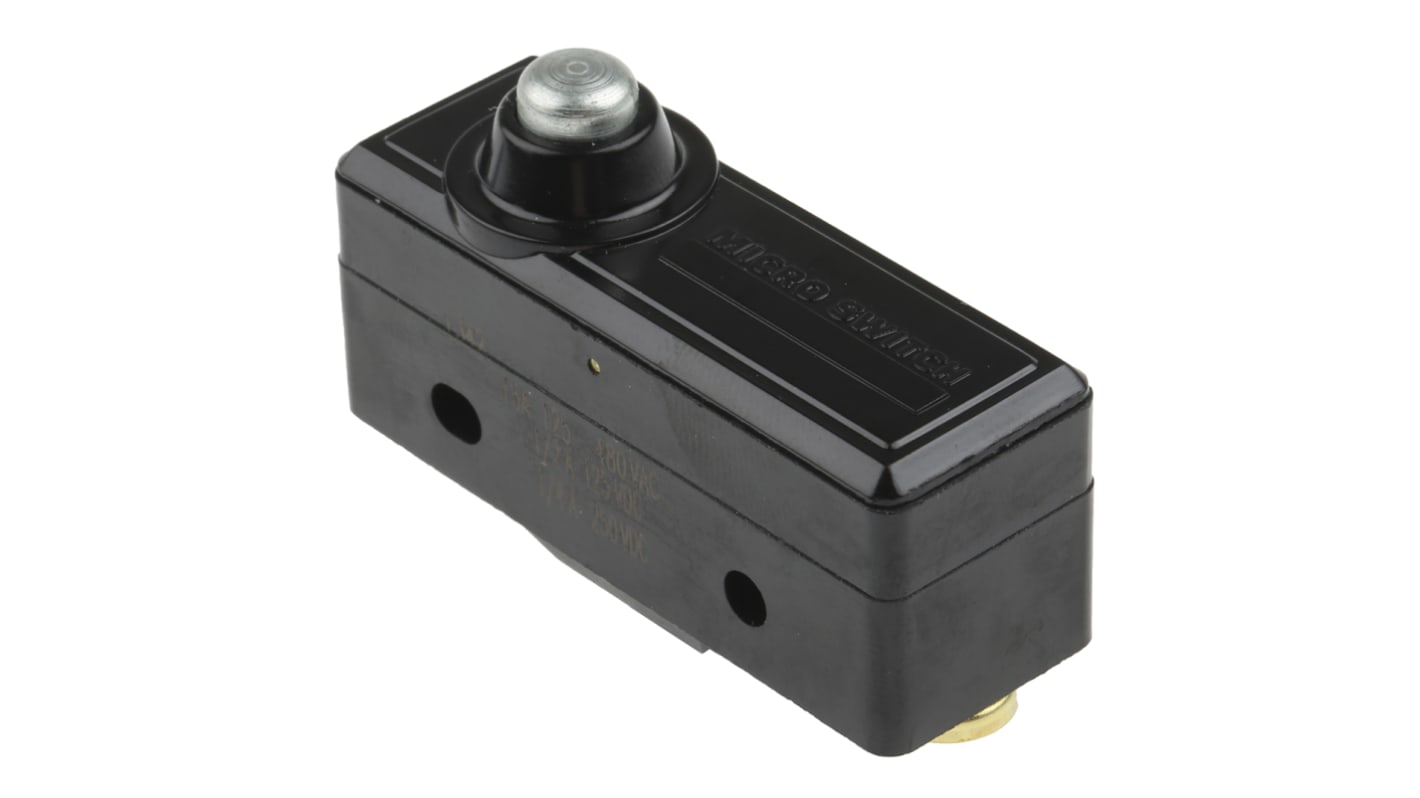

Honeywell Button Micro Switch, Screw Terminal, 15 A @ 125 V ac, SPDT
- RS Stock No.:
- 339-904
- Mfr. Part No.:
- BZ-2RD-A2
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.41
(exc. VAT)
£18.49
(inc. VAT)
- RS Stock No.:
- 339-904
- Mfr. Part No.:
- BZ-2RD-A2
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Button | |
| Terminal Type | Screw | |
| Contact Current Rating | 15 A @ 125 V ac | |
| Contact Configuration | SPDT | |
| Operating Force | 3.61 N | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 20000000Cycles | |
| Voltage Rating | 125V | |
| Release Force | 1.11N | |
| Standards Met | CE Certified, CSA, UL | |
| Operating Temperature Range | -55 → +85°C | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Button | ||
Terminal Type Screw | ||
Contact Current Rating 15 A @ 125 V ac | ||
Contact Configuration SPDT | ||
Operating Force 3.61 N | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 20000000Cycles | ||
Voltage Rating 125V | ||
Release Force 1.11N | ||
Standards Met CE Certified, CSA, UL | ||
Operating Temperature Range -55 → +85°C | ||
Honeywell Button Microswitch, NO/NC, 15A - BZ Series - BZ-2RD-A2
Use this Honeywell microswitch to detect a mechanical target and close or open a connected circuit. As a microswitch, the unit is much smaller than a standard limit switch, making it easy to install in cramped or narrow work areas that would normally be inaccessible. It’s designed for low currents of 15A or less at 125V of alternating current (AC). The button-type actuator in this component is pushed down when in full contact with the target for effective operation.
Features & Benefits
• Withstands temperatures of up to +204°C for use in extreme heat
• A2 screw terminals are bottom-facing for ease of installation
• Silver-plated contacts are corrosion-resistant for long-lasting use
• A2 screw terminals are bottom-facing for ease of installation
• Silver-plated contacts are corrosion-resistant for long-lasting use
Applications
• Elevator manual switch
• Air pressure detection
• Washing machines
• Air conditioning units
• Refrigerators
• Air pressure detection
• Washing machines
• Air conditioning units
• Refrigerators
How long will this microswitch last?
This microswitch has a lifespan of over a million cycles, so you can rest assured it will last a long time.
Where is this type of microswitch most often used?
This microswitch is commonly used as a safety device, as it can prevent a machine from being turned on or a door from closing when danger is present.
Approvals
UL; CSA
