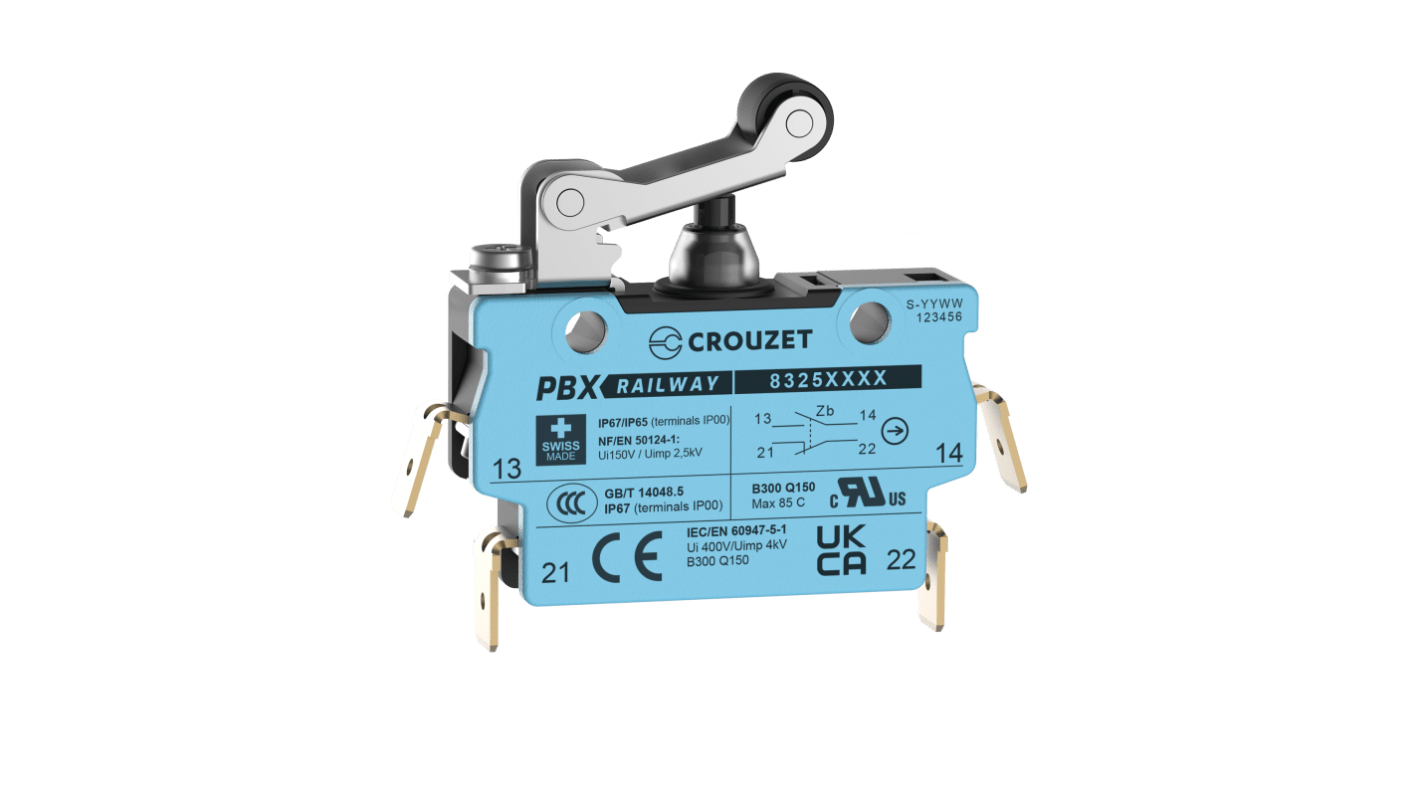

Crouzet Roller Lever Micro Switch, Screw Terminal, 250 V ac, SPST, IP67
- RS Stock No.:
- 309-813
- Mfr. Part No.:
- 83250213
- Brand:
- Crouzet
Subtotal (1 unit)*
£59.62
(exc. VAT)
£71.54
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £59.62 |
*price indicative
- RS Stock No.:
- 309-813
- Mfr. Part No.:
- 83250213
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Micro Switch | |
| Actuator Type | Roller Lever | |
| Terminal Type | Screw | |
| Housing Material | Polycarbonate Fibreglass 20% | |
| Contact Configuration | SPST | |
| IP Rating | IP67 | |
| Operating Force | 2.4N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | Sealed | |
| Contact AC Voltage | 250V ac | |
| Mechanical Life | 5000000Cycles | |
| Series | PBXR - 8325 | |
| Length | 30mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS, IEC 60947-5-1 Annex K, EN 45545-2 EL10, DIN 41636-6 Type F, CCC, cURus | |
| Width | 50 mm | |
| Depth | 12mm | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Micro Switch | ||
Actuator Type Roller Lever | ||
Terminal Type Screw | ||
Housing Material Polycarbonate Fibreglass 20% | ||
Contact Configuration SPST | ||
IP Rating IP67 | ||
Operating Force 2.4N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type Sealed | ||
Contact AC Voltage 250V ac | ||
Mechanical Life 5000000Cycles | ||
Series PBXR - 8325 | ||
Length 30mm | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS, IEC 60947-5-1 Annex K, EN 45545-2 EL10, DIN 41636-6 Type F, CCC, cURus | ||
Width 50 mm | ||
Depth 12mm | ||
- COO (Country of Origin):
- CH
The Crouzet Microswitch are designed for reliable performance in various industrial applications. These classic microswitches features a positive break mechanism ensuring a direct opening for enhanced safety. They are available in different configurations including standard high force and dual current models.
Roller lever is LG
W3 connection with 90 degree
IP67 protection
