Cornell-Dubilier 8.2nF Mica Capacitor 500V dc ±5% Tolerance, CD30
- RS Stock No.:
- 871-3177
- Mfr. Part No.:
- CD30FD822JO3F
- Brand:
- Cornell-Dubilier
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£37.92
(exc. VAT)
£45.50
(inc. VAT)
- RS Stock No.:
- 871-3177
- Mfr. Part No.:
- CD30FD822JO3F
- Brand:
- Cornell-Dubilier
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cornell-Dubilier | |
| Series | CD30 | |
| Capacitance | 8.2nF | |
| Voltage | 500V dc | |
| Dimensions | 20.1 x 8.1 x 22.4mm | |
| Lead Pitch | 11.1mm | |
| Tolerance | ±5% | |
| Depth | 8.1mm | |
| Height | 22.4mm | |
| Length | 20.1mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Terminal Type | Radial | |
| Capacitor Family | Mica | |
| Dielectric Material Family | Mica | |
| Select all | ||
|---|---|---|
Brand Cornell-Dubilier | ||
Series CD30 | ||
Capacitance 8.2nF | ||
Voltage 500V dc | ||
Dimensions 20.1 x 8.1 x 22.4mm | ||
Lead Pitch 11.1mm | ||
Tolerance ±5% | ||
Depth 8.1mm | ||
Height 22.4mm | ||
Length 20.1mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Terminal Type Radial | ||
Capacitor Family Mica | ||
Dielectric Material Family Mica | ||
- COO (Country of Origin):
- US

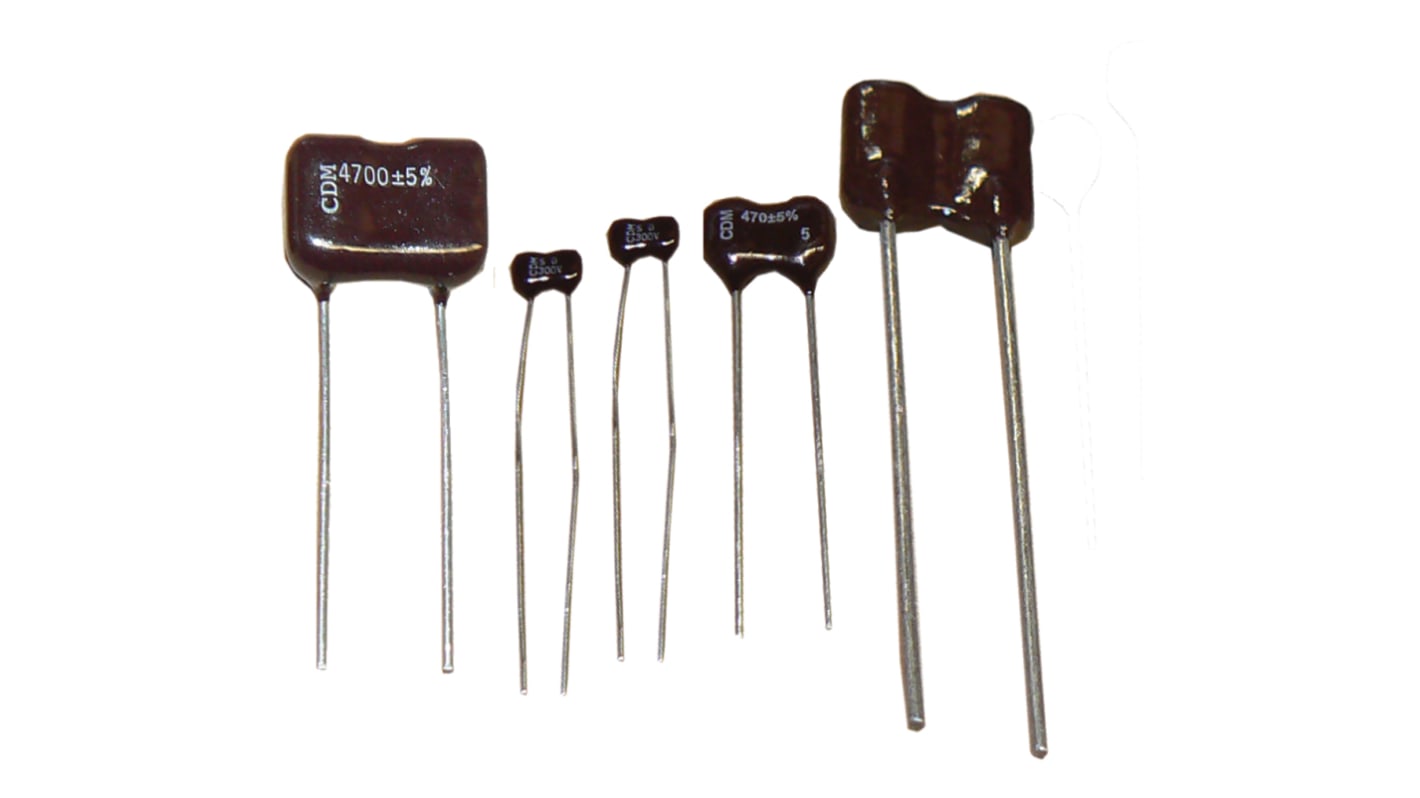

Cornell-Dubilier CD30 Series
Cornell-Dubilier CD30 series resin dipped radial mica capacitors offer stable capacitance over a wide temperature range. The CD30 series dipped silvered mica capacitors are designed for timing and close tolerance applications.
High temperature
Non-flammable
High reliability
Non-flammable
High reliability
Radial Dipped
Professional radial wire ended dipped silver mica capacitors designed for applications which demand high stability
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
