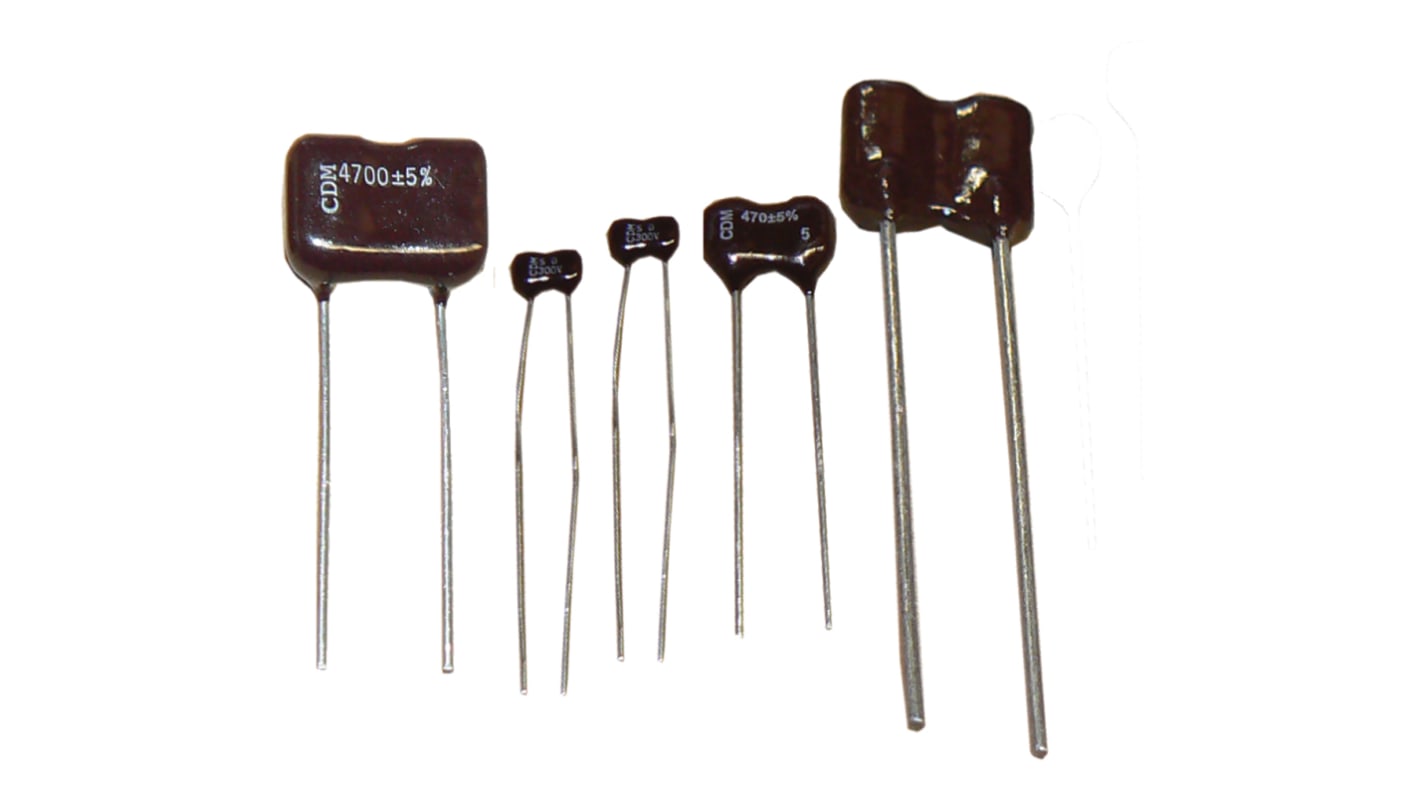

Cornell-Dubilier CD19 series resin dipped radial mica capacitors offer stable capacitance over a wide temperature range. The CD19 series dipped silvered mica capacitors are designed for timing and close tolerance applications.
Features and Benefits: High temperature Non-flammable High reliability Case Material: Epoxy Rated Voltage 100 Vdc to 2500 Vdc
Radial Dipped
Professional radial wire ended dipped silver mica capacitors designed for applications which demand high stability Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
Attribute
Value
Series
CD19
Capacitance
3.3nF
Voltage
500V dc
Dimensions
17.3 x 7.4 x 14.0mm
Lead Pitch
8.7mm
Tolerance
±5%
Depth
7.4mm
Height
14mm
Length
17.3mm
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-55°C
Capacitor Family
Mica
Terminal Type
Radial
Dielectric Material Family
Mica
