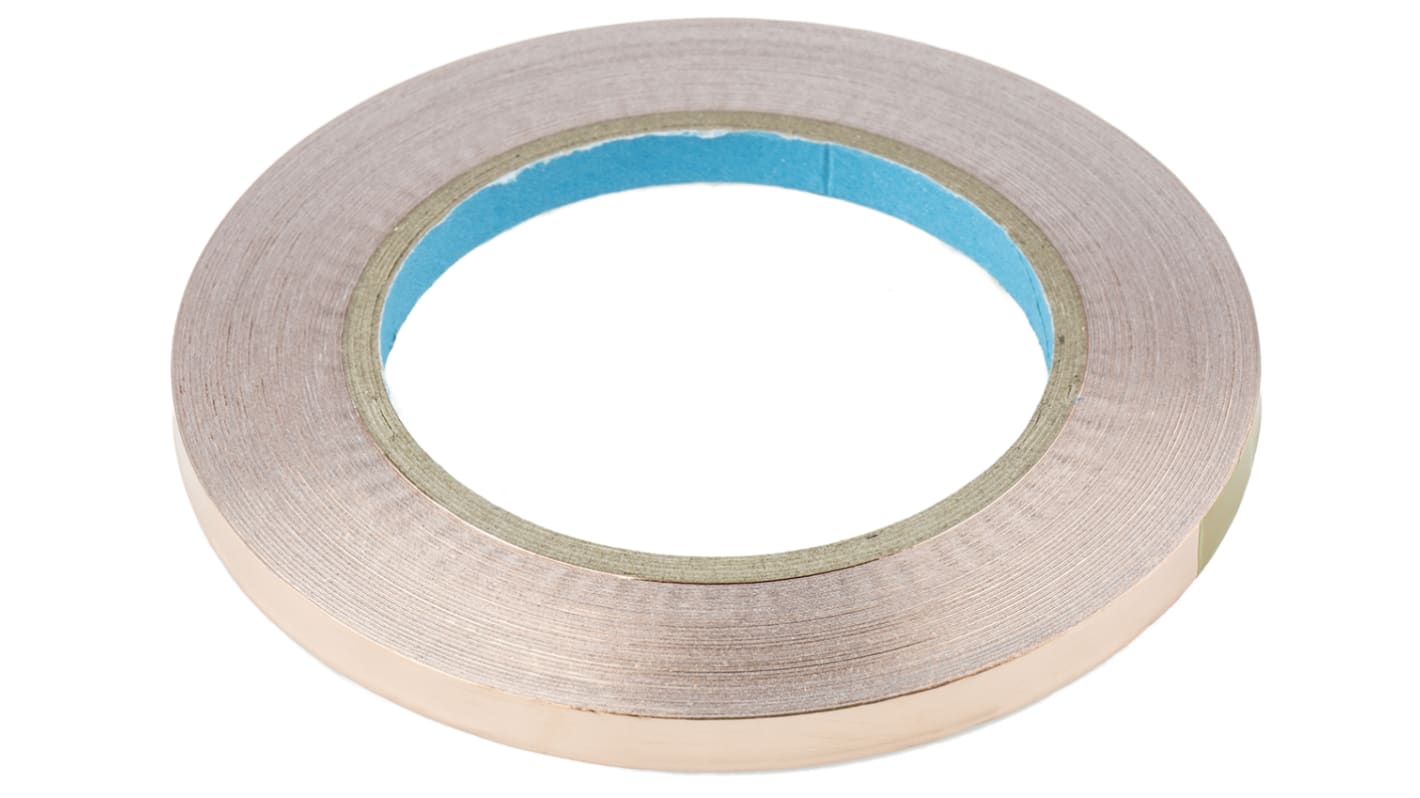

Wurth Elektronik 3003308A Conductive Metallic Tape, 8mm x 33 m 155 °C Max
- RS Stock No.:
- 736-2181
- Distrelec Article No.:
- 303-88-059
- Mfr. Part No.:
- 3003308A
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£58.92
(exc. VAT)
£70.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £58.92 |
| 5 - 9 | £54.79 |
| 10 - 24 | £50.68 |
| 25 - 49 | £44.19 |
| 50 + | £40.05 |
*price indicative
- RS Stock No.:
- 736-2181
- Distrelec Article No.:
- 303-88-059
- Mfr. Part No.:
- 3003308A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Metallic Tape | |
| Thickness | 0.07mm | |
| Width | 8mm | |
| Length | 33m | |
| Conductivity | Conductive | |
| Adhesion Strength | 5N/cm | |
| Adhesive Material | Acrylate | |
| Tensile Strength | 40N/cm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 155°C | |
| Complies with EN Legislation | No | |
| Standards/Approvals | No | |
| Model Number | 3003308A | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Metallic Tape | ||
Thickness 0.07mm | ||
Width 8mm | ||
Length 33m | ||
Conductivity Conductive | ||
Adhesion Strength 5N/cm | ||
Adhesive Material Acrylate | ||
Tensile Strength 40N/cm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 155°C | ||
Complies with EN Legislation No | ||
Standards/Approvals No | ||
Model Number 3003308A | ||
EMI Shielding Tape - WE-CF Series
WE-CF series self adhesive EMI shielding tape coated with aluminium or copper with a very high shielding effect. This is by virtue of its highly conductive adhesive with metal powder. Applications for the WE-CF series EMI Shielding Tape include EMI-Protection of doors and housings. The WE-CF series EMI Shielding Tape can also be used in conjunction with the WE-ST series conductive Ni/Cu woven glass fiber sleeve.
Operating Temperature Range : -25ºC to +85ºC
Approvals
UL-listed
