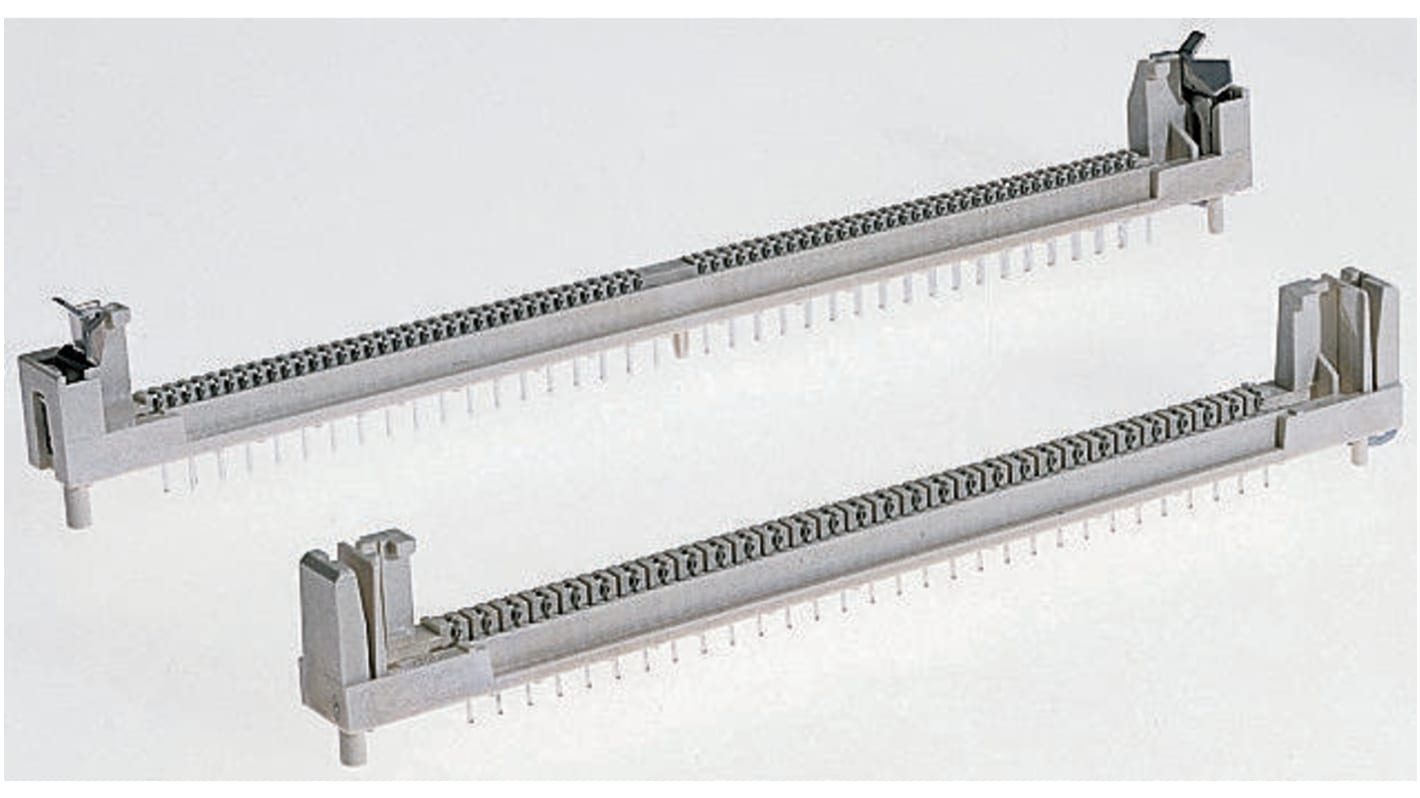

30 and 72 way vertical and angled SIMM® sockets incorporating either plastic or metal latches. All versions feature low profile, high pressure tin-plated contacts that accept standard module board thickness. The sockets require a very low insertion force and have right polarisation, unless otherwise stated with polarising posts which coincide with cut-outs on the board, to prevent mis-insertion.
Pitch between pins 30-way is 0.1in. (typ.), 72-way is 0.05in. (typ.)
Attribute
Value
Gender
Female
Memory Socket Type
SIMM Socket
Body Orientation
Straight
Contact Material
Phosphor Bronze
Contact Plating
Tin over Nickel
Number of Contacts
30
Pitch
2.54mm
Housing Material
Liquid Crystal Polymer
Latching
Yes
Current Rating
1.0A
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
