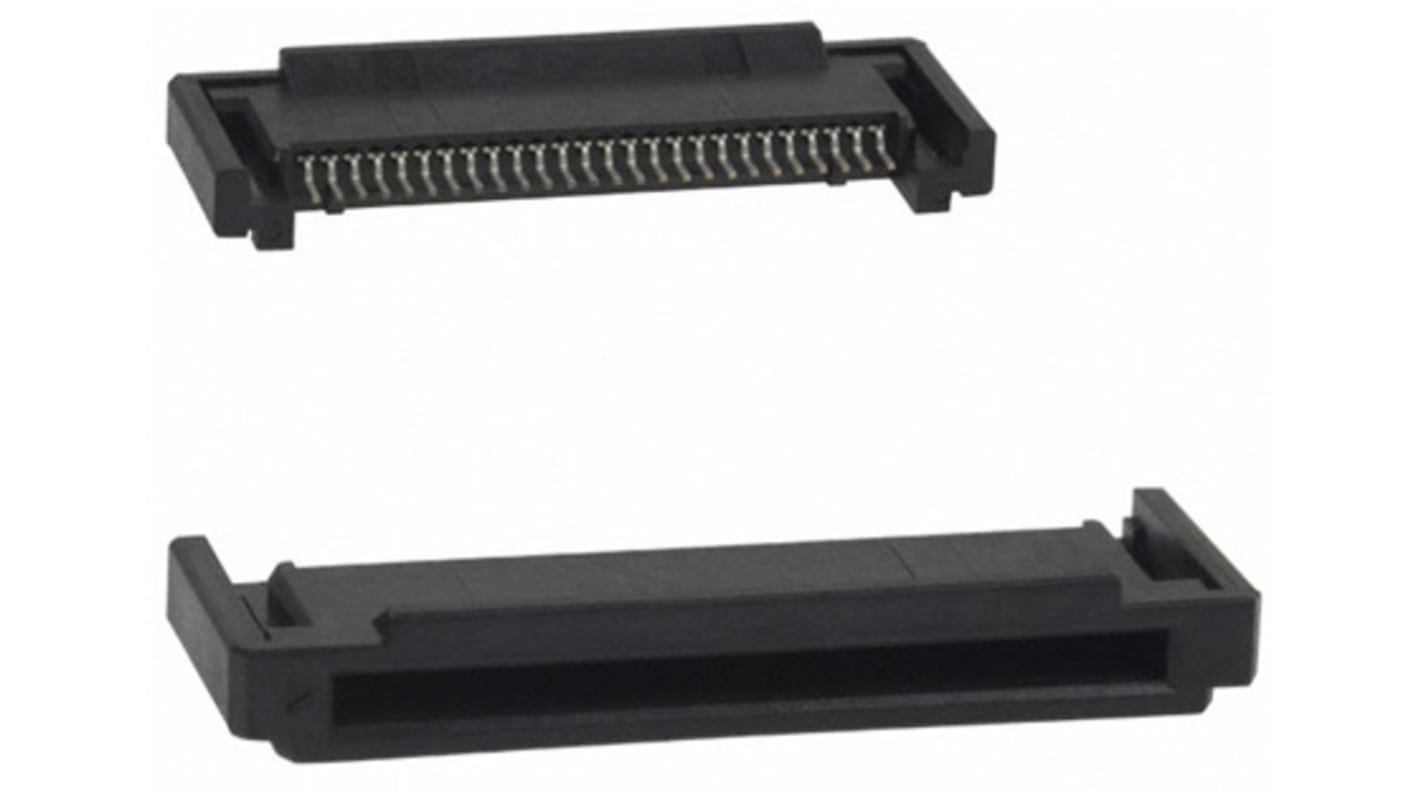

Amphenol Communications Solutions 26 Way Right Angle Express Card Memory Card Connector With Solder Termination
- RS Stock No.:
- 615-9467
- Mfr. Part No.:
- 10030570-2112LF
- Brand:
- Amphenol ICC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 615-9467
- Mfr. Part No.:
- 10030570-2112LF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Card Type | Express Card | |
| Gender | Female | |
| Number of Contacts | 26 | |
| Number of Rows | 1 | |
| Pitch | 1.0mm | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| Length | 34.0mm | |
| Width | 5.0mm | |
| Depth | 11.0mm | |
| Maximum Operating Temperature | +65°C | |
| Minimum Operating Temperature | -20°C | |
| Dimensions | 34 x 5 x 11mm | |
Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Card Type Express Card | ||
Gender Female | ||
Number of Contacts 26 | ||
Number of Rows 1 | ||
Pitch 1.0mm | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
Length 34.0mm | ||
Width 5.0mm | ||
Depth 11.0mm | ||
Maximum Operating Temperature +65°C | ||
Minimum Operating Temperature -20°C | ||
Dimensions 34 x 5 x 11mm | ||
- COO (Country of Origin):
- CN
ExpressCard Kits
ExpressCard™ is a PC card connector and host system to replace PC Card and Cardbus technology
Meets high speed electrical requirements as outlined in ExpressCard™ standard
Rated up to 10000 cycles
Snap-together module design enables card assembly without requiring the use of adhesives or ultrasonic equipment
Modules provide EMI/ESD contact areas, notches to facilitate optional security lock and a finger grip for manual module removal
Rated up to 10000 cycles
Snap-together module design enables card assembly without requiring the use of adhesives or ultrasonic equipment
Modules provide EMI/ESD contact areas, notches to facilitate optional security lock and a finger grip for manual module removal
