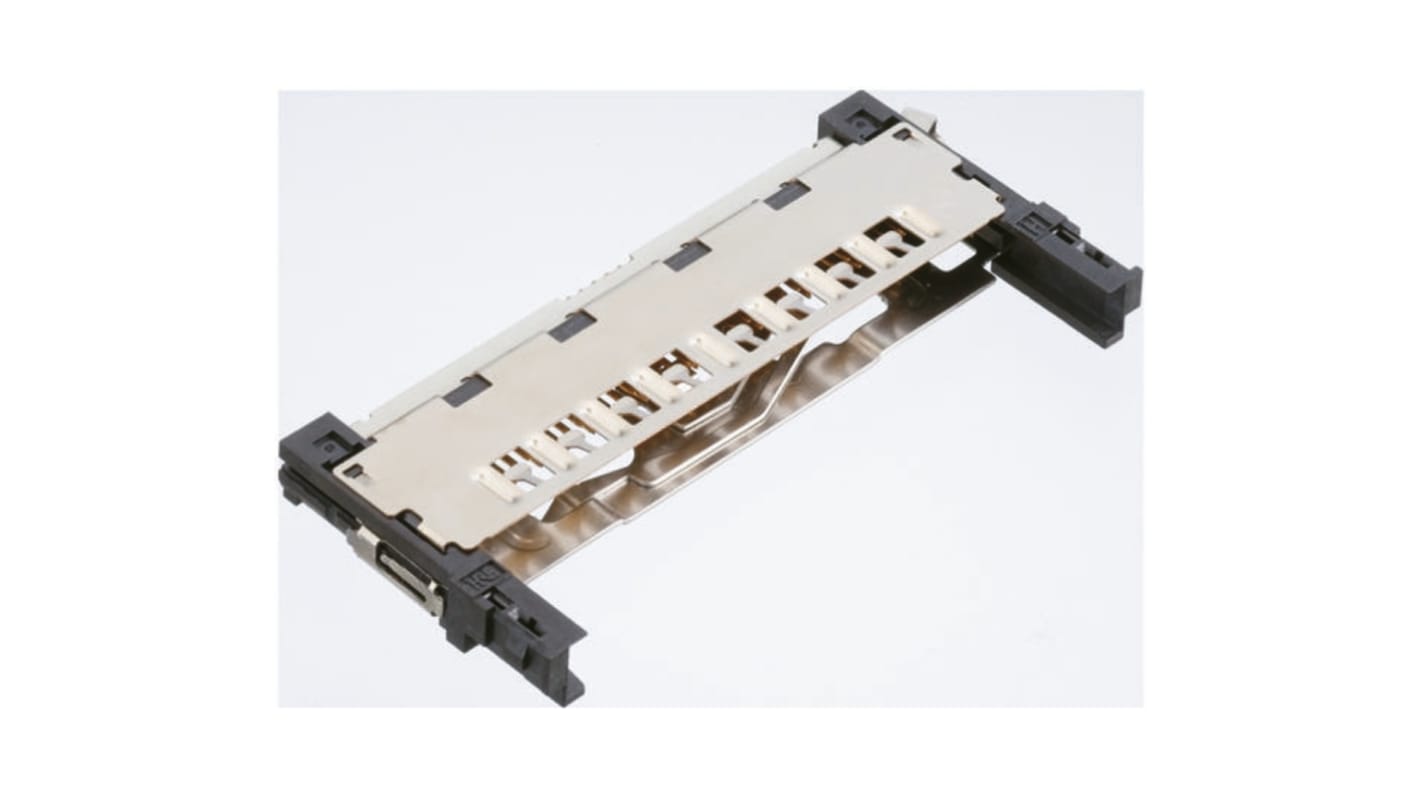

Hirose 68 Way Right Angle PCMCIA Memory Card Connector With Solder Termination
- RS Stock No.:
- 608-1522
- Mfr. Part No.:
- IC11S-PL-SF-EJR(71)
- Brand:
- Hirose
Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 608-1522
- Mfr. Part No.:
- IC11S-PL-SF-EJR(71)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Card Type | PCMCIA | |
| Gender | Male | |
| Number of Contacts | 68 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Method | Solder | |
| Housing Material | PPS | |
| Length | 59.0mm | |
| Width | 7.8mm | |
| Depth | 79.4mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -55°C | |
| Dimensions | 59 x 7.8 x 79.4mm | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Card Type PCMCIA | ||
Gender Male | ||
Number of Contacts 68 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Method Solder | ||
Housing Material PPS | ||
Length 59.0mm | ||
Width 7.8mm | ||
Depth 79.4mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -55°C | ||
Dimensions 59 x 7.8 x 79.4mm | ||
