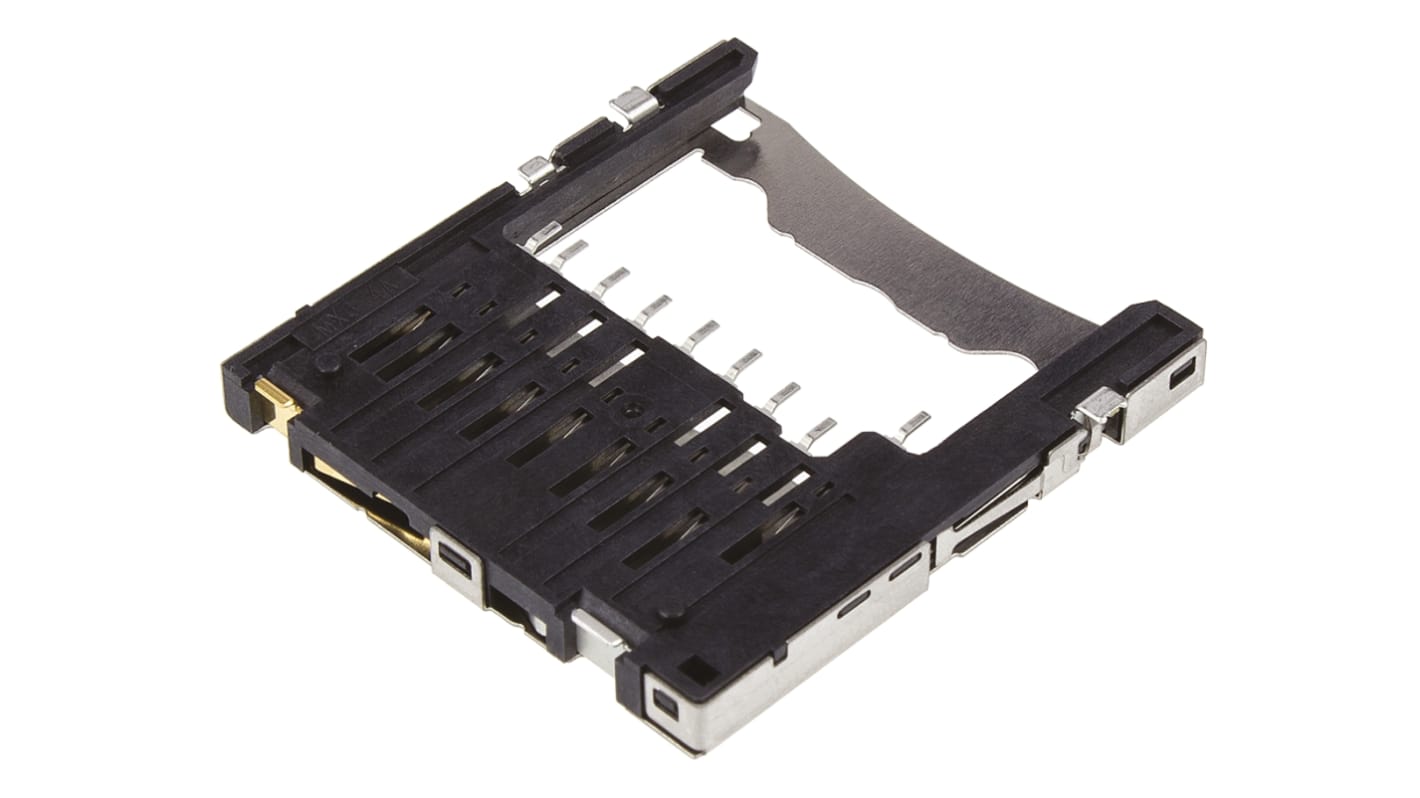

Molex, 501189 9 Way Right Angle SD Card Memory Card Connector With Solder Termination
- RS Stock No.:
- 487-9327
- Mfr. Part No.:
- 500998-0900
- Brand:
- Molex
Available to back order for despatch 23/07/2024
Added
Price Each
£5.05
(exc. VAT)
£6.06
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £5.05 |
| 25 - 74 | £4.34 |
| 75 - 199 | £3.69 |
| 200 - 399 | £3.20 |
| 400 + | £3.07 |
- RS Stock No.:
- 487-9327
- Mfr. Part No.:
- 500998-0900
- Brand:
- Molex
Technical Reference
Legislation and Compliance
Product Details
Molex Push-Push SD Memory Card Connectors - 500998 and 67600 Series
500998 and 67600 series 9 circuit SD memory card connectors with a 2.5 mm pitch and an ultra-low profile height of 2.8 mm. These SIM card sockets feature a push-push mechanism for easy insertion or removal of the SD card and a card detection switch. The housings of these SD memory card connectors are made from high temperature thermoplastic that can withstand lead-free processing. Fully shielded covers provide protection against EMI interference. Stock numbers 487-9327 and 800-6924 also feature locators for accurate mounting and alignment on the PCB
Features and Benefits
• Ultra-low profile 2.8 mm design
• Push-push mechanism for easy card insertion and removal
• Card detection switch
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• PCB locators for accurate mounting
• Push-push mechanism for easy card insertion and removal
• Card detection switch
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• PCB locators for accurate mounting
Product Application Information
These 67600 series SD memory card connectors are suitable for use in a wide range of applications including digital video cameras, digital still cameras, mobile phones, PDAs and portable audio players
Memory Card Connectors
Specifications
Attribute | Value |
|---|---|
| Card Type | SD Card |
| Gender | Female |
| Number of Contacts | 9 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Polymer |
| Length | 28.9mm |
| Width | 3.1mm |
| Depth | 29.8mm |
| Maximum Operating Temperature | +90°C |
| Series | SD CARD |
| Dimensions | 28.9 x 3.1 x 29.8mm |
| Series Number | 501189 |
| Minimum Operating Temperature | -25°C |
- RS Stock No.:
- 487-9327
- Mfr. Part No.:
- 500998-0900
- Brand:
- Molex
