Wurth Elektronik 8 Way Micro Memory Card Connector With Solder Termination
- RS Stock No.:
- 162-1816
- Mfr. Part No.:
- 693022010811
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 reel of 1000 units)*
£930.00
(exc. VAT)
£1,120.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 4000 | £0.93 | £930.00 |
| 5000 - 9000 | £0.883 | £883.00 |
| 10000 - 14000 | £0.839 | £839.00 |
| 15000 - 19000 | £0.797 | £797.00 |
| 20000 + | £0.758 | £758.00 |
*price indicative
- RS Stock No.:
- 162-1816
- Mfr. Part No.:
- 693022010811
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Card Type | Micro SIM | |
| Gender | Female | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Mounting Type | Surface Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Method | Solder | |
| Housing Material | Stainless Steel | |
| Length | 15.4mm | |
| Width | 16.3mm | |
| Depth | 1.95mm | |
| Dimensions | 15.4 x 16.3 x 1.95mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Card Type Micro SIM | ||
Gender Female | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Method Solder | ||
Housing Material Stainless Steel | ||
Length 15.4mm | ||
Width 16.3mm | ||
Depth 1.95mm | ||
Dimensions 15.4 x 16.3 x 1.95mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||

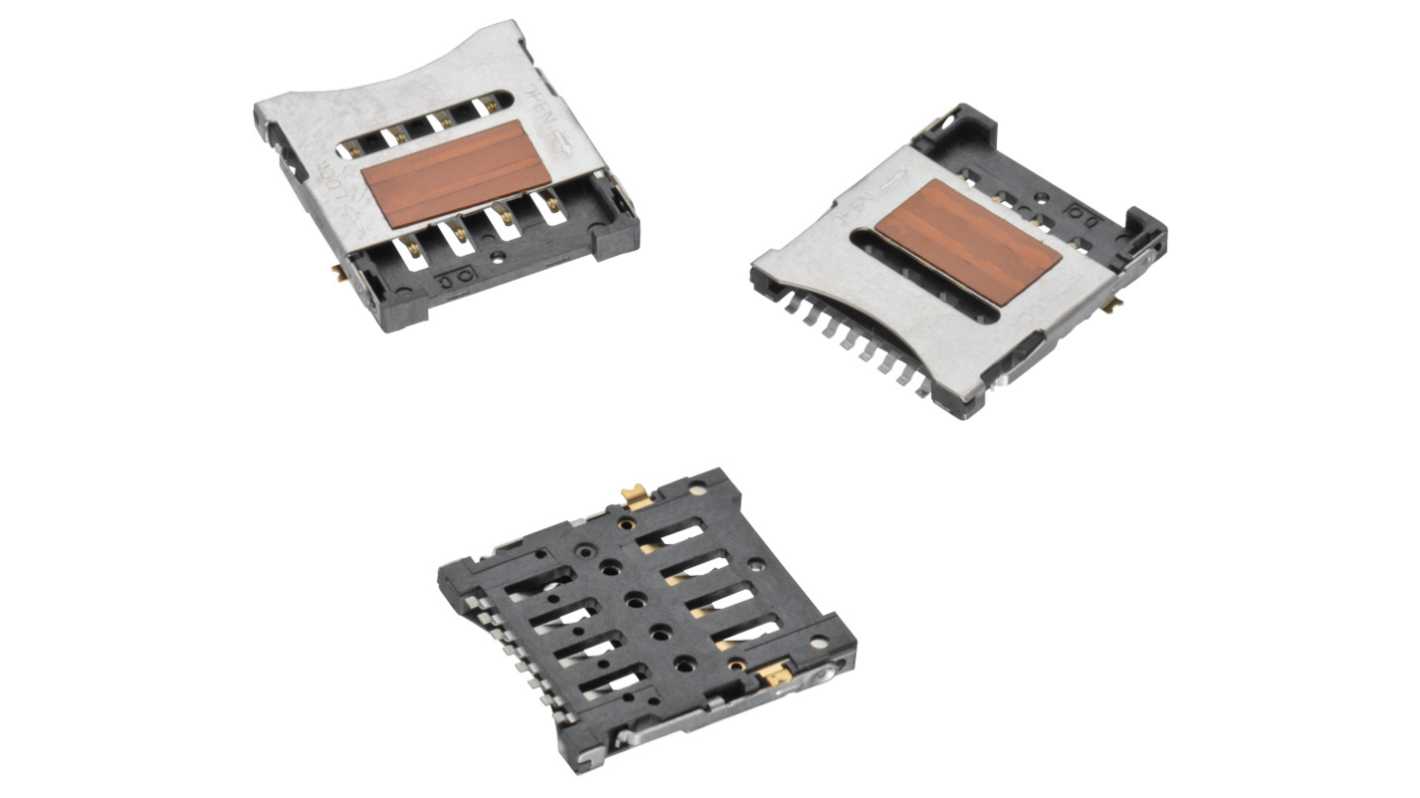

The Wurth Elektronik WR-CRD is a SMT mount, hinge type socket micro SIM card connector with 8 pins and copper alloy contact material selective gold contact plating.
RoHS compliant
Halogen free
Operating temperature ranging between -25°C up to +85°C
2 500 mating cycles
Withstanding voltage 500 V (AC)
Halogen free
Operating temperature ranging between -25°C up to +85°C
2 500 mating cycles
Withstanding voltage 500 V (AC)
