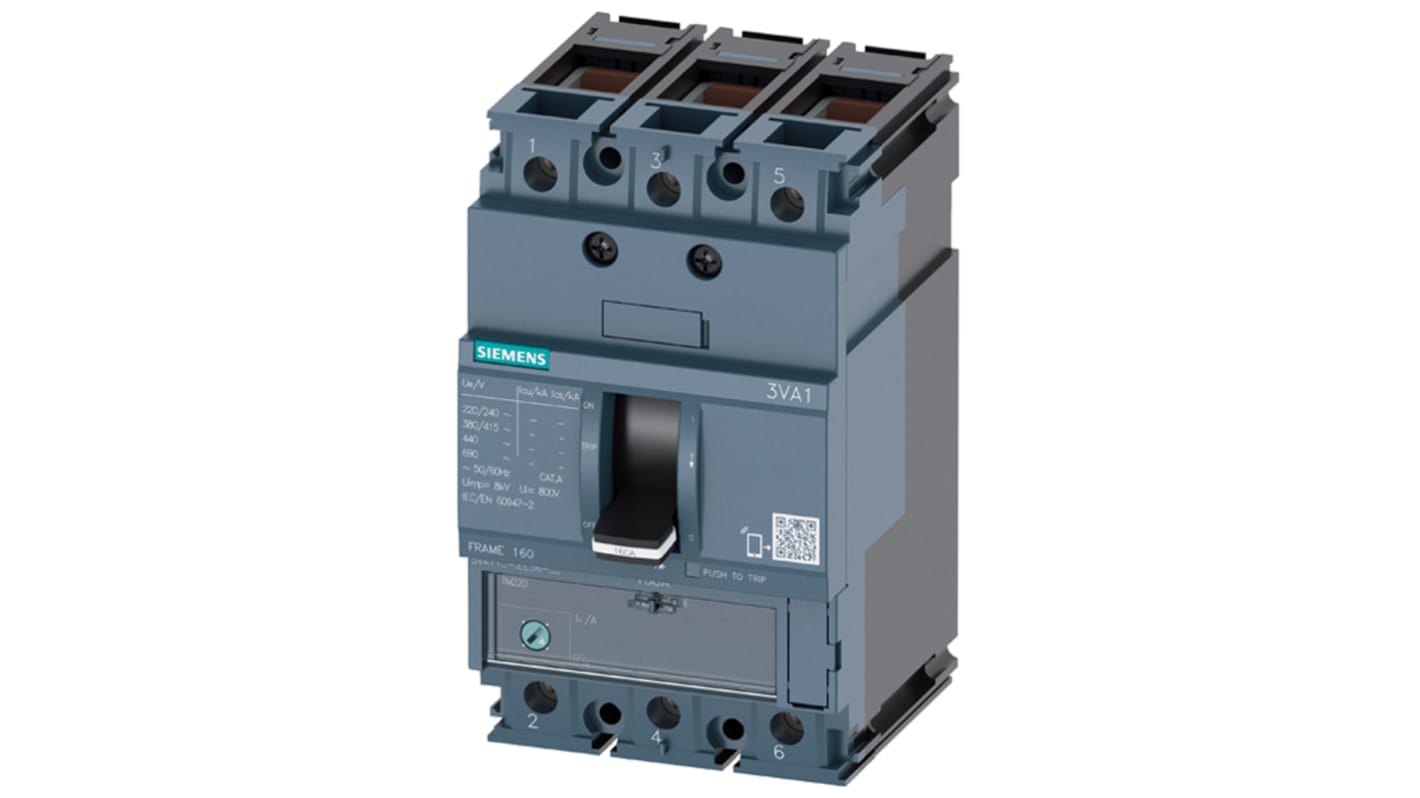

Siemens, Sentron MCCB Molded Case Circuit Breaker 25 A, Breaking Capacity 36 kA, Fixed Mount
- RS Stock No.:
- 874-4253
- Mfr. Part No.:
- 3VA1125-4EE36-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£183.23
(exc. VAT)
£219.88
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £183.23 |
*price indicative
- RS Stock No.:
- 874-4253
- Mfr. Part No.:
- 3VA1125-4EE36-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | Sentron | |
| Series | 3VA | |
| Number of Poles | 3 | |
| Current Rating | 25A | |
| Breaking Capacity at Maximum Voltage Rating | 36 kA | |
| Rated AC Voltage | 690V | |
| Rated DC Voltage | 500V | |
| Length | 76.2mm | |
| Width | 130mm | |
| Depth | 88mm | |
| Circuit Breaker Type | MCCB | |
| Reset Actuator Type | Toggle Switch | |
| Mounting Hole Diameter | 4.2mm | |
| Break Time | Instantaneous | |
| Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Range Sentron | ||
Series 3VA | ||
Number of Poles 3 | ||
Current Rating 25A | ||
Breaking Capacity at Maximum Voltage Rating 36 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Length 76.2mm | ||
Width 130mm | ||
Depth 88mm | ||
Circuit Breaker Type MCCB | ||
Reset Actuator Type Toggle Switch | ||
Mounting Hole Diameter 4.2mm | ||
Break Time Instantaneous | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- CZ
Siemens 3VA1 MCCBs
The new 3VA1 molded case circuit breakers reliably perform all the tasks associated with line protection.
The devices of the 3VA1 series fulfill all standard tasks in line protection, thanks to their particularly compact design, 3VA1 MCCBs are the perfect choice for applications in distribution boards and machine engineering.
They are easily mounted as fixed or plug-in versions.
The basic trigger for overload or short-circuit protection is a thermal-magnetic, electronic trip unit (TMTU) and is suitable for use in three-phase, AC, and DC networks.
The devices of the 3VA1 series fulfill all standard tasks in line protection, thanks to their particularly compact design, 3VA1 MCCBs are the perfect choice for applications in distribution boards and machine engineering.
They are easily mounted as fixed or plug-in versions.
The basic trigger for overload or short-circuit protection is a thermal-magnetic, electronic trip unit (TMTU) and is suitable for use in three-phase, AC, and DC networks.
Compact design
Thermal-magnetic trip units
AC/DC applications
No derating up to +50 °C
Thermal-magnetic trip units
AC/DC applications
No derating up to +50 °C
Siemens 3VA MCCBs and accessories
