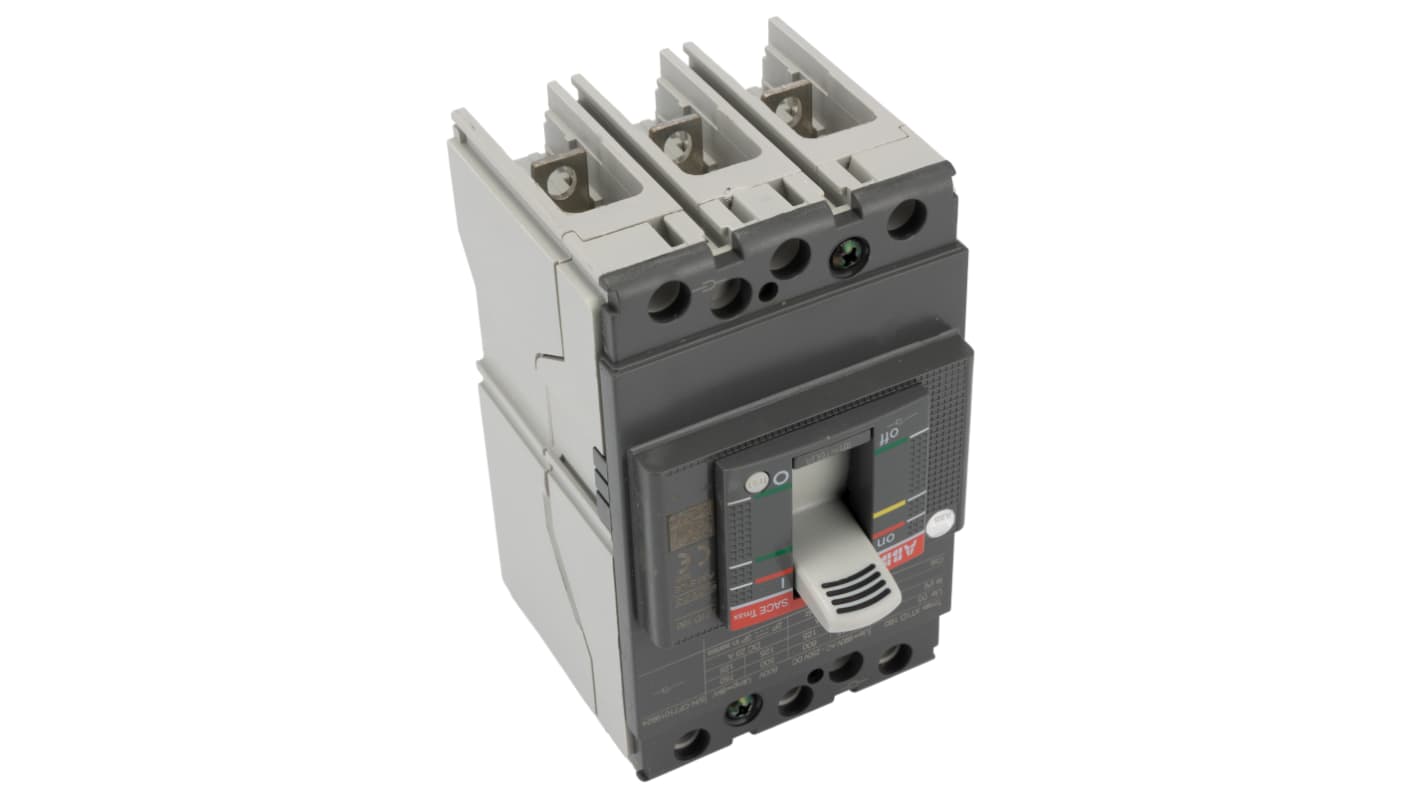

ABB, Protecta MCCB 3P 250A, Breaking Capacity 36 kA, DIN Rail Mount
- RS Stock No.:
- 831-9181
- Mfr. Part No.:
- 1SDA068208R1 XT1D 160 3p F F
- Brand:
- ABB
Subtotal (1 unit)*
£302.92
(exc. VAT)
£363.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £302.92 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 831-9181
- Mfr. Part No.:
- 1SDA068208R1 XT1D 160 3p F F
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | Protecta | |
| Series | XT1D | |
| Number of Poles | 3 | |
| Current Rating | 250A | |
| Breaking Capacity at Maximum Voltage Rating | 36 kA | |
| Rated AC Voltage | 690V | |
| Rated DC Voltage | 500V | |
| Mounting Style | DIN Rail Mount | |
| Length | 76.2mm | |
| Width | 130mm | |
| Depth | 70mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for disassembly | |
Select all | ||
|---|---|---|
Brand ABB | ||
Range Protecta | ||
Series XT1D | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity at Maximum Voltage Rating 36 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Mounting Style DIN Rail Mount | ||
Length 76.2mm | ||
Width 130mm | ||
Depth 70mm | ||
Better World Product Yes | ||
Better World Claim Designed for disassembly | ||
ABB XT1D Series MCCB, 160A Current Rating, 36 kA Breaking Capacity - 1SDA068208R1 XT1D 160 3p F F
This MCCB is a robust solution designed for reliable circuit protection in industrial settings. Featuring a 3 pole configuration and a current rating of 160A, this circuit breaker is capable of handling significant electrical loads. Optimised for DIN rail mounting, it offers compact dimensions of 70mm in length, 76.2mm in width, and 70mm in depth, making it suitable for varied installation requirements.
Features & Benefits
• High breaking capacity of 36 kA for efficient fault protection
• Rated for 690V AC and 500V DC applications
• Toggle switch reset actuator for easy operation
• Type D tripping characteristic protects against overloads
• Bolted terminal connections ensure reliable electrical contact
• Designed for seamless integration on DIN rail systems
• Rated for 690V AC and 500V DC applications
• Toggle switch reset actuator for easy operation
• Type D tripping characteristic protects against overloads
• Bolted terminal connections ensure reliable electrical contact
• Designed for seamless integration on DIN rail systems
Applications
• Used for power distribution in commercial facilities
• Ideal for motor control in industrial environments
• Employed in automated systems for added safety
• Suitable for use in machinery requiring high load protection
• Ideal for motor control in industrial environments
• Employed in automated systems for added safety
• Suitable for use in machinery requiring high load protection
What is the significance of the high breaking capacity?
The high breaking capacity of 36 kA allows the breaker to safely interrupt fault currents, protecting both equipment and wiring from damage during electrical faults.
How does the toggle switch reset actuator improve usability?
The toggle switch provides a straightforward method for resetting the circuit breaker after a trip, making it user-friendly and efficient for operational settings.
In what scenarios is a Type D tripping characteristic beneficial?
A Type D tripping characteristic is advantageous in applications with high starting currents, such as motors, as it minimises nuisance tripping while still offering overload protection.
What benefits does bolted terminal contact provide?
Bolted terminal contacts ensure a strong and secure connection, reducing the risk of loose connections and enhancing overall electrical performance.
