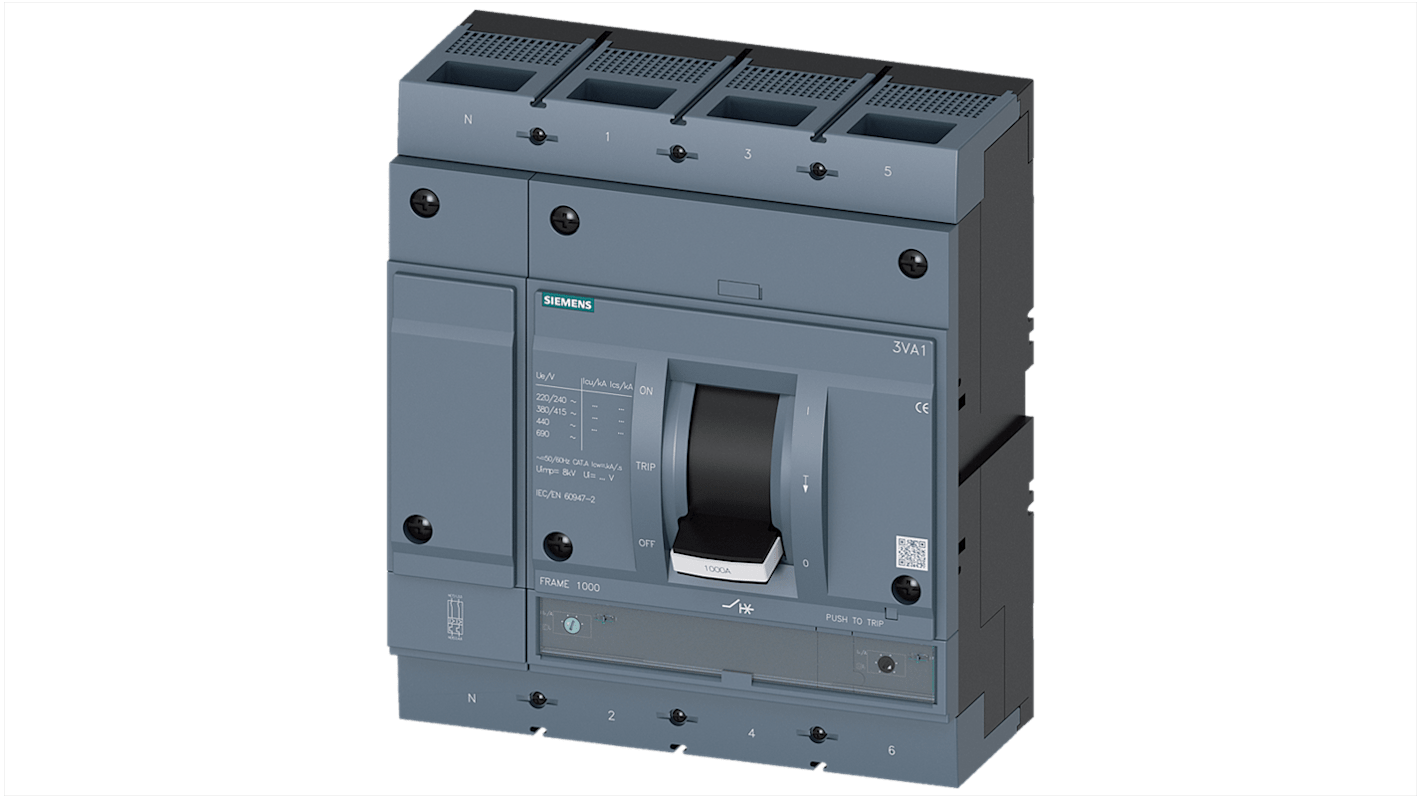

Siemens, SENTRON, 3VA1 Molded Case Circuit Breaker 4-Pole 630 A, Breaking Capacity 55 kA, DIN Rail
- RS Stock No.:
- 272-0171
- Mfr. Part No.:
- 3VA1563-5EF42-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£2,048.69
(exc. VAT)
£2,458.43
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,048.69 |
*price indicative
- RS Stock No.:
- 272-0171
- Mfr. Part No.:
- 3VA1563-5EF42-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Molded Case Circuit Breaker | |
| Range | SENTRON | |
| Series | 3VA1 | |
| Number of Poles | 4 | |
| Current Rating | 630 A | |
| Breaking Capacity | 55kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | DIN Rail | |
| Rated DC Voltage | 1000 V dc | |
| Terminal Type | Screw | |
| Standards/Approvals | No | |
| Depth | 120mm | |
| Height | 320mm | |
| Width | 280 mm | |
| Tripping Characteristics | Type I, Type L | |
| Tripping Mechanism | TM240 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Molded Case Circuit Breaker | ||
Range SENTRON | ||
Series 3VA1 | ||
Number of Poles 4 | ||
Current Rating 630 A | ||
Breaking Capacity 55kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type DIN Rail | ||
Rated DC Voltage 1000 V dc | ||
Terminal Type Screw | ||
Standards/Approvals No | ||
Depth 120mm | ||
Height 320mm | ||
Width 280 mm | ||
Tripping Characteristics Type I, Type L | ||
Tripping Mechanism TM240 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
The Siemens low voltage 3VA IEC frame 1000 breaking capacity moulded case circuit breaker with thermal magnetic trip unit. It has box terminal on both sides and front terminal arrangement of electrical connectors.
Without ground-fault monitoring
Line protection
IP40 Protection class
