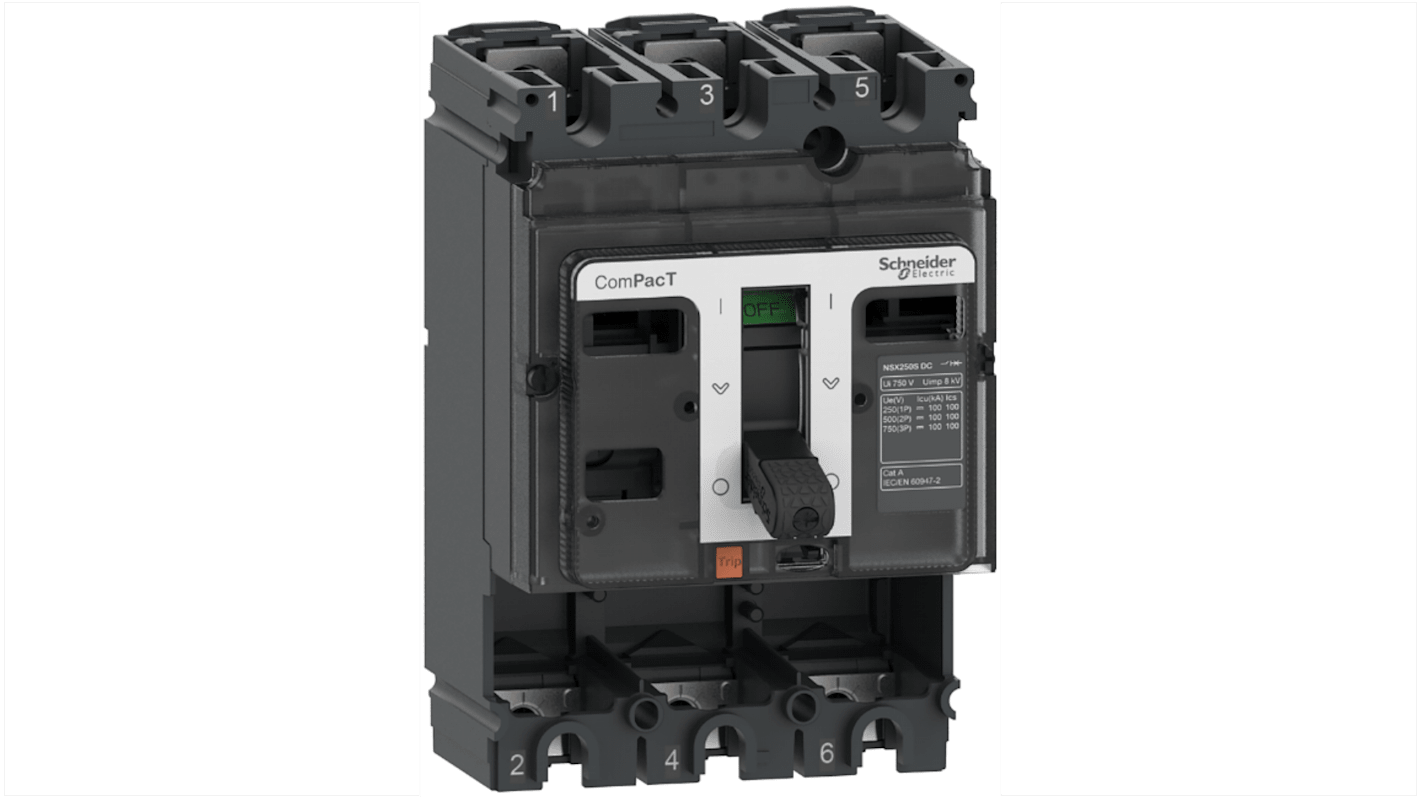

Schneider Electric, ComPact, NSX Molded Case Circuit Breaker 3-Pole 100 A, Breaking Capacity 36 kA
- RS Stock No.:
- 260-9422
- Mfr. Part No.:
- C10F3D
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£234.34
(exc. VAT)
£281.21
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £234.34 |
*price indicative
- RS Stock No.:
- 260-9422
- Mfr. Part No.:
- C10F3D
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | NSX | |
| Number of Poles | 3 | |
| Current Rating | 100 A | |
| Breaking Capacity | 36kA | |
| Rated DC Voltage | 750 V dc | |
| Terminal Type | Front Connected | |
| Standards/Approvals | IEC 60947-2 | |
| Width | 105 mm | |
| Height | 161mm | |
| Depth | 86mm | |
| Break Time | 10 ms | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series NSX | ||
Number of Poles 3 | ||
Current Rating 100 A | ||
Breaking Capacity 36kA | ||
Rated DC Voltage 750 V dc | ||
Terminal Type Front Connected | ||
Standards/Approvals IEC 60947-2 | ||
Width 105 mm | ||
Height 161mm | ||
Depth 86mm | ||
Break Time 10 ms | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- PL
The Schneider Electric Circuit breaker basic frame is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit. It can be equipped with a variety of optional functions and accessories.
Experience easier installation thanks to a new ergonomic front-plate design
Gain the confidence that all auxiliaries are on the right spot
Ergonomic new toggle for easier breaker manual operation
